Feature:
- Universal AC input, 110V/220V is selectable by switch
- Protection types: Short circuit / Overload / Over voltage
- Auto-recovery after protection
- Forced air cooling by built-in DC fan
- PWM control and regulation
- 100% full load burn-in test
- Design with Built-in EMI Filter
- LED indication for power on
- Lower Power consumption, Lower Temperature, High efficiency, High reliability
Specification:

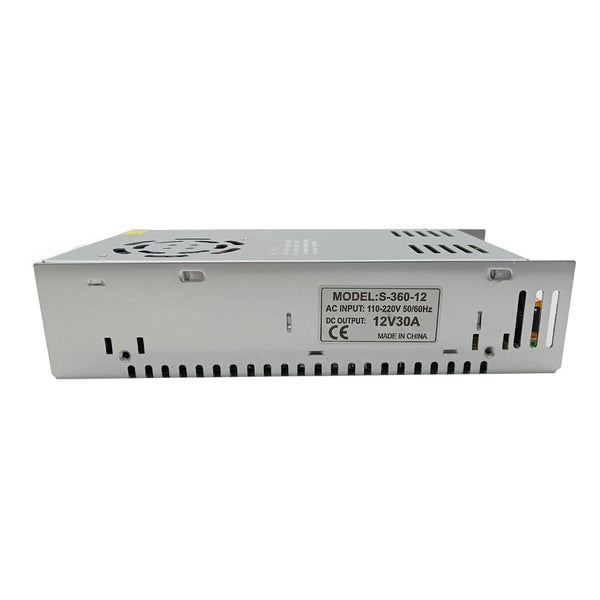

- Model NO.: 0010129
- Size: 215mm x 115mm x 50mm
- Input: AC 100~120V or 175~245V
- Frequency range: 47~63Hz
- Output: DC 12V
- Voltage adjustment range: ±10%
- Rated current: 30A
- Rated power: 360W
- Overload: 110~150% rated output power
- Over voltage: 13.8~16.2V
- Working temperature: -10°C ~ +60°C
