Fixed mounting bracket for electric linear actuator.
Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.
This mounting bracket can be installed on waterproof linear actuator J or high speed high speed linear actuator D .
Iron material.
Includes a bracket, a wedge, a needle.

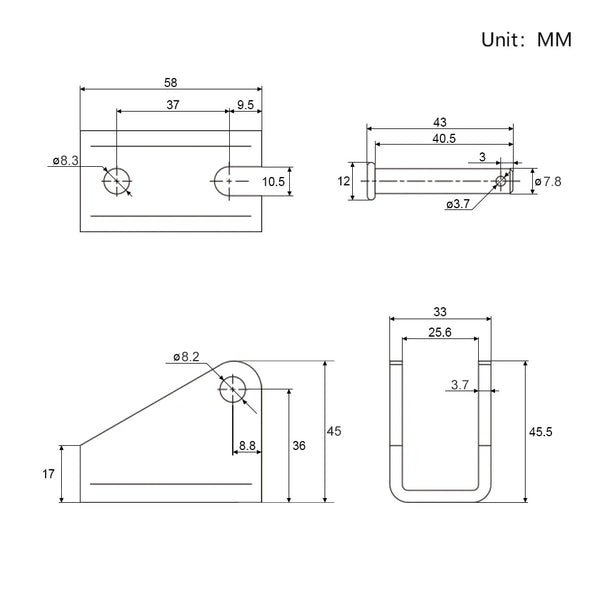

Thickness: 3.7mm [0.146 in]
Diameter of the wedge hole: 8.2mm [0.323 in]
Diameter of the wedge: 7.8mm [0.307 in]
Diameter of the mounting hole: 8.3mm [0.327 in]
Spacing: 25.6mm [1.008 in]
Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.
This mounting bracket can be installed on waterproof linear actuator J or high speed high speed linear actuator D .
Iron material.
Includes a bracket, a wedge, a needle.
Thickness: 3.7mm [0.146 in]
Diameter of the wedge hole: 8.2mm [0.323 in]
Diameter of the wedge: 7.8mm [0.307 in]
Diameter of the mounting hole: 8.3mm [0.327 in]
Spacing: 25.6mm [1.008 in]
