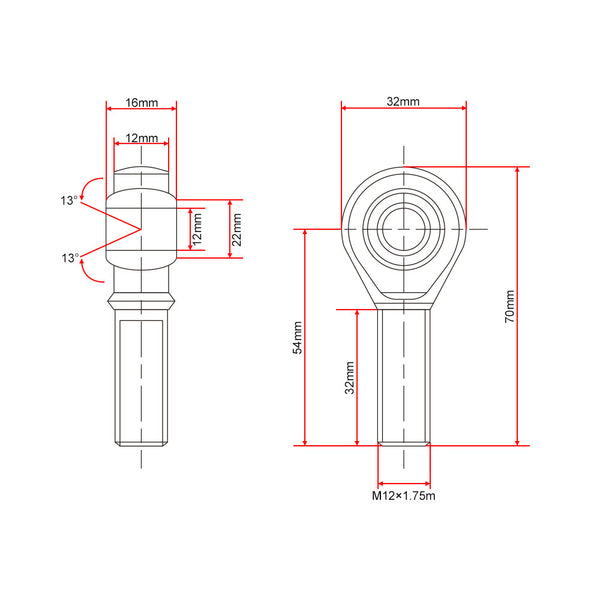

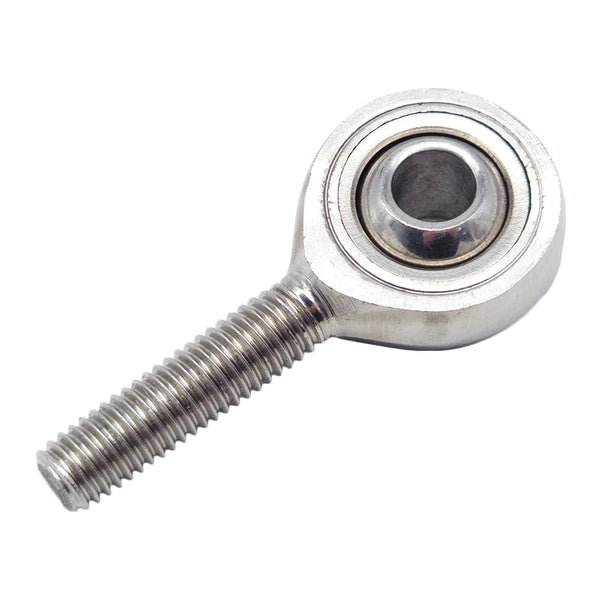

The fisheye connector for linear actuators allows the linear actuator to rotate freely in multiple directions to adapt to the different angles and movements required by the application. The fisheye connector can be customized in 5 different sizes: M8*1.25, M10*1.5, M12*1.75, M14*2 and M16*2, and needs to be used with an internal thread connector.
M8*1.25, M10*1.5 and M12*1.75 size fisheye connectors are suitable for linear actuators A/B/J.
M12*1.75, M14*2 and M16*2 size fisheye connectors are suitable for linear actuators C/F.
Hexagonal nut material: 316 Stainless steel
Fisheye connector material: 304 Stainless steel
