Features:
Application: It can be used in rolling blinds, rolling doors, projection screens, awnings, pumps, winches, conveyors or other appliances and with DC motors, it can remote control DC motor rotates in the positive or reversal direction.
Wireless control, easy to install.
You can rotate a motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance.
The RF wireless signal can pass through walls, floors doors.

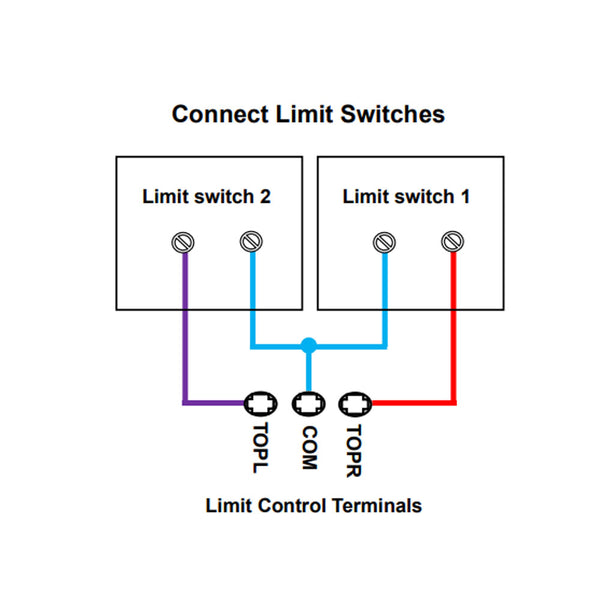

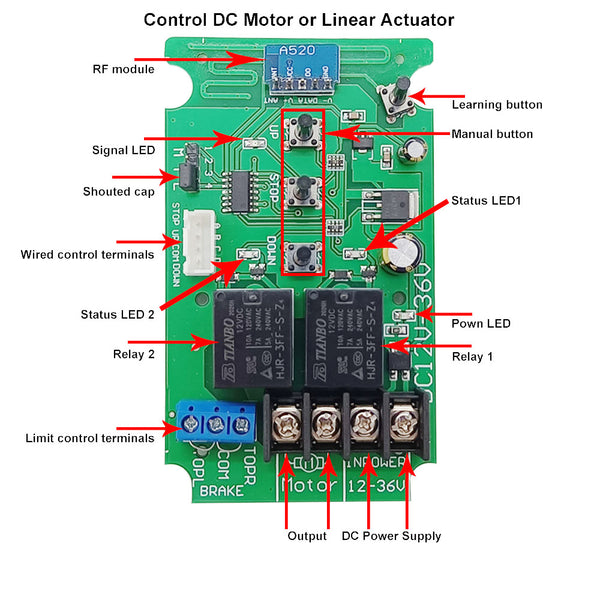

With limit control terminals: You can connect limit switches or sensors to stop the motor.

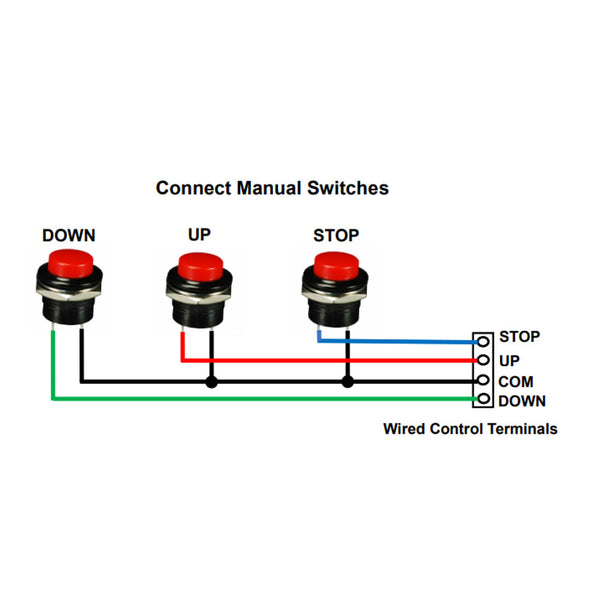

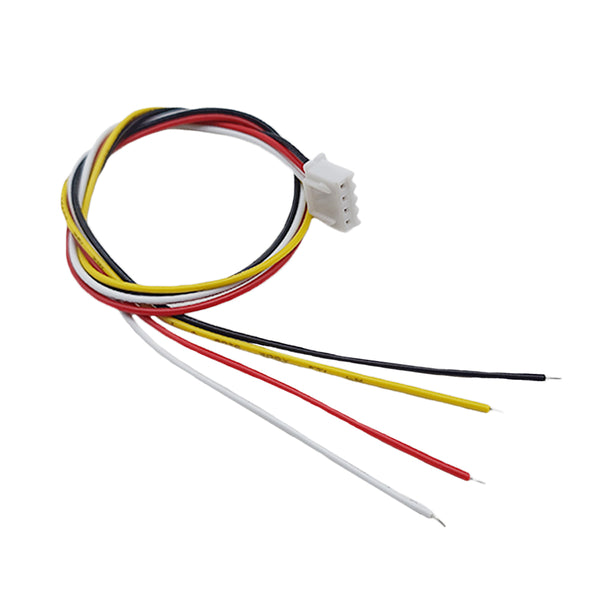

With wired control terminals: You can connect manual switches to control the motor.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
With reverse power protection and protection.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

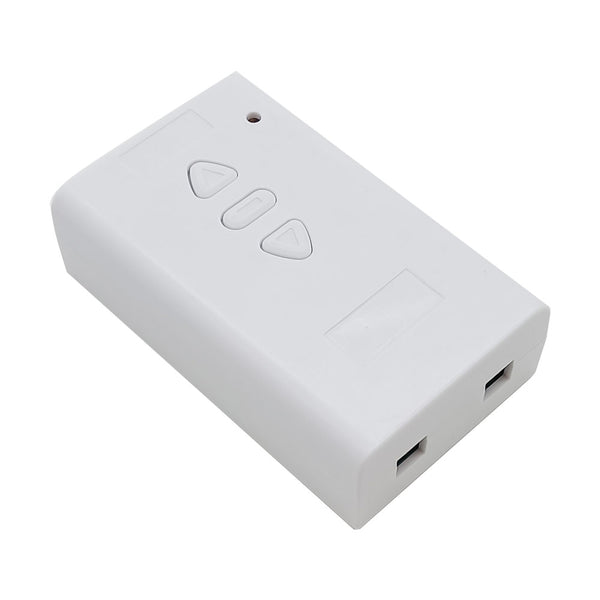

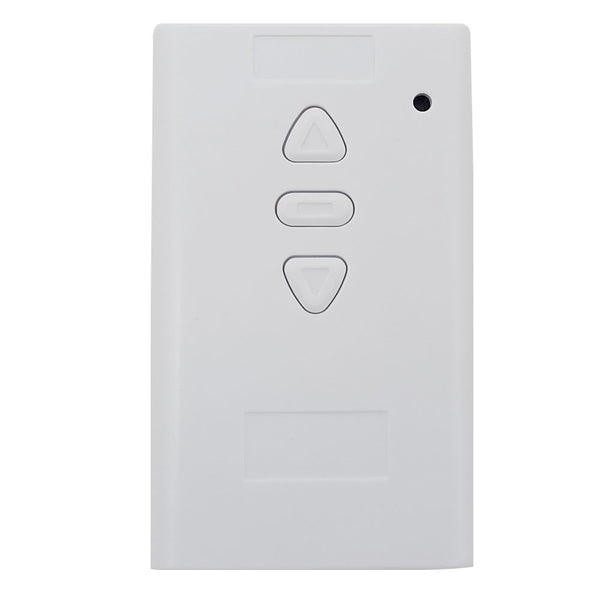

Receiver Parameters:
Model No: S1FM-DC
Control Modes: Momentary
Power Supply (Operating Voltage): DC12V~36V
Output: DC12V~36V
Working Frequency: 433MHz
Channel: 1 CH, can work with 1 DC motor
Static Current: ≤6mA
Maximum Working Current: 10A/each channel, so motor's maximum starting current exceed 10A.

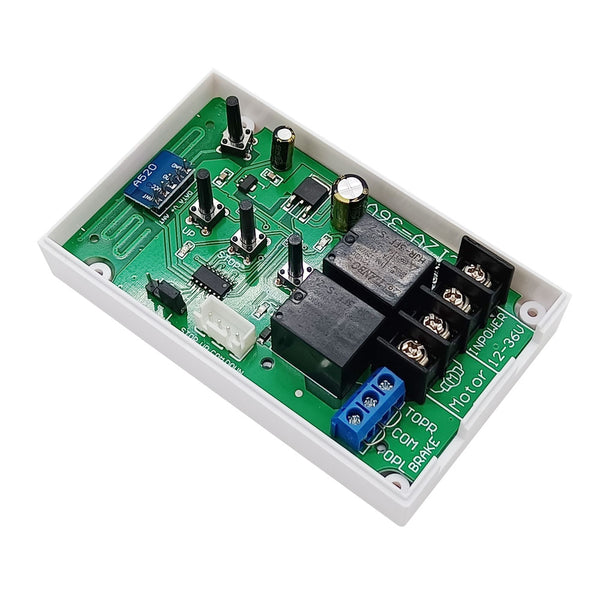

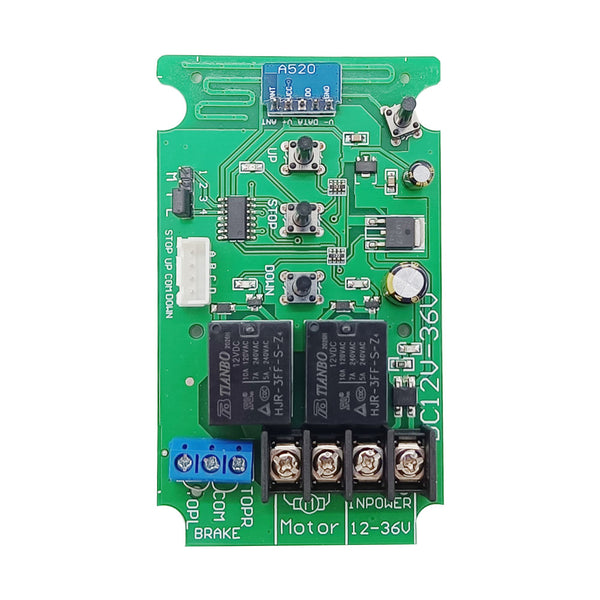

PCB Size: 94mm x 56mm x 24mm

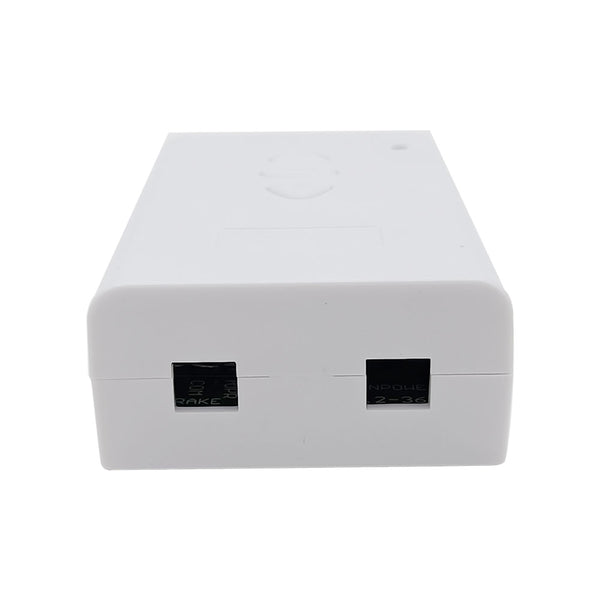

Case Size: 100mm x 60.5mm x 30mm
Working Range:
With a transmitter (such as CV-2-2) to form a complete set, the maximum working distance can reach 500M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.

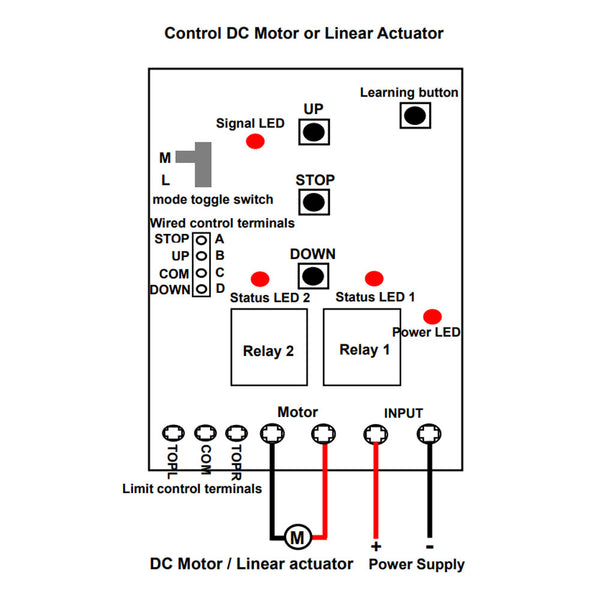

Usage (with transmitter CV-2-2):
Connect the positive pole of DC power supply to terminal “+” of INPUT, and connect the negative pole of DC power supply to terminal “-” of INPUT.
Connect terminals “Motor” to linear Actuator.
Press and hold the ▲ on the transmitter: linear actuator extends outward; Release the button, linear actuator stops.
Press and hold the ▼ on the transmitter: linear actuator retracts inward; Release the button, linear actuator stops.
Package Include:
1 x Receiver: S1FM-DC
1 x User manual
