0.4 Inch 10MM 12V 24V Electric Linear Actuator With Built-in Potentiometer Max Thrust 2000N (Model 0041660)

Regular price $90.00

Shipping calculated at checkout.



Product Operation Demonstration Video:

Vertical Linear Actuator Mounting Flat Base;                                         Pair Potentiometer to Linear Actuator

Use Sliding Potentiometer to Control Linear Actuator' Stroke ;           Use Rotary Potentiometer to Control Linear Actuator' Stroke

Remote Control Linear Actuator ;                                                             Pair Remote with Receiver to Remote Linear Actuator

Wireless Control Linear Actuator Speed ;                                               Linear Actuator Limit Switch Wiring


How to choose the suitable linear actuator based on the weight of the trapdoor?
Please click here: https://www.electric-linear-actuators.com/blogs/news-1/how-to-choose-the-suitable-linear-actuator-based-on-the-weight-of-the-trapdoor
If you don't know how to calculate it, please contact us for help.


Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Introduction:
This linear actuator has a built-in potentiometer with three output wires connected. When the linear actuator moves, the resistance value between the output lines changes accordingly. In this way, we can obtain the corresponding movement position of the linear actuator by measuring the resistance value.

Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments.
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs.
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1500 mm
We can customize any stroke length from 10mm to 1500mm, such as 380mm, 750mm, 1250mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
With a built-in potentiometer
Automatically lock after stopping, and no power supply is required.
Maintenance-free

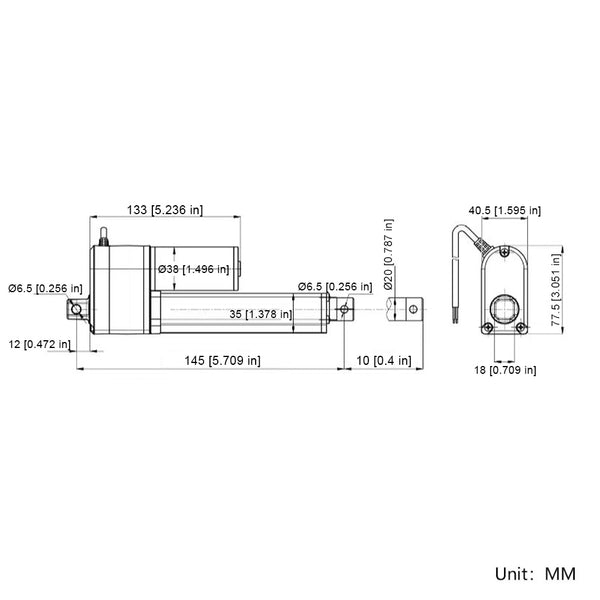

Specifications:
Optional working voltage: Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the most commonly used working voltage.
Stroke range: 0.4 inches or 10 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use 12V/6A or 24V/3A power supply to power the linear actuator.
Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization.
Built-in potentiometer: 10K ohms (You can specify other resistance values)
Duty cycle: 20%, max 5mins continuous use
Service life: approx. 25,000 cycles
Power cable: Five-core Cable (Two power wires and three potentiometer output wires)
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65

Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.
3. Compatible Mounting Brackets: Bracket A and Bracket C .
4. You can also buy a fixed mounting flat base model 00430 70 , a head fixed mounting flat plate bracket model 0043071 or a bottom fixed mounting flat plate bracket model 0043072 for vertical mounting linear actuator.

Operation:
The electric linear actuator has a five-core cable.

1. The red and black lines are two power lines of the electric linear actuator.
Connect the DC power supply to two power wires of the electric linear actuator. When linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.

2. The white, blue and yellow wires are three output wires of the potentiometer.
The blue and yellow wires are connected to two terminals of the potentiometer, it is a fixed resistance value.

When the linear actuator moves, the resistance value between white wire and yellow wire or white wire and blue wire changes accordingly. In this way, we can obtain the corresponding movement position of the linear actuator by measuring the resistance value. When the linear actuator is extended outwards, the resistance value between white and blue wires will decrease accordingly, and the resistance value between white and yellow wires will increase accordingly. When the linear actuator is retracted inward, the resistance value between white and blue wires will increase accordingly, and the resistance value between white and yellow wires will decrease accordingly.

For example, a linear actuator with a stroke of 200mm and a built-in potentiometer of 10K ohms.
When the linear actuator is fully retracted, the resistance value between white wire and yellow wire is 0.8K ohms, and the resistance value between white wire and blue wire is 9.2K ohms.
When the linear actuator is extended to the 100mm position, the resistance value between white wire and yellow wire is 4.5K ohms, and the resistance value between white wire and blue wire is 5.5K ohms.
When the linear actuator is fully extended, the resistance value between white wire and yellow wire is 9.1K ohms, and the resistance value between white wire and blue wire is 0.8K ohms.

Note:
1.If you want to operate the linear actuator by a potentiometer, please click here to purchase a slide controller with potentiometer.
2. If you need a power supply to power linear actuator, please click here to purchase.
3. If you want to use external limit switches to stop linear actuator at any position, please click here to purchase. How to connect limit switch? Please watch the connection video.
4. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.

Different no-load speeds and corresponding maximum thrust:

No-load Speed Full load Speed Maximum Thrust Self-locking Force
5mm/s 2.5mm/s 2000N / 200 kg / 450 lbs 2200N / 220 kg / 490 lbs
10mm/s 5mm/s 1000N / 100 kg / 200 lbs 1100N / 110 kg / 250 lbs
15mm/s 7.5mm/s 800N / 80 kg / 180 lbs 900N / 90 kg / 200 lbs
20mm/s 10mm/s 700N / 70 kg / 160 lbs 800N / 80 kg / 180 lbs
30mm/s 15mm/s 500N / 50 kg / 110 lbs 600N / 60 kg / 130 lbs
50mm/s 25mm/s 300N / 30 kg / 60 lbs 350N / 35 kg / 80 lbs
100mm/s 50mm/s 150N / 15 kg / 30 lbs 100N / 10 kg / 20 lbs
160mm/s 80mm/s 100N / 10 kg / 20 lbs 50N / 5 kg / 10 lbs


Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
