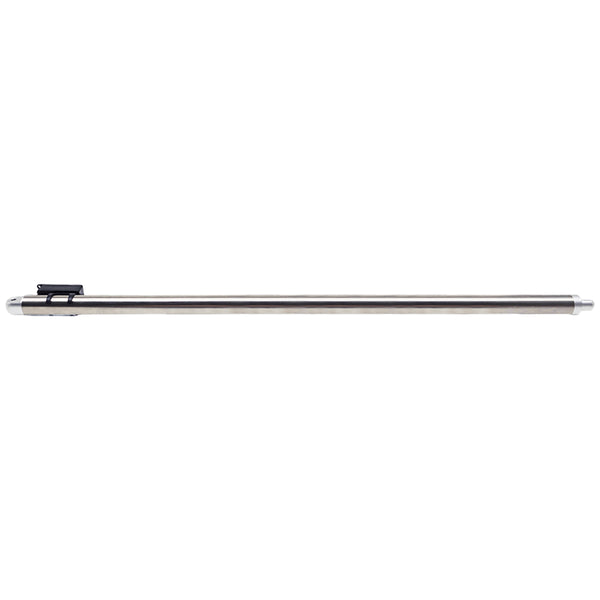

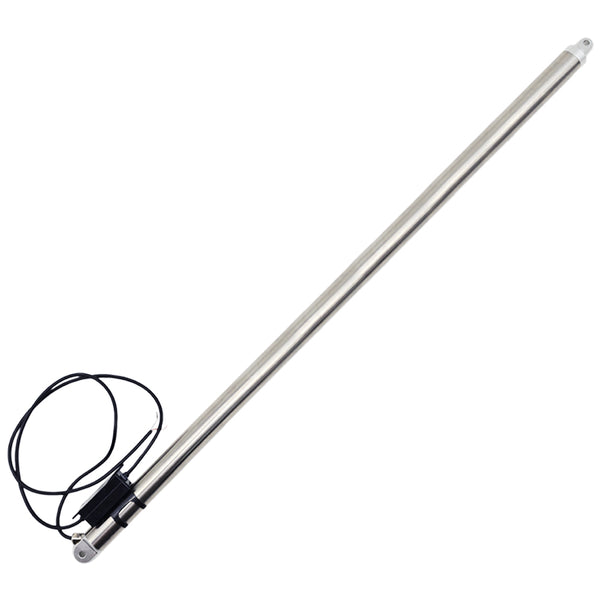

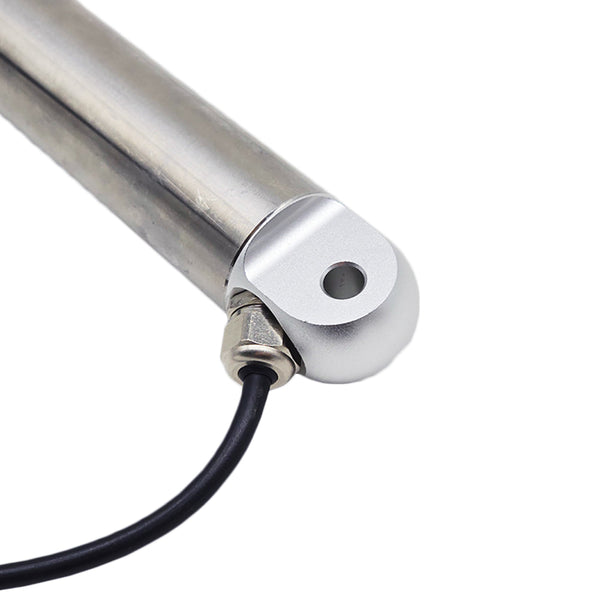

This stainless steel tubular electric linear actuator, with a 400mm stroke, supports 12V or 24V DC input and a maximum thrust of 800N / 80kg / 180lbs. Its compact tubular design makes it suitable for applications in home automation, machinery, automotive, and manufacturing.
It is widely used in doors, cabinet doors, windows, cellars, trapdoors, hatchways, solar tracking systems, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices. It can also replace hydraulic and pneumatic products to save power consumption.
Key Features:
- High-quality products and high-quality services
- Metal housing, able to work in very harsh environments
- Metal gearbox, high strength wear-resistant gear
- Stainless steel telescopic tube and outer tube, good corrosion resistant
- Strong thrust, up to 800N / 80 Kgs / 180 lbs at 5mm/s
- Multiple speed options, from 5 mm/second to 36 mm/second
- Multiple stroke options, from 30 mm to 900 mm (We can customize any stroke length from 30mm to 900mm, such as 380mm, 750mm, 860mm and so on.)
- Advanced waterproof and dustproof technology
- Low power consumption and low noise
- Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2, 4 or more linear actuators fully synchronously.

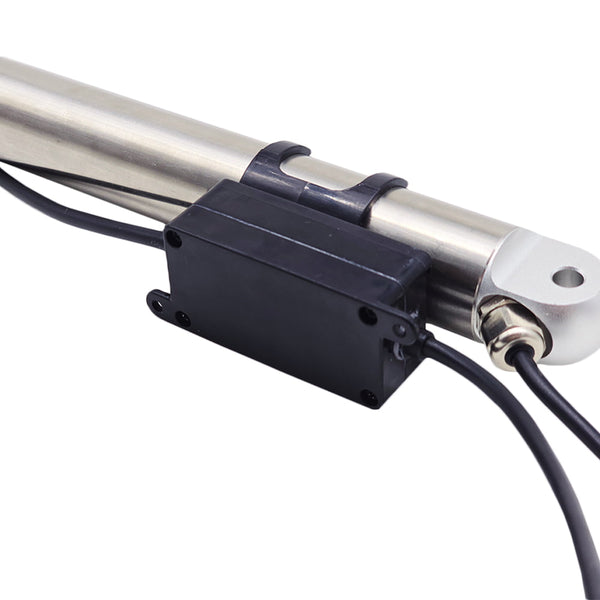

- External overcurrent protection, linear actuator will automatically stop when stroke rod reaches the limit position.
- With auto-locking capability to hold load position after stopping, and no power supply is required.
- Maintenance-free
Operation:
When the red power wire is connected to the positive pole of the DC power supply and the black power wire is connected to the negative pole of the DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.

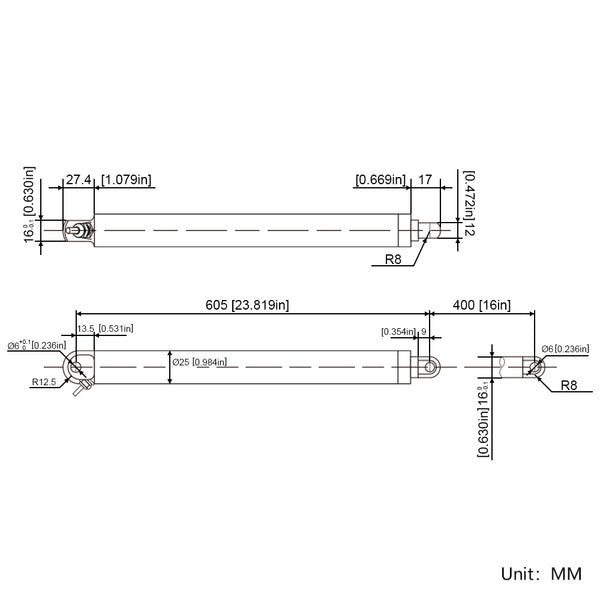

Stroke and Length (Model 0041969)
| Parameter | Value |
|---|---|
| Stroke | 400mm |
| Retraction Length | 605mm (center distance between two mounting holes when the linear actuator is fully retracted) |

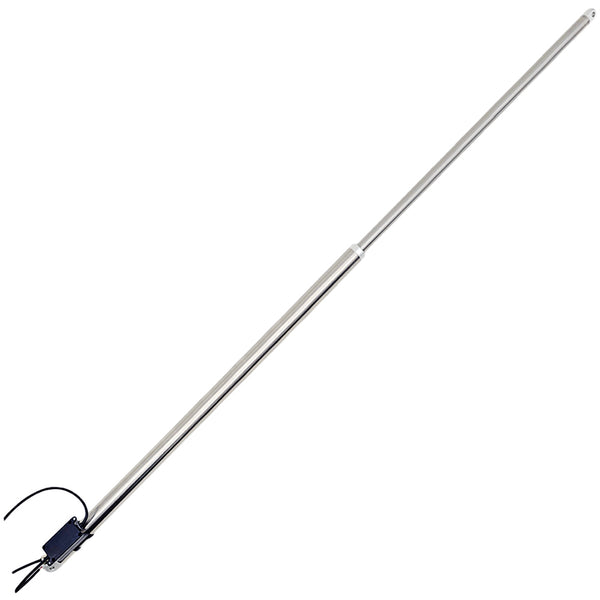

| Extension Length | 1005mm (center distance between two mounting holes when the linear actuator is fully extended) |
The linear actuator has external overcurrent protection, when the linear actuator is fully retracted or fully extended, it will stop automatically.
We can customize the stroke and retraction lengths to meet customer specifications during production. For example, specify a stroke of 370mm and a retraction length of 650mm.
Note 1: The specified retraction length must be greater than the original length. For example, a specified retraction length of 650mm is greater than the original length of 605mm.
Note 2: The specified stroke must be less than the original stroke. For example, a specified stroke of 370mm is less than the original stroke of 400mm.
Product Specifications
| Parameter | Value |
|---|---|
| Working Voltage | DC 12V, DC 24V (24V most commonly used) |
| Stroke | 16 inches / 400 mm |
| Optional Speed (No-load) | 5±1mm/s, 7±2mm/s, 10±3mm/s, 22±4mm/s, 36±5mm/s (The actual working speed will gradually slow down as the load increases.) |
| Max Load Capacity | 800N / 80 Kgs / 180 lbs at 5mm/s (Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.) |
| No-load Current | 0.3A at 12V / 0.2A at 24V |
| Full Load Current | 1.5A at 12V / 1A at 24V |
| Recommended Power Supply | 1 actuator: 12V/3A or 24V/2A 2 actuators: 12V/6A or 24V/4A 3~4 actuators: 12V/10A or 24V/6A |
| Outer Tube Diameter | 25mm [0.984 in] |
| Telescopic Tube Diameter | 16mm [0.630 in] |
| Front / Rear Connector Mounting Hole Diameter | 6mm [0.236 in] |
| Housing Material | Stainless Steel |
| Stroke Rod Material | Stainless Steel |
| Gear Material | Steel Alloy |
| Motor Type | Brushed DC Motor |
| Duty Cycle | 10% |
| Power Cable | Two-core wire (standard) / Six-core wire (with built-in Hall sensors) |
| Normal Linear Actuator Cable Length | 1000±10% mm [40 in] (The length can also be customized according to your specific needs) |
| Certifications | CE |
| Environment Temperature | -20℃ to 60℃ |
| Operating Noise | ≤50dB (Linear actuators with different parameters will have different noise levels.) |
| IP Rating | IP65 |
Different Speeds and Corresponding Maximum Thrust
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
|---|---|---|---|
| 5mm/s | 3.5mm/s | 800N / 80 kg / 180 lbs | 800N / 80 kg / 180 lbs |
| 7mm/s | 5mm/s | 700N / 70 kg / 160 lbs | 700N / 70 kg / 160 lbs |
| 10mm/s | 7mm/s | 500N / 50 kg / 110 lbs | 500N / 50 kg / 110 lbs |
| 22mm/s | 15mm/s | 250N / 25 kg / 60 lbs | 250N / 25 kg / 60 lbs |
| 36mm/s | 25mm/s | 150N / 15 kg / 30 lbs | 150N / 15 kg / 30 lbs |
Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cabinet door) is 10kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 3-5 times the weight of the cabinet door. If you don't know how to calculate it, please contact us for help.
2. The actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.
7. When the linear actuator's stroke exceeds 600MM, the load capacity will decrease by 50%, and its maximum load will be only half of the value shown in the table above.
Fixed Bracket and other Control Accessories
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.

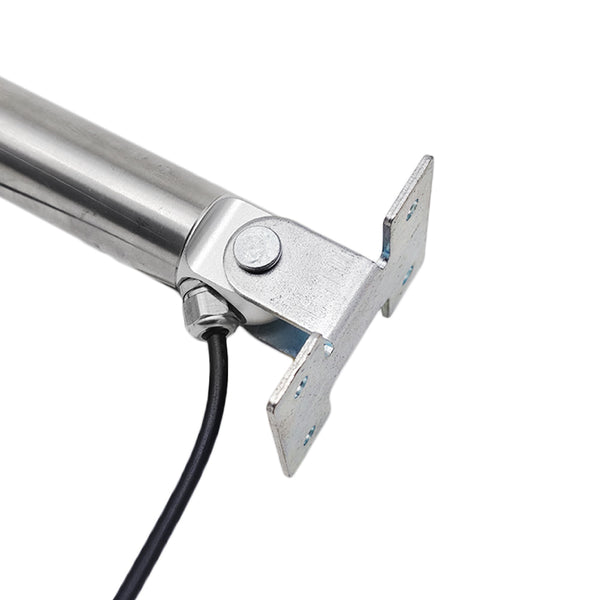

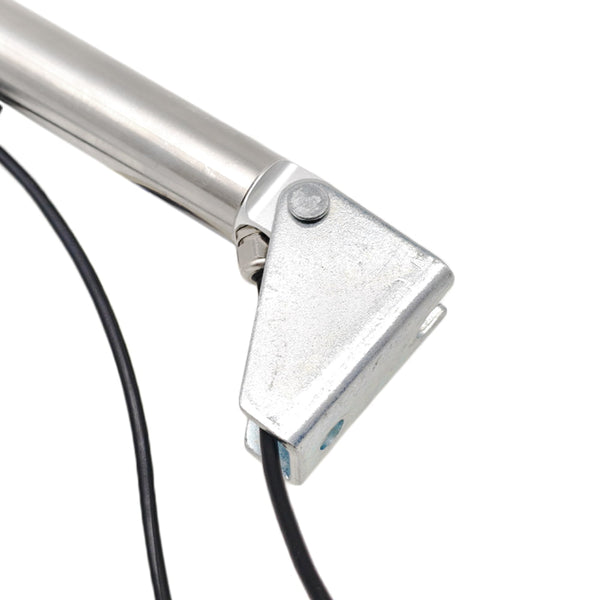

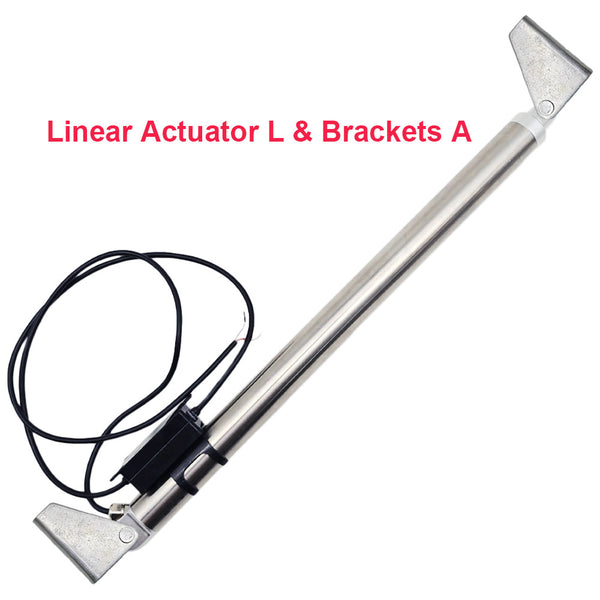

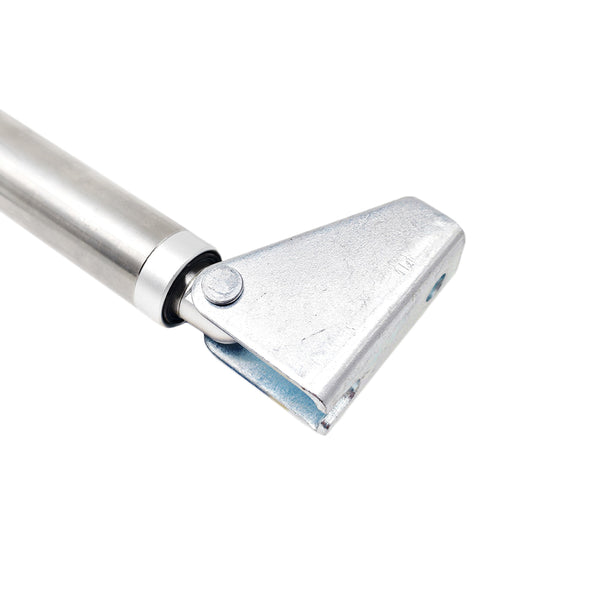

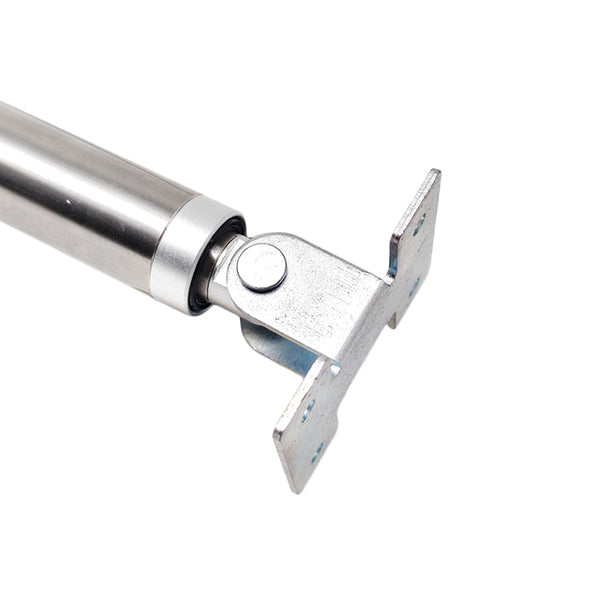

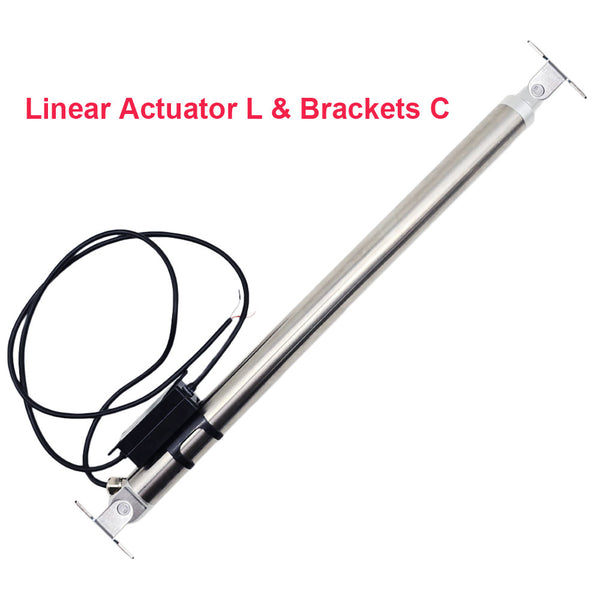

3. Compatible Mounting Brackets: Bracket A and Bracket C.

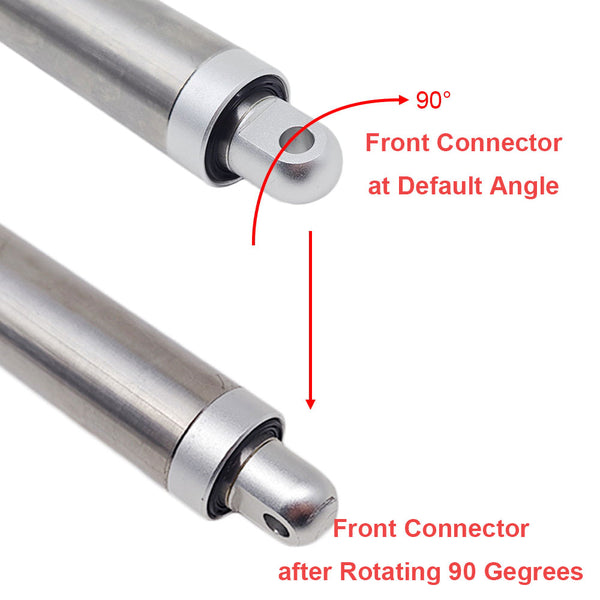

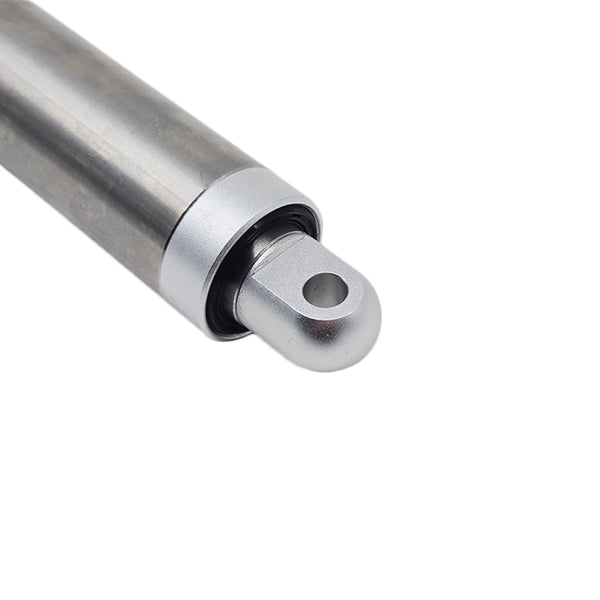

4. The orientation of the front connector of the linear actuator is default; we can rotate it 90 degrees during the production according to the customer's needs. If you need to rotate the front connector 90 degrees, please click here to purchase the rotation option.
5. If you need a power supply to power linear actuator, please click here to purchase.
6. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.
7. If you want to control 2, 4 or more linear actuators fully synchronously, you need to purchase built-in Hall effect sensors for each linear actuator, and buy a synchronization controller, please click here to purchase.
Production Time
The linear actuators are customized products and are not in stock. We need 3~7 working days to produce them according to the specified parameters in your order.
Return or Exchange Policy
The linear actuators are customized products produced according to the specified parameters in your order. Therefore, we do not accept returns or order cancellations.
If customers order unsuitable linear actuators themselves, we also do not accept exchanges. Please confirm all specifications carefully before placing your order.
