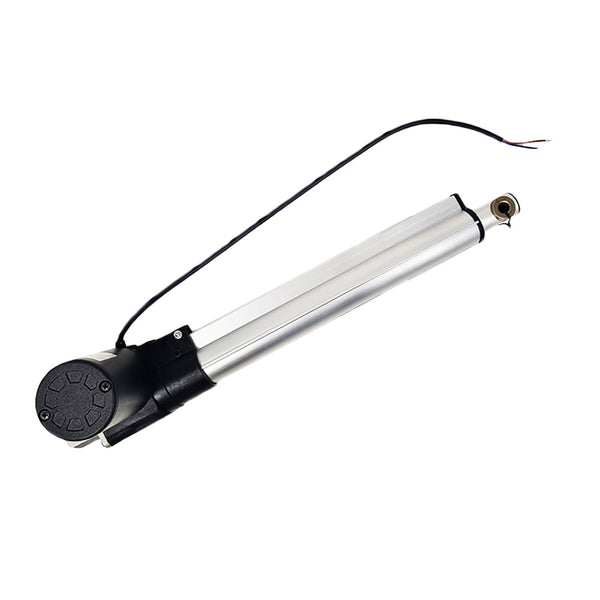

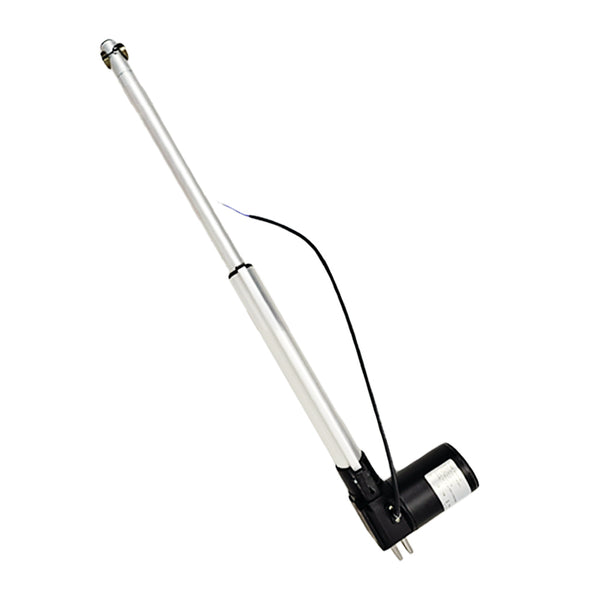

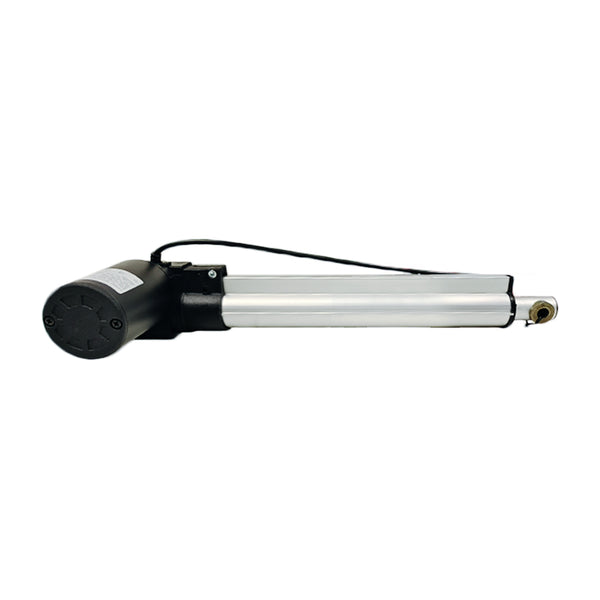

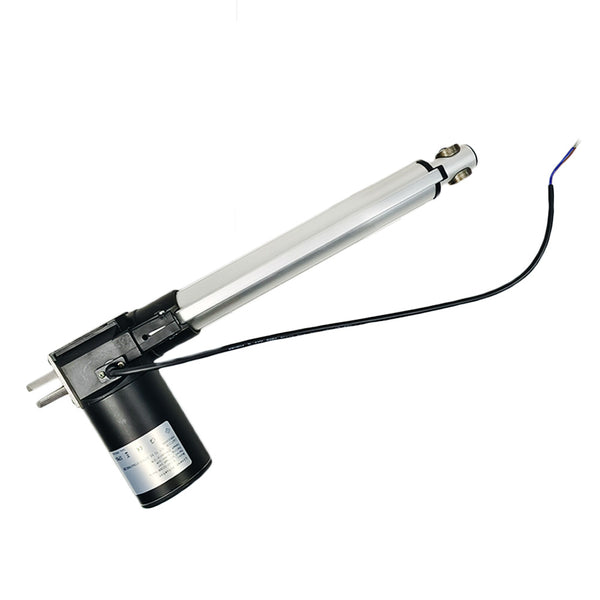

This industrial electric linear actuator with a 150mm stroke boasts a powerful torque of up to 6000 N, supports 12V and 24V DC input, and is suitable for a wide range of industrial and home automation applications.
It is widely used in doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can also replace hydraulic and pneumatic products to save power consumption.
Key Features:
- High-quality products and high-quality services
- High strength wear-resistant gear
- Aluminum alloy telescopic tube and outer tube, good corrosion resistant
- Heavy duty design, high-power DC motor
- Strong thrust, up to 6000 N / 600 kg / 1300 lbs at 3.5 mm/s
- Multiple speed options ranging from 3.5 mm/second to 38 mm/second
- Multiple stroke options, from 10 mm to 2000 mm, any stroke within this range can be customized (e.g. 770 mm, 1250 mm, 1850 mm)
- Advanced waterproof and dustproof technology
- Low power consumption and low noise
- Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position
- Built-in limit switch signal output is optional
- Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2, 4 or more linear actuators fully synchronously
- With auto-locking capability to hold load position after stopping, and no power supply is required
- Maintenance-free
Operation:
When the brown power wire is connected to the positive pole of the DC power supply and the blue power wire is connected to the negative pole of the DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.

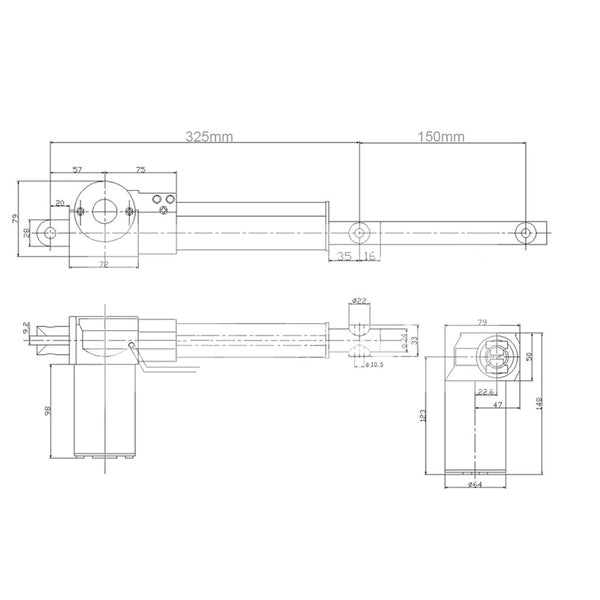

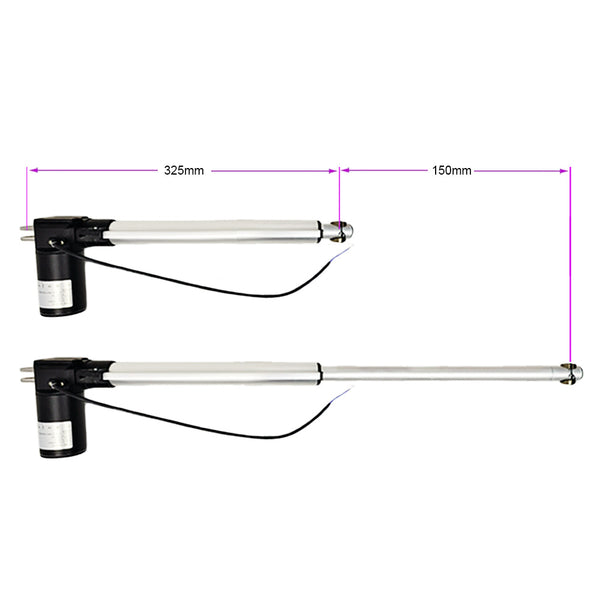

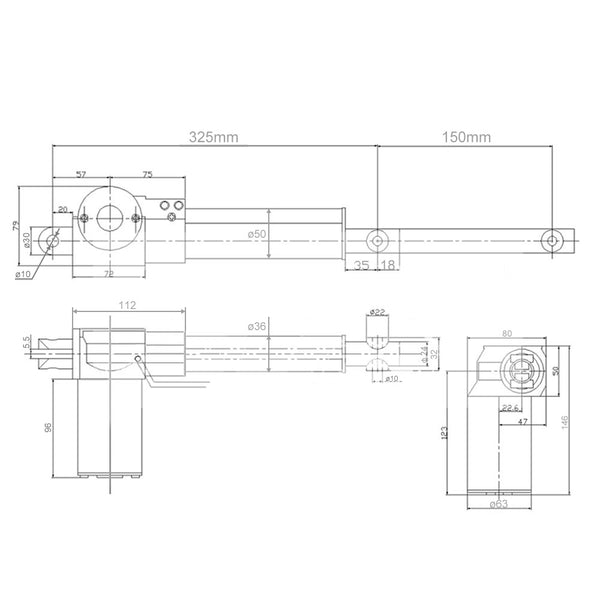

Stroke and Length (Model 0041531)
| Parameter | Value |
|---|---|
| Stroke | 150mm |
| Retraction Length | 325mm (center distance between two mounting holes when the linear actuator is fully retracted) |
| Extension Length | 475mm (center distance between two mounting holes when the linear actuator is fully extended) |
The linear actuator has two built-in limit switches, When the linear actuator is fully retracted or fully extended, it will stop automatically.
We can adjust the position of the built-in limit switches during production to meet customer-specified stroke and retraction lengths. For example, specify a stroke of 120mm and a retraction length of 355mm.
Note 1: The specified retraction length must be greater than the original length. For example, a specified retraction length of 355mm is greater than the original length of 325mm.
Note 2: The specified stroke must be less than the original stroke. For example, a specified stroke of 120mm is less than the original stroke of 150mm.
Product Specifications
| Parameter | Value |
|---|---|
| Working Voltage | DC 12V, DC 24V (24V most commonly used) |
| Stroke | 6 inches / 150 mm |
| Optional Speed (No-load) | 3.5±0.5mm/s, 5±1mm/s, 7±1.5mm/s, 9±2mm/s, 14±3mm/s, 18±4mm/s, 28±6mm/s, 38±8mm/s (The actual working speed will gradually slow down as the load increases.) |
| Max Load Capacity | 6000 N / 600 kg / 1300 lbs at 3.5mm/s (Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.) |
| No-load Current | 1~2A at 12V or 0.5~1A at 24V |
| Full Load Current | 6~12A at 12V or 3~6A at 24V |
| Recommended Power Supply | 1 actuator: 12V/10A or 24V/5A 2 actuators: 12V/20A or 24V/10A 3~4 actuators: 12V/50A or 24V/25A |
| Shaft Diameter | 24mm [0.945 in] |
| Front / Rear Connector Mounting Hole Diameter | 10mm [0.393in] |
| Housing Material | Aluminum Alloy |
| Stroke Rod Material | Aluminum Alloy |
| Gear Material | Polymer Plastic |
| Motor Type | Brushed DC Motor |
| Duty Cycle | 10%, max 3mins continuous use |
| Service Life | approx. 25,000 cycles |
| Power Cable | Ordinary two-core wire (Normal actuators) Six-core wire (Actuators with built-in Hall sensors) Four‑/five‑/six‑core wire (Actuators with built-in limit switch signal outputs) |
| Normal Linear Actuator Cable Length | 1000±10%mm [40 in] (The length can also be customized according to your specific needs.) |
| Certifications | CE |
| Environment Temperature | -26℃ to 85℃ |
| Operating Noise | about 42dB~46dB (Linear actuators with different parameters will have different noise levels.) |
| IP Rating | IP rating: IP54, not suitable for outdoor use |
Different Speeds and Corresponding Maximum Thrust
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
|---|---|---|---|
| 3.5mm/s | 3mm/s | 6000 N / 600 kg / 1300 lbs | 6500 N / 650 kg / 1400 lbs |
| 5mm/s | 3.5mm/s | 5500 N / 550 kg / 1200 lbs | 6000 N / 600 kg / 1300 lbs |
| 7mm/s | 5mm/s | 3500 N / 350 kg / 770 lbs | 3500 N / 350 kg / 770 lbs |
| 9mm/s | 7mm/s | 3000 N / 300 kg / 660 lbs | 3000 N / 300 kg / 660 lbs |
| 14mm/s | 10mm/s | 2000 N / 200 kg / 450 lbs | 1000 N / 100 kg / 200 lbs |
| 18mm/s | 13mm/s | 1500 N / 150 kg / 330 lbs | 800 N / 80 kg / 180 lbs |
| 28mm/s | 20mm/s | 1200 N / 120 kg / 260 lbs | 500 N / 50 kg / 110 lbs |
| 38mm/s | 26mm/s | 1000 N / 100 kg / 200 lbs | 300 N / 30 kg / 60 lbs |
Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.
Fixed Bracket and Control Accessories

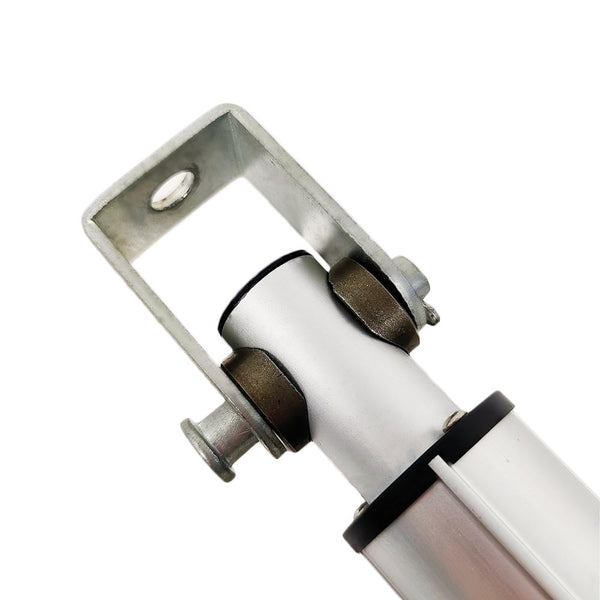

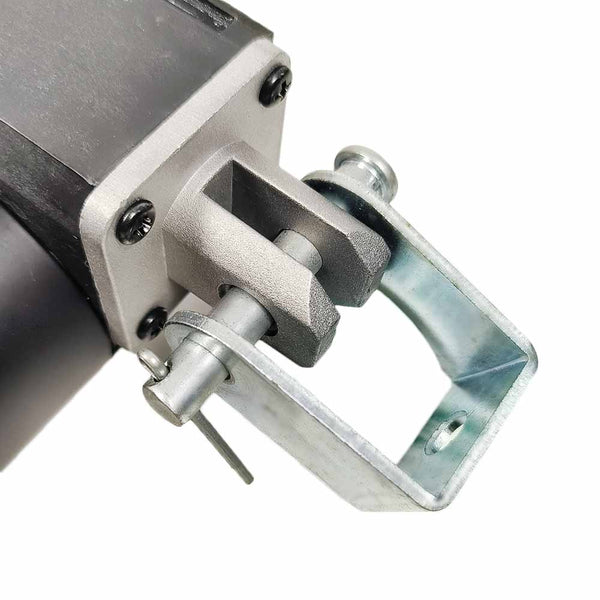

1. This linear actuator does not contain fixed mounting brackets, please click here to purchase. (Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.)

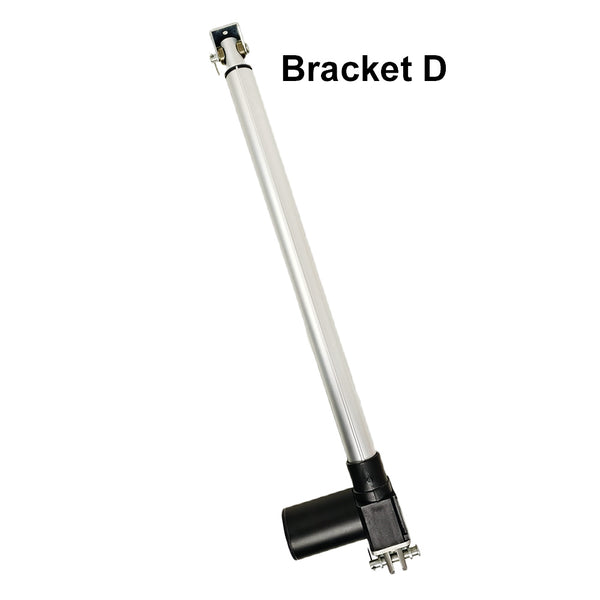

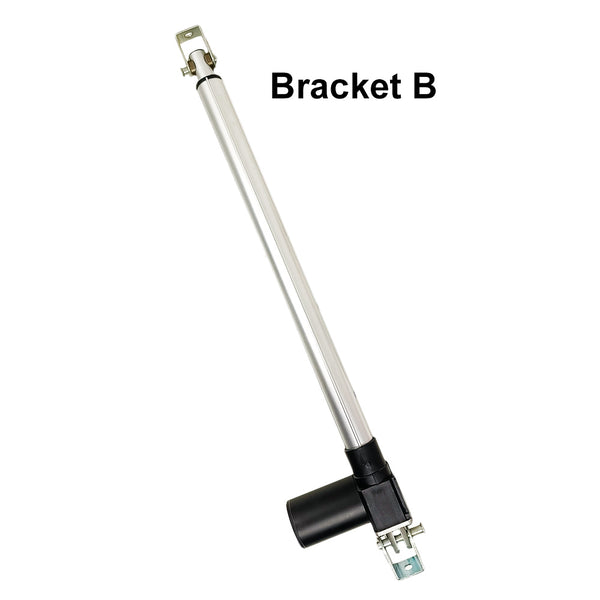

2. Compatible Mounting Brackets: Bracket B and Bracket D .
3. This linear actuator is also compatible with two flat mounting brackets: Head Fixed Mount Flat Bracket (Model 0043073) and Bottom Fixed Mount Flat Bracket (Model 0043074) .

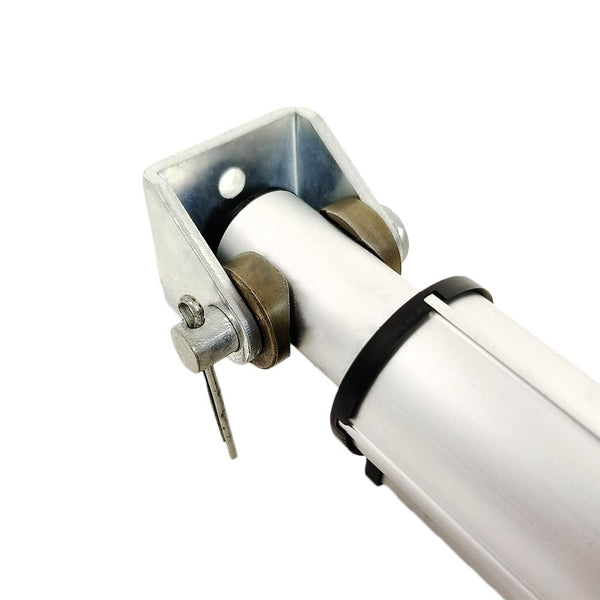

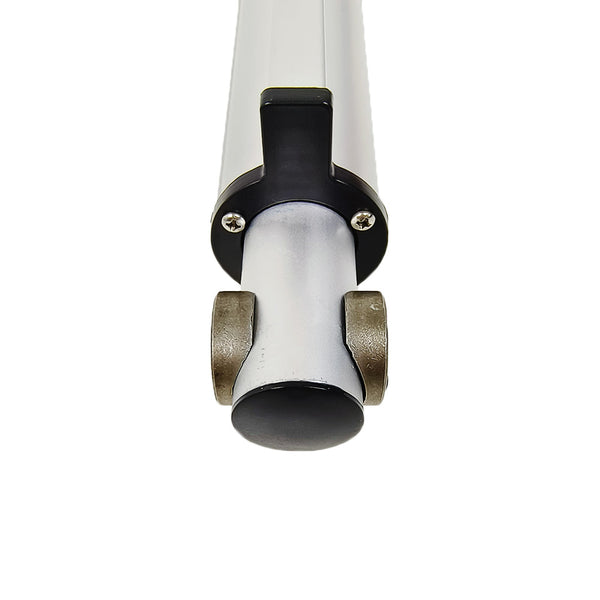

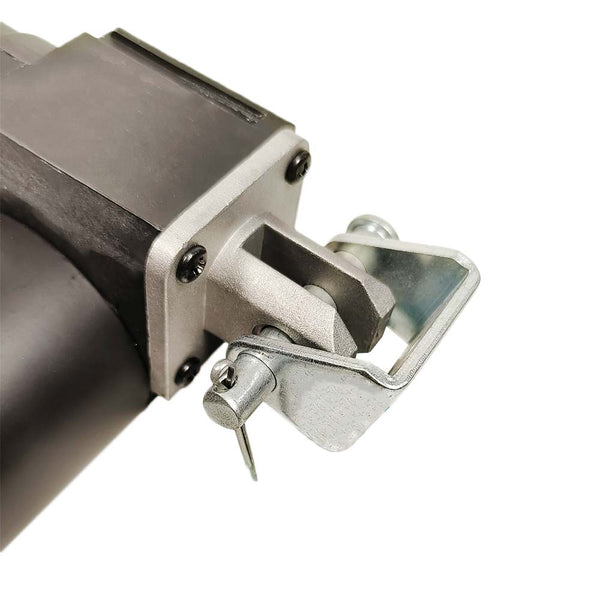

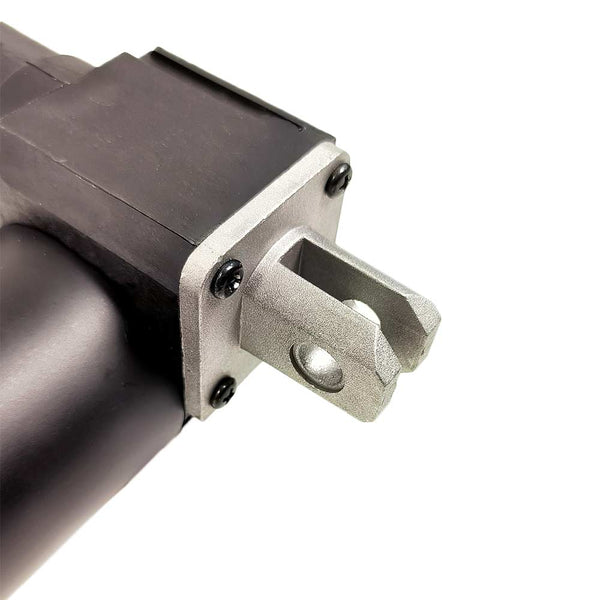

4. The front connector style of the linear actuator can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization. If you need customization, please click here to purchase the customized option.
5. Linear actuator fisheye connector can be customized and used in conjunction with the internal thread connector. If you need customization, please click here to purchase the customized option.
6. The orientation of the front connector of the linear actuator is default; we can rotate it 90 degrees during the production according to the customer's needs. If you need to rotate the front connector 90 degrees, please click here to purchase the rotation option.
7. If you need a power supply to power linear actuator, please click here to purchase.
8. If you want to use external limit switches to stop linear actuator at any position, please click here to purchase.
9. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.
10. If you want to control 2, 4 or more linear actuators fully synchronously, you need to purchase built-in Hall effect sensors for each linear actuator, and buy a synchronization controller, please click here to purchase.
Production Time & Return or Exchange Policy
The linear actuators are customized and not in stock, and we need to spend 3~7 working days to produce them according to the specified parameters in your order, so that we don't accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
