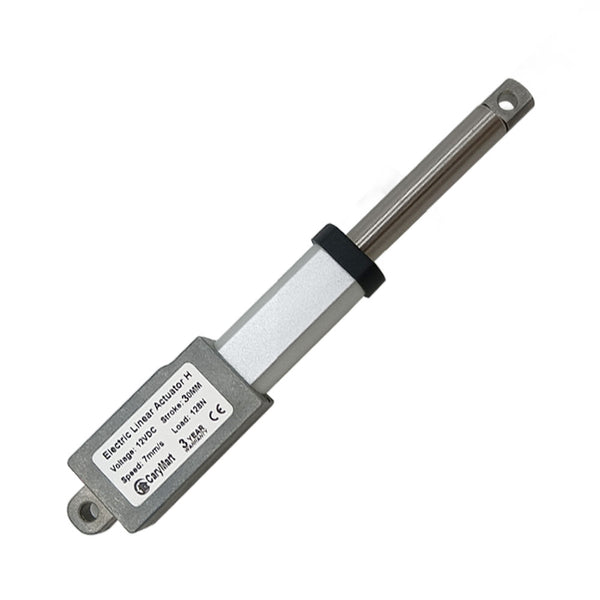

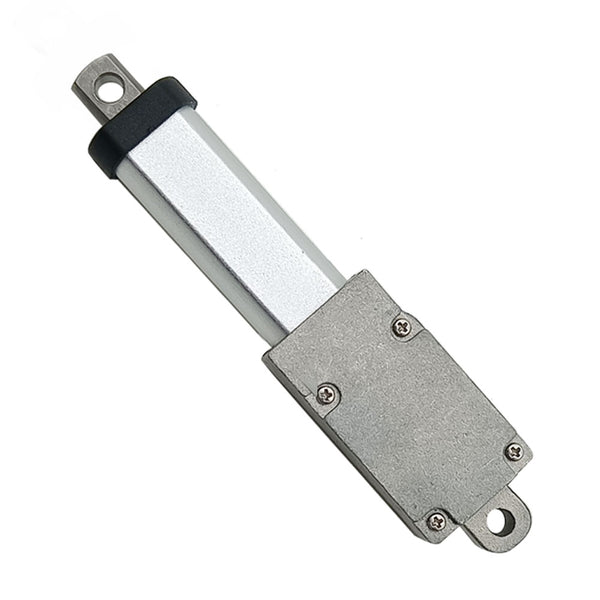

This 30mm micro electric actuator is compact, lightweight, low-noise and highly robust. It is ideal for space-constrained installations and low-force operating scenarios.
Mainly used for small doors, windows, furniture, medical & health equipment, agricultural machinery, vehicles, ships, drones, aircraft models, car models, ship models, robotics, remote controls (RC) and so on. It can open, close, push, pull, rise and drop these devices.
Key Features:
- High-quality products and high-quality services

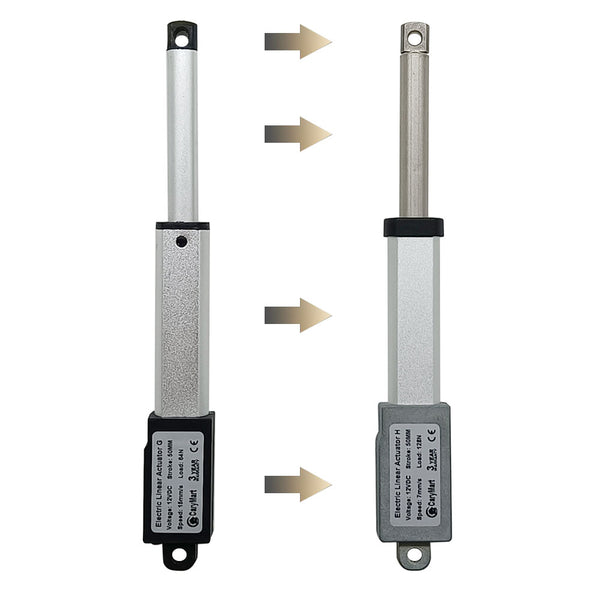

- High strength metallic zinc alloy housing protects motor and gear
- Metal gearbox, high strength wear-resistant gear

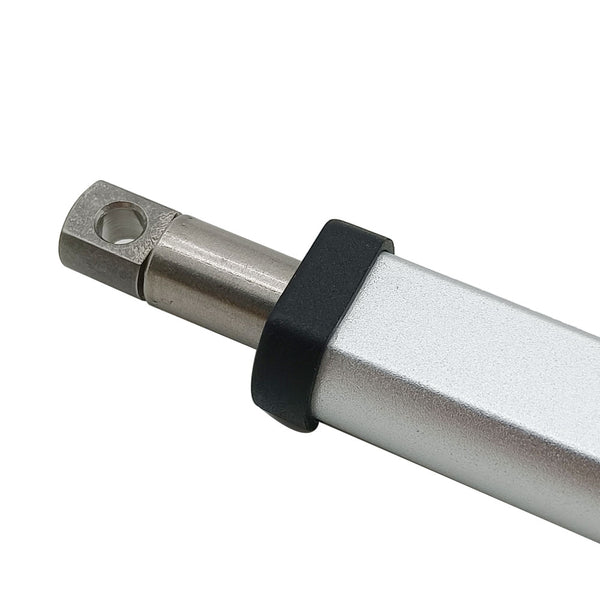

- Stainless steel telescopic tube and aluminum alloy outer tube, good corrosion resistant
- Strong thrust, up to 188 N / 19 kg / 42 lbs at 5mm/s
- Multiple speed options, from 5 mm/second to 150 mm/second
- Multiple stroke options, 10mm, 17.5mm, 21mm, 25mm, 30mm, 50mm, 75mm, 100mm
- Advanced waterproof and dustproof technology
- Low power consumption and low noise
- Built-in two limit switches (not adjustable), linear actuator will automatically stop when stroke rod reaches the limit position.
- With auto-locking capability to hold load position after stopping, and no power supply is required
- Maintenance-free
Operation
When the red power wire is connected to the power positive and the black power wire is connected to the power negative, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.

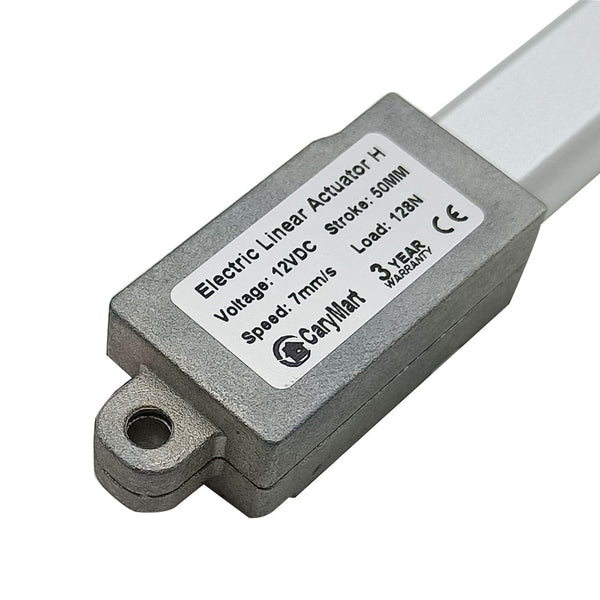

Product Specifications
| Parameter | Value |
|---|---|
| Model | 0041644 |
| Working Voltage | DC 6V, DC 12V or DC 24V (24V most commonly used) |
| Stroke | 30 mm |

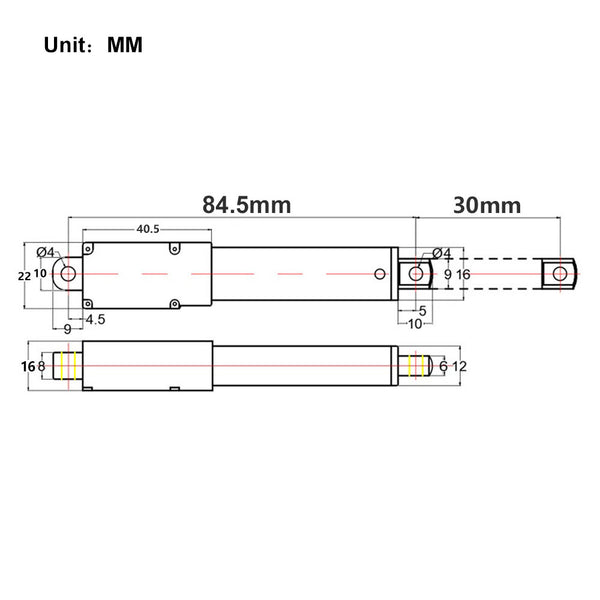

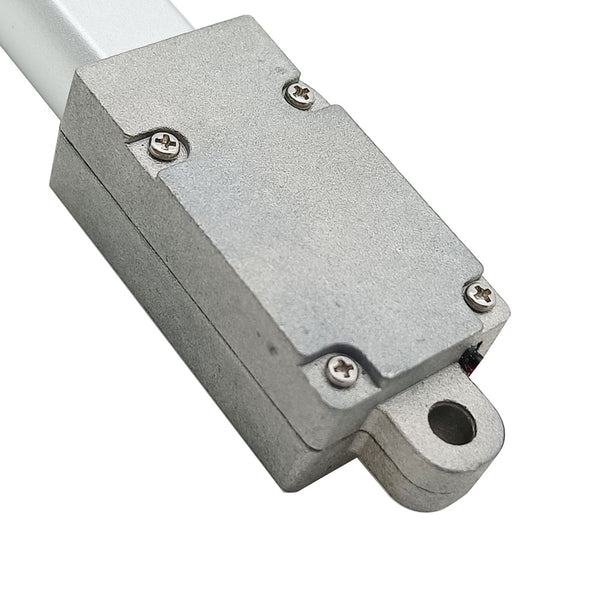

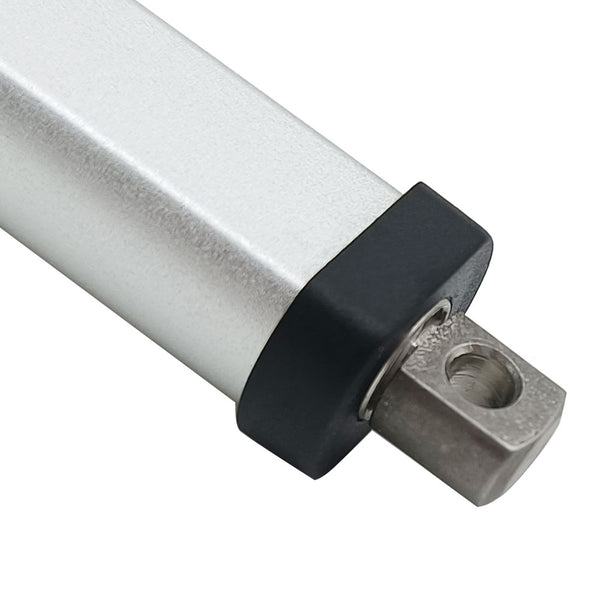

| Installation Length | 84.5 mm |
| Optional Speed (No-load) | 5±1mm/s, 7±2mm/s, 9.5±2mm/s, 15±3mm/s, 30±5mm/s, 50±10mm/s, 150±20mm/s (The actual working speed will gradually slow down as the load increases.) |
| Max Load Capacity | 188 N / 19 kg / 42 lbs at 5mm/s (Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.) |
| No-load Current | 0.02~0.04A at 12V, or 0.01~0.02A at 24V, or 0.04~0.08A at 6V |
| Full Load Current | 0.2~0.3A at 12V, or 0.1~0.15A at 24V, or 0.4~0.6A at 6V |
| Recommended Power Supply | 6V/1A or 12V/1A or 24V/1A |
| Outer Tube Diameter | 12*16mm |
| Telescopic Tube Diameter | 6*9mm |
| Front / Rear Connector Mounting Hole Diameter | 4mm [0.039 in] |
| Housing Material | Zinc Alloy |
| Stroke Rod Material | Stainless Steel |
| Outer Tube Material | Aluminum Alloy |
| Front Connector Material | Stainless Steel |
| Rear Connector Material | Zinc Alloy |
| Gear Material | Steel Alloy |
| Motor Type | Brushed DC Motor |
| Duty Cycle | 10% |
| Service Life | approx. 50,000 cycles |

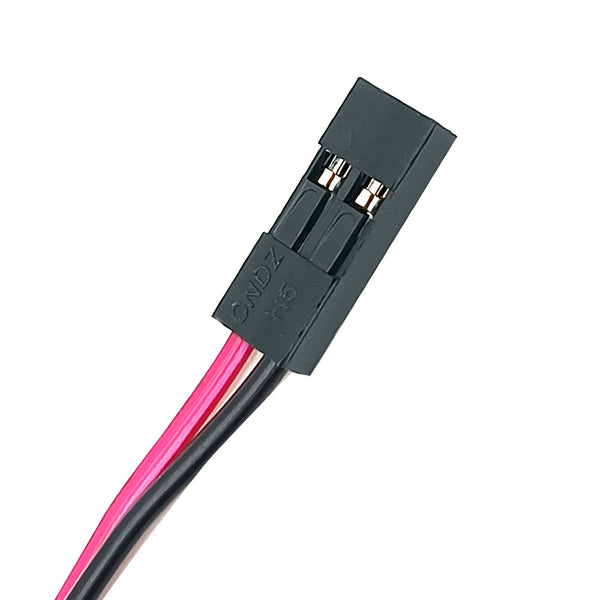

| Power Cable | Ordinary Two-core Wire |

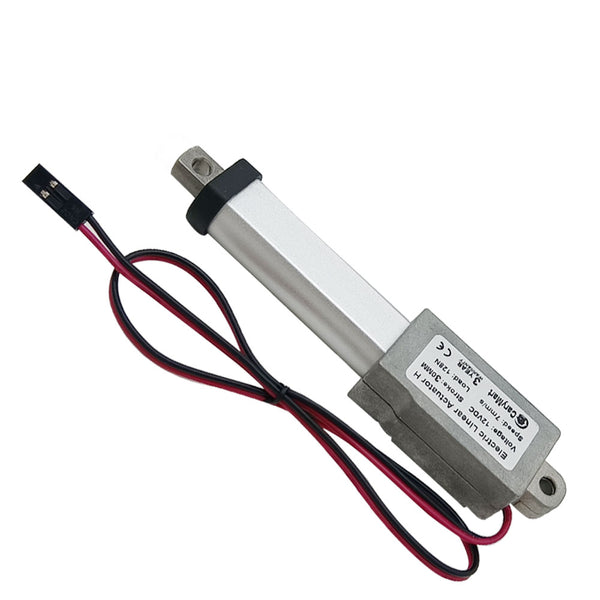

| Linear Actuator Cable Length | 500±10%mm [20 in] (The length can also be customized according to your specific needs) |
| Certifications | CE |
| Environment Temperature | -26℃ to 85℃ |
| Operating Noise | about 45dB~55dB (Linear actuators with different parameters will have different noise levels) |
| IP Rating | IP54, not suitable for outdoor use |
Different Speeds and Corresponding Maximum Thrust
| No-load Speed | Maximum Thrust |
|---|---|
| 5mm/s | 188 N / 19 kg / 42 lbs |
| 7mm/s | 128 N / 13 kg / 29 lbs |
| 9.5mm/s | 96 N / 9.8 kg / 21 lbs |
| 15mm/s | 64 N / 6.5 kg / 14 lbs |
| 30mm/s | 32 N / 3.2 kg / 7 lbs |
| 50mm/s | 19 N / 1.9 kg / 4 lbs |
| 150mm/s | 6 N / 0.6 kg / 1.3 lbs |
Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

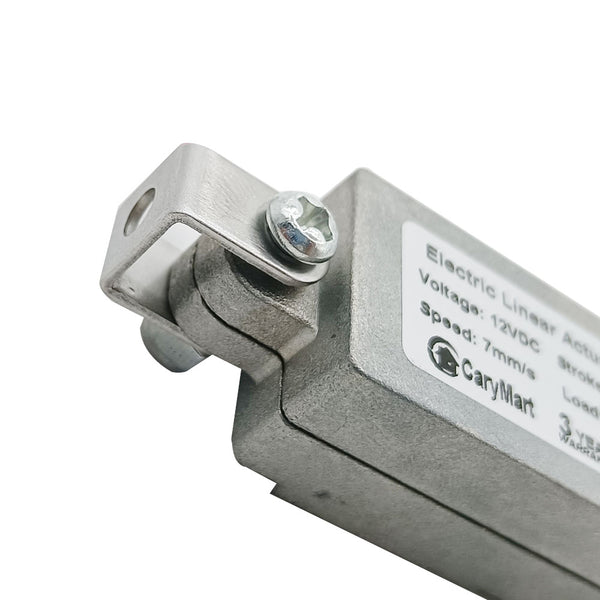

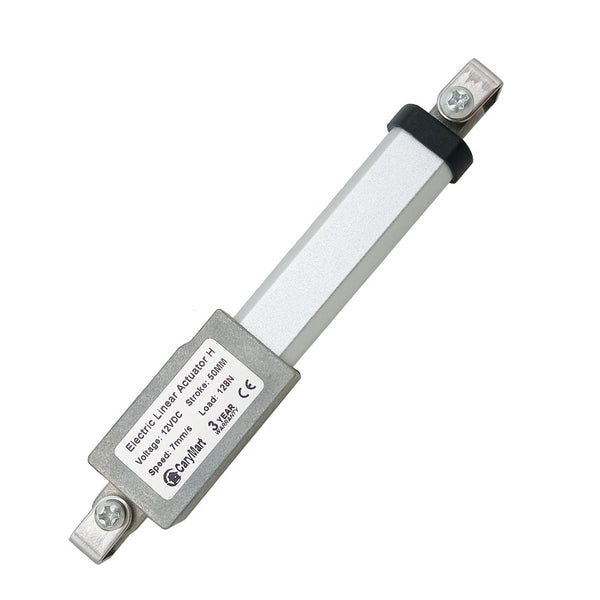

Fixed Bracket and Control Accessories

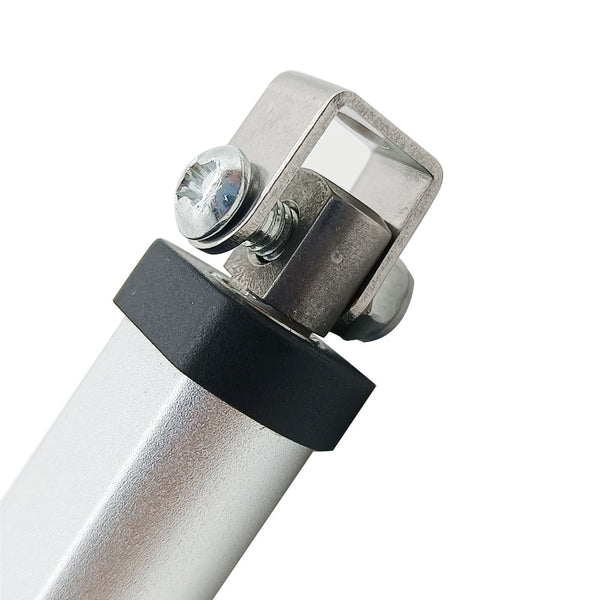

1. This linear actuator does not contain fixed mounting brackets, please click here to purchase. (Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.)
