Package Include:
1 x Foot Switch
1 x User Manual
Introduction:

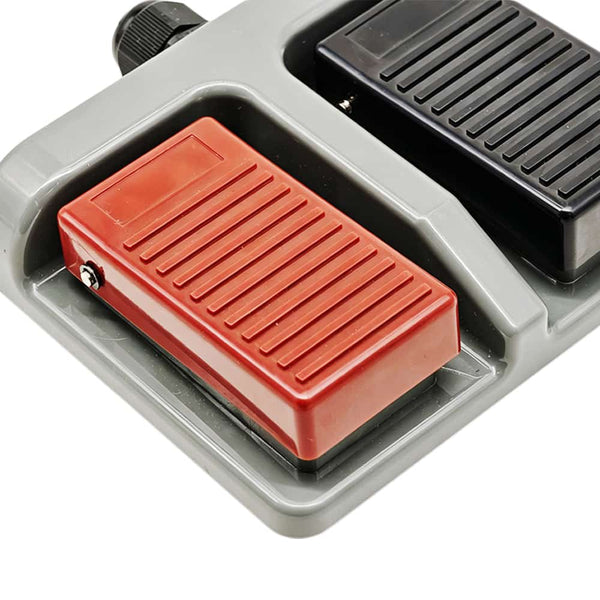

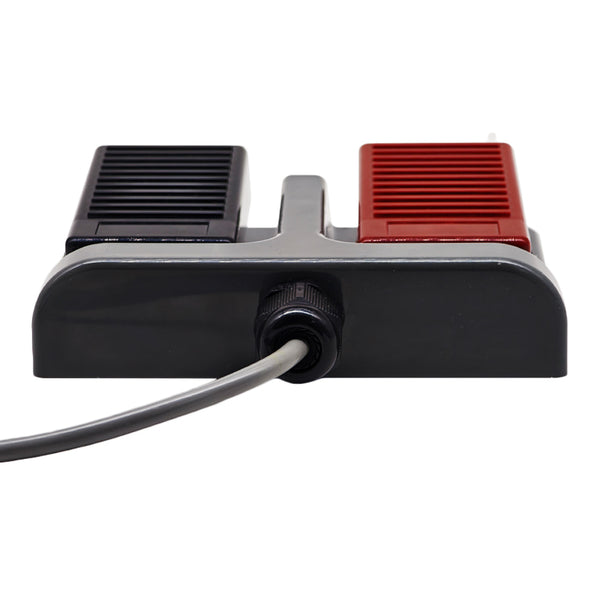

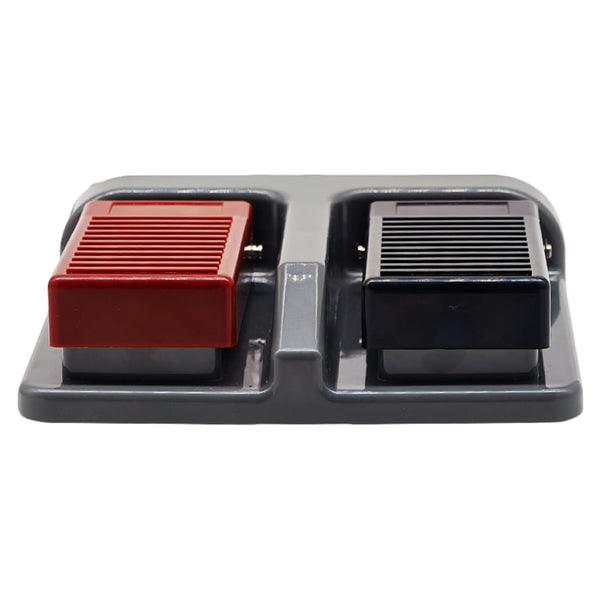

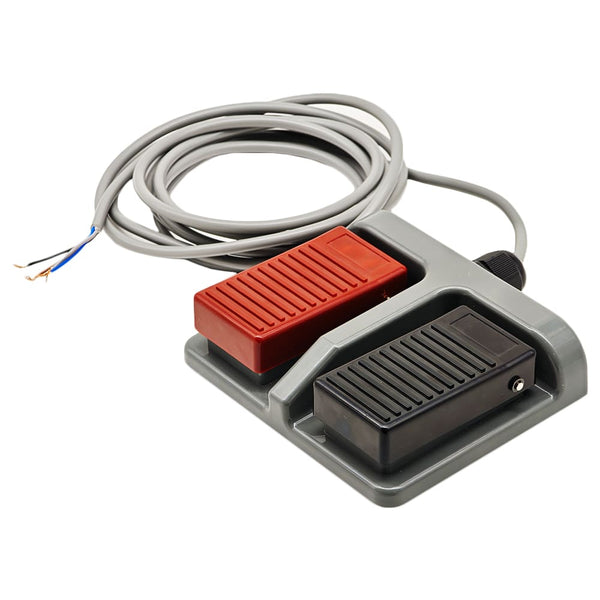

This foot switch features red and black buttons, corresponding to the
“Forward” and “Reverse” functions respectively. If you connect a DC motor to
this foot switch, you can operate the motor to rotate in positive or
reversal direction by the foot pedal. If you connect a DC linear actuator to
this foot switch, you can operate the linear actuator to extend or retract
by the foot pedal.
Product Description:
Operating Voltage : DC 12V ~ 24V
Maximum Load Current: 6A
Two Buttons: Red button, Black button
Work Mode: Momentary

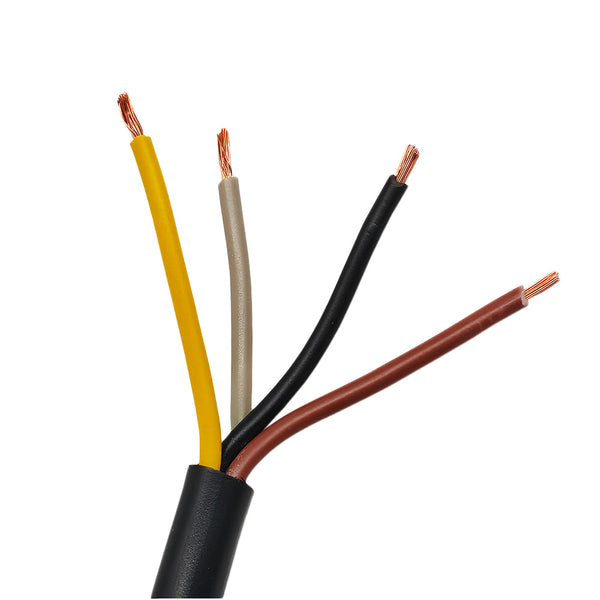

Power Cable: Four-core Wire

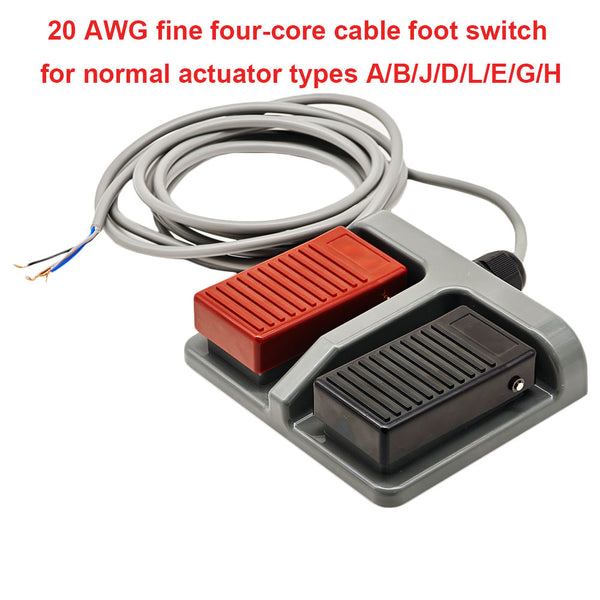

With a 300CM 20AWG four-core cable
Contact Material: Silver Contacts
Operating Temperature: -20°C to +70°C
Suitable for the following linear actuators: Type A/B/J/D/L/E/G/H

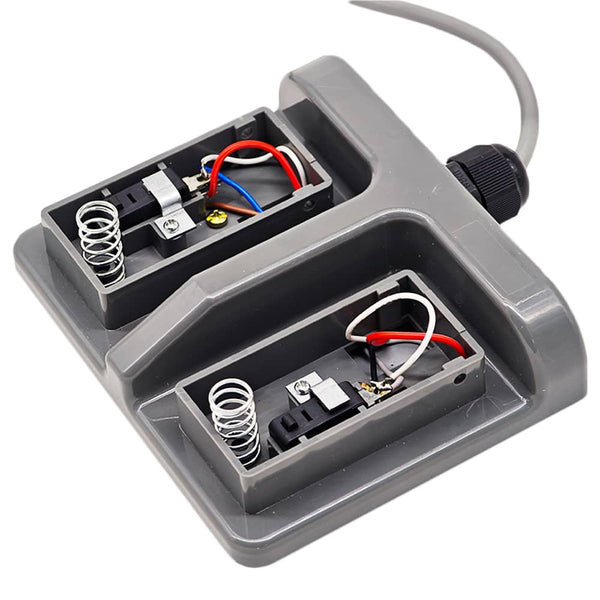

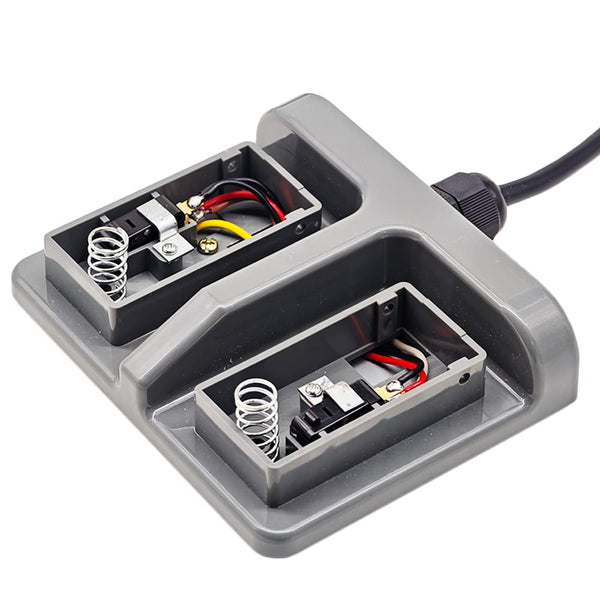

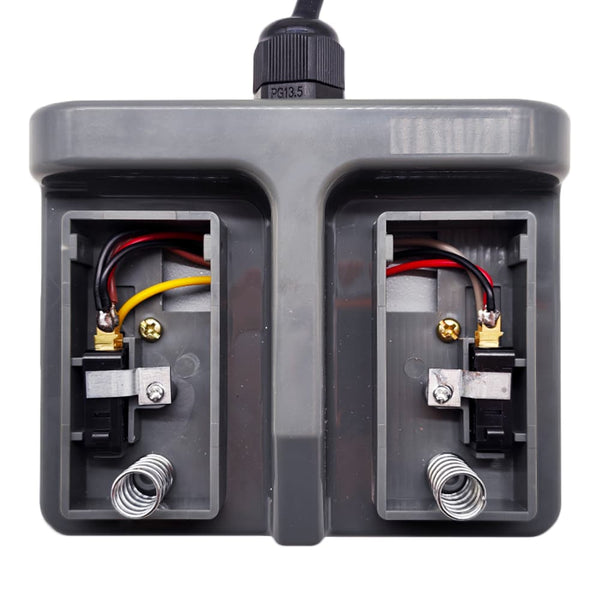

Internal cables are pre-wired

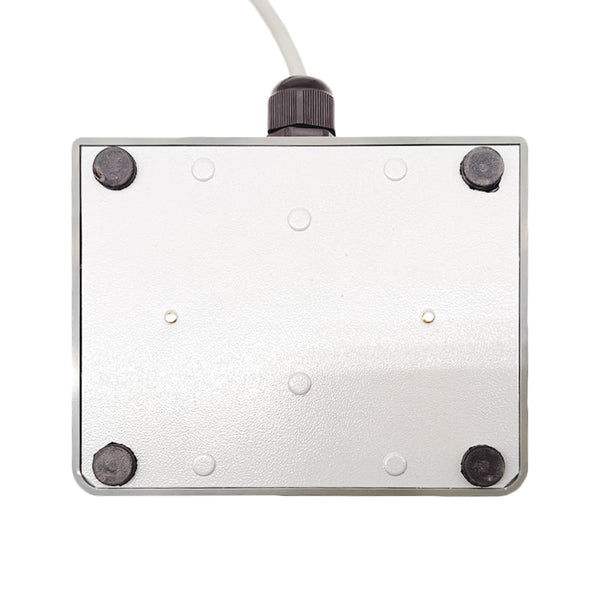

Size: 142 x 150 x 34 mm (5.6 x 5.9 x inches)

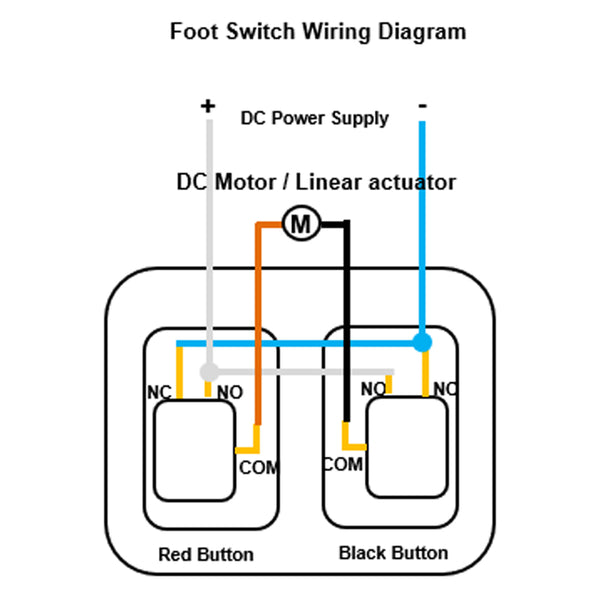

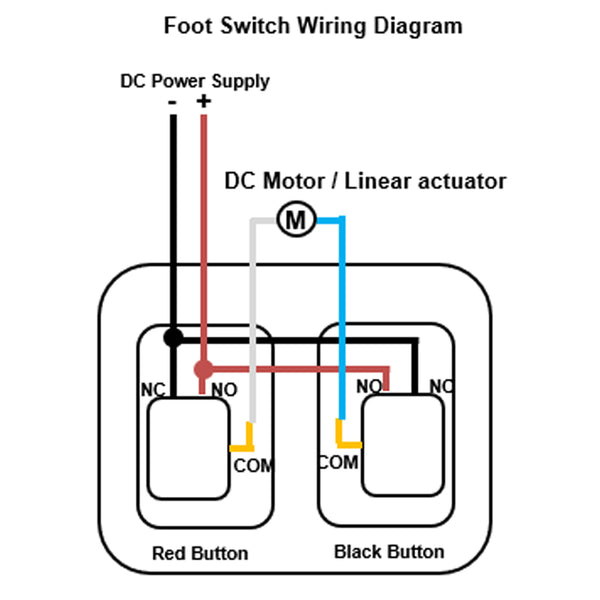

Wiring:

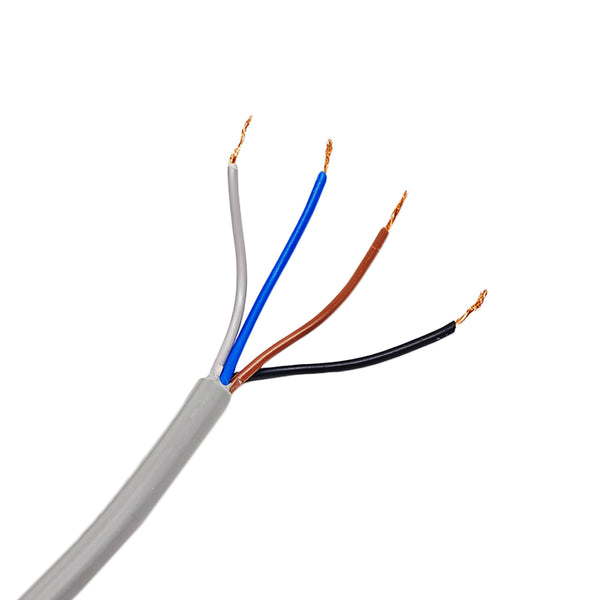

1) Connect the positive pole of the DC power supply to the white wire of the
foot switch, and connect the negative pole of the DC power supply to the
blue wire of the foot switch.
2) Connect two wires of the motor or linear actuator to brown and black
wires of foot switch. (You can exchange these two wires to change the
rotating direction of motor or the moving direction of linear actuator.)
Operation:
1) Press and hold the red button, motor rotates in positive direction, or
linear actuator extends outward; Release the button, motor or linear
actuator stops.

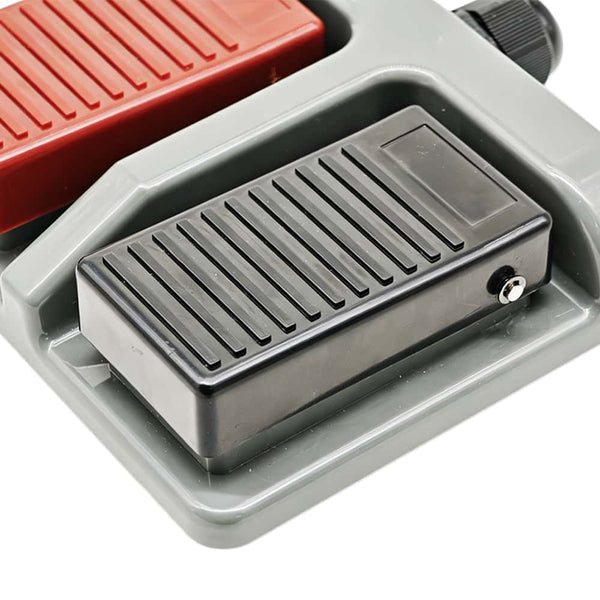

2) Press and hold the black button, motor rotates in reversal direction, or
linear actuator inward retracts; Release the button, motor or linear
actuator stops.
