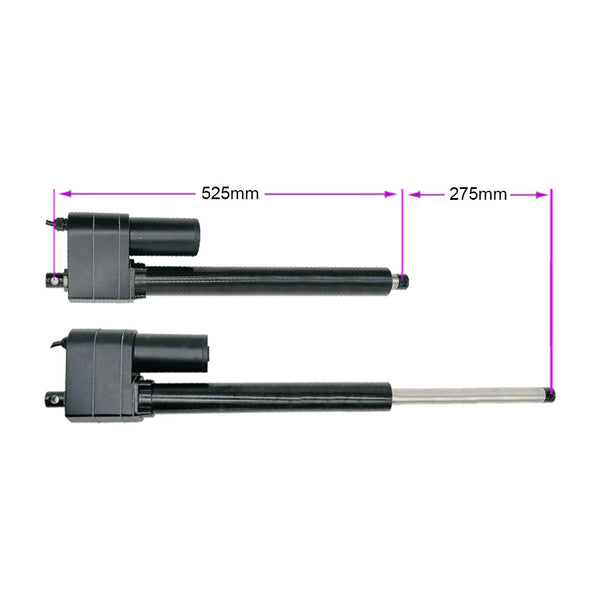

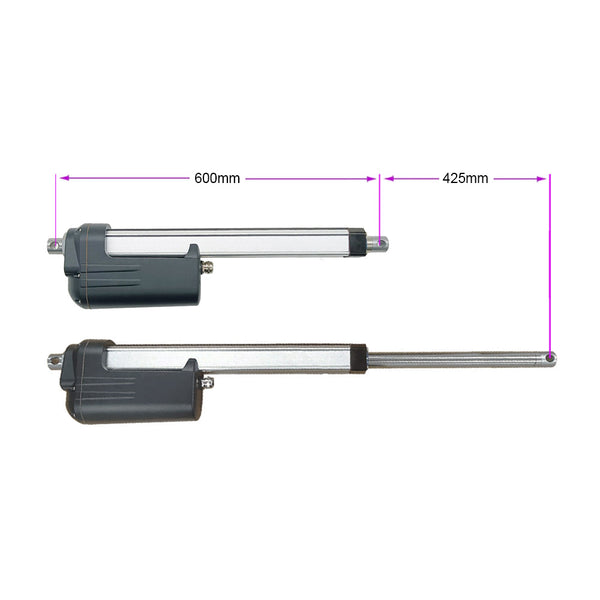

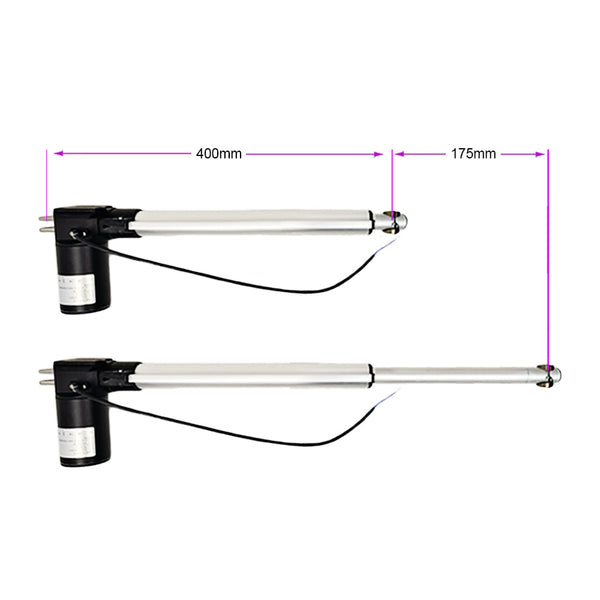

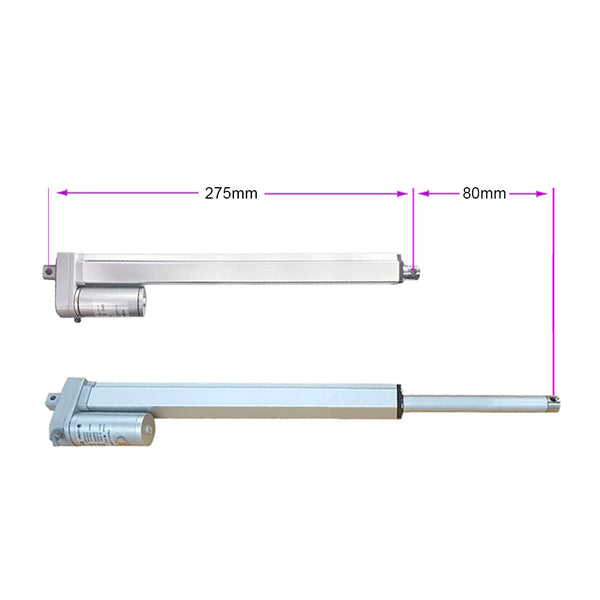

We can customize linear actuators according your required installed length
when fully retracted and the stroke length that can be extended.
Example: A linear actuator with a stroke of 200 mm
Standard Retraction Length: 375 mm (center distance between two mounting
holes when the linear actuator is fully retracted).
We can customize the installation length according to your specific
installation requirements, such as reducing its installation length to 370
mm, 360 mm, or 350 mm. In this case, the stroke must also be reduced by an
equivalent value, resulting in an effective stroke of 195 mm, 185 mm, or 175
mm.
We can also customize linear actuators with stroke lengths in the range of
0-200mm according to your stroke length requirements, such as customized
stroke lengths of 95mm, 125mm, 175mm and so on. In this case, the retraction
length will be reduced by an equivalent value, resulting in a retraction
length of 270 mm, 300 mm, or 350 mm. Of course, you can also choose to
retain the original standard retraction length of 375 mm.
Note 1: The specified retraction length must be less than the standard
retraction length of the ordered actuator.
Note 2: The specified stroke must be less than the standard stroke of the
ordered actuator
