Package Include:
1 x Foot Switch
1 x User Manual

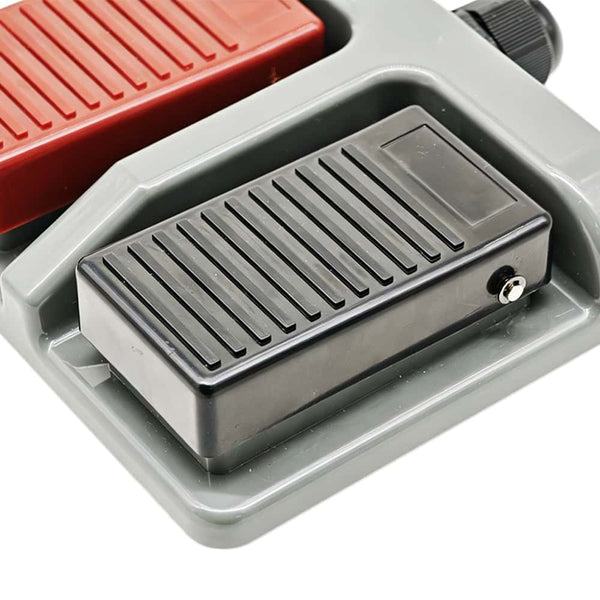

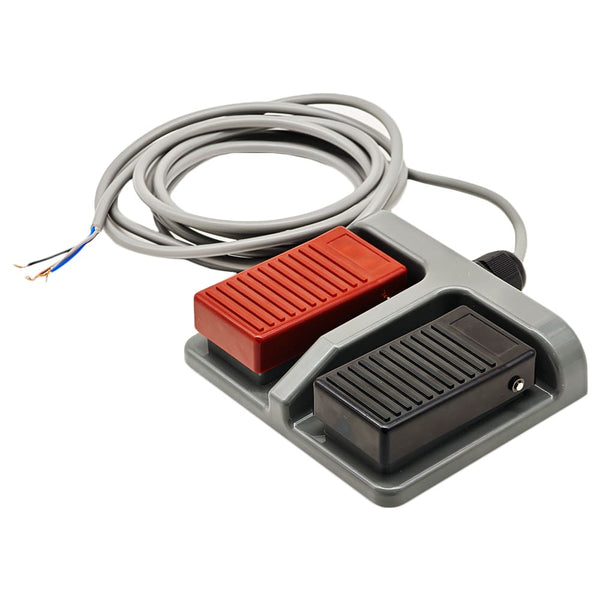

Introduction:
This foot switch features red and black buttons, corresponding to the
“Forward” and “Reverse” functions respectively. Each button has a set of
normally open contacts. You can connect this foot switch to wired control
terminals of the receiver, or connect to manual switch terminals of linear
actuator synchronization controller, and then use it to control the DC motor
or the linear actuator.
Product Description:
Operating Voltage : DC 12V ~ 24V
Maximum Load Current: 6A

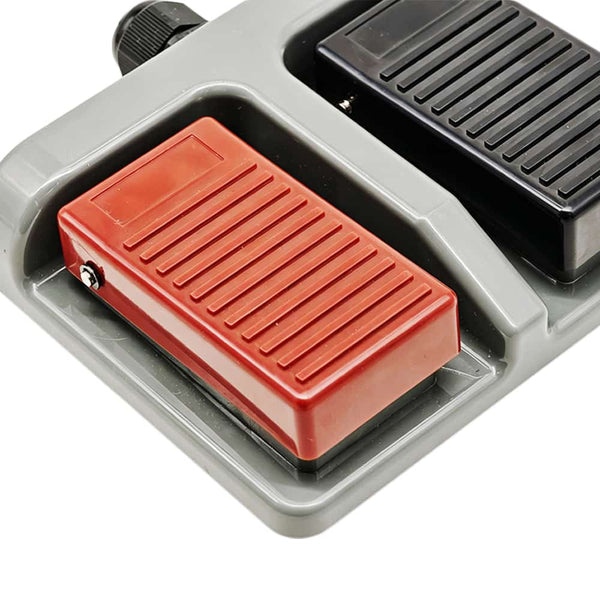

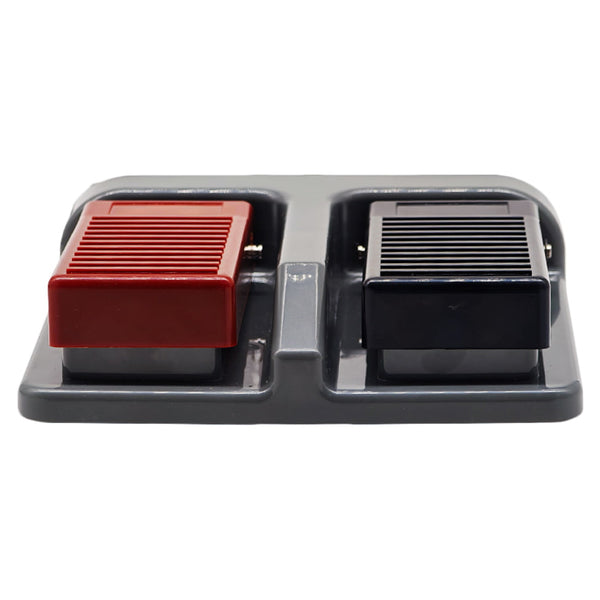

Two Buttons: Red button, Black button
Work Mode: Momentary

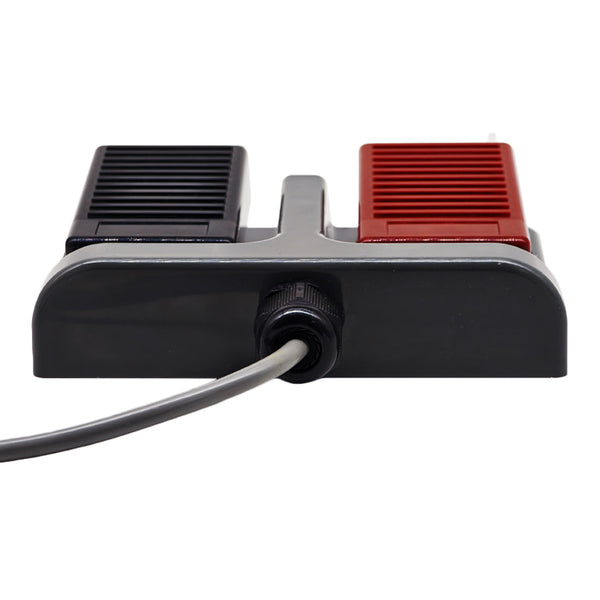

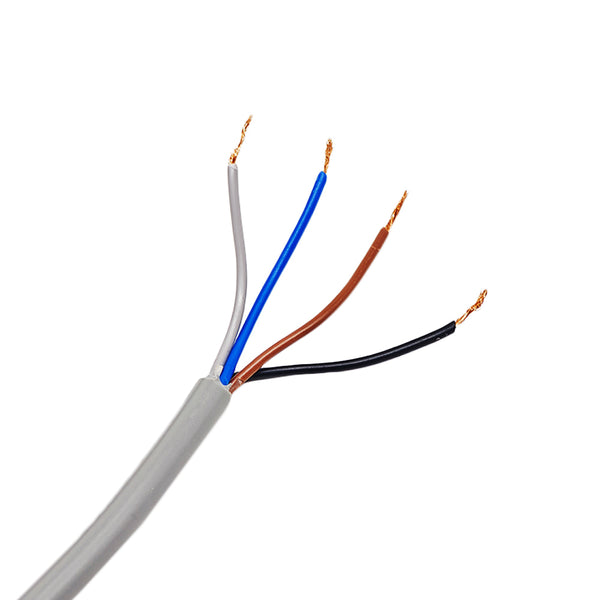

Equipped with a 300CM 20AWG four-core cable

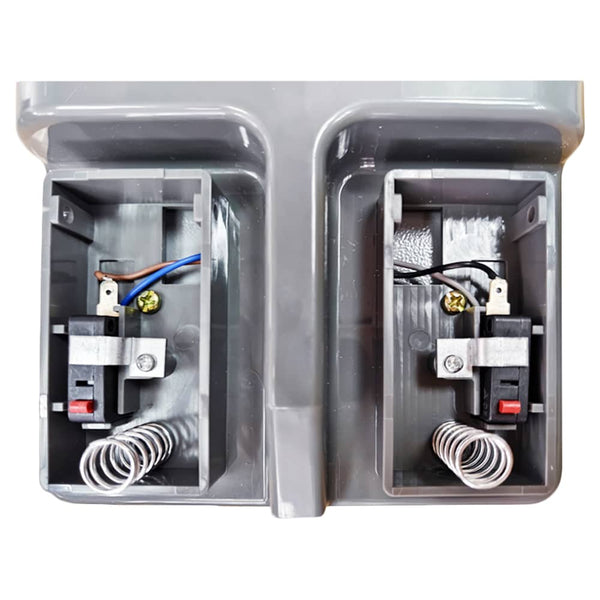

Each button is equipped with a set NO contacts
Contact Material: Silver Contacts
Operating Temperature: -20°C to +70°C
Internal cables are pre-wired

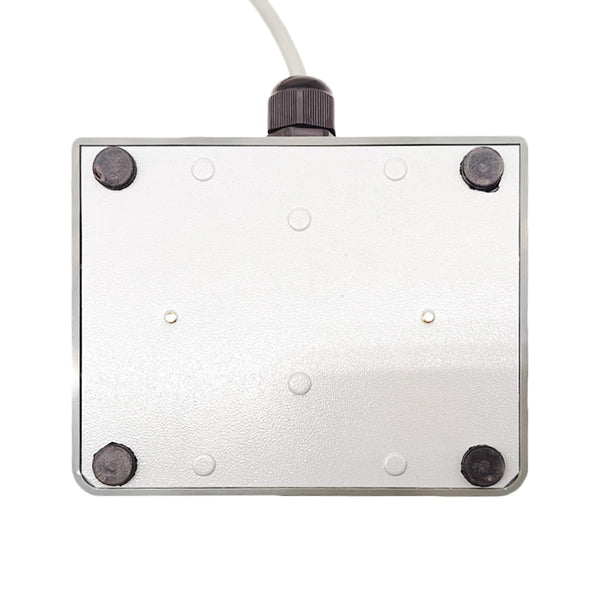

Size: 142 x 150 x 34 mm (5.6 x 5.9 x inches)
Suitable for our receivers with wired control terminals, such as model
S1FC-DC, S1F2-DC, S1PF-DC, S1PF3-DC, S1FC-AC, and S1F2-AC.
Suitable for our linear actuator synchronization controllers with manual
switch terminals
Wiring:

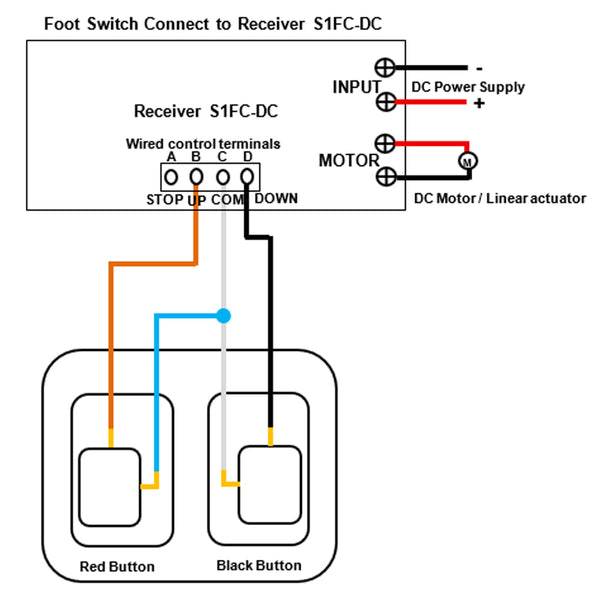

Connect to the receiver S1FC-DC:
1. Connect the positive pole of DC power supply to terminal <+> of the
receiver's input, and connect the negative pole of DC power supply to
terminal <-> of the receiver's input.
2. Connect the foot switch wires to the receiver's wired control terminals
as follows:
1) Brown wire to <UP> terminal
2) Black wire to <DOWN> terminal
3) Blue and white wires to <COM> terminal
3. Connect two wires of the motor or the linear actuator to terminals
<Motor> of the receiver, and you can exchange these two wires to change the
rotating direction of the motor or the moving direction of the linear
actuator.

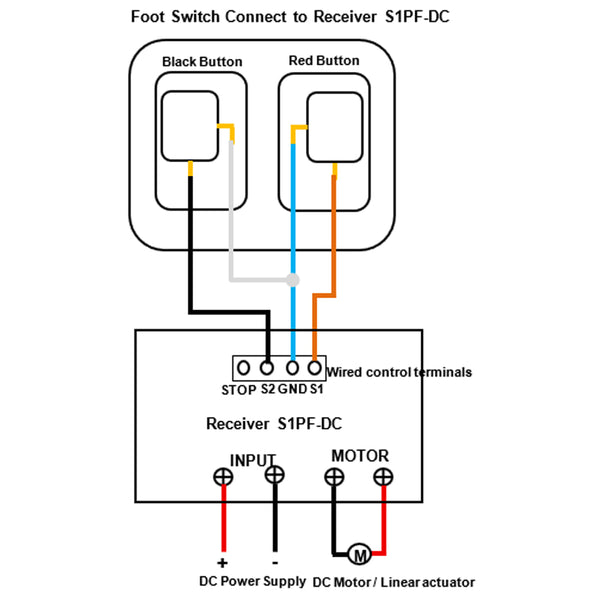

Connect to the receiver S1PF-DC:
1. Connect the positive pole of DC power supply to terminal <+> of the
receiver's input, and connect the negative pole of DC power supply to
terminal <-> of the receiver's input.
2. Connect the foot switch wires to the receiver's wired control terminals
as follows:
1) Brown wire to <S1> terminal
2) Black wire to <S2> terminal
3) Blue and white wires to <GND> terminal
3. Connect two wires of the motor or the linear actuator to terminals
<Motor> of the receiver, and you can exchange these two wires to change the
rotating direction of the motor or the moving direction of the linear
actuator.

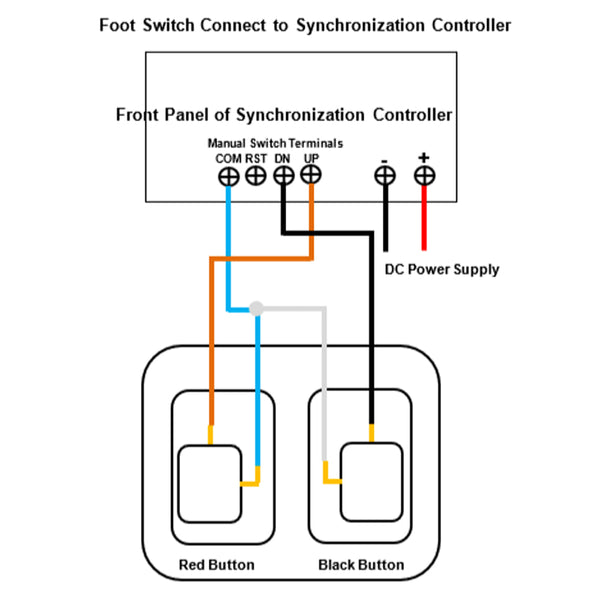

Connect to the synchronization controller with manual switch function:
1. Connect the positive pole of DC power supply to the terminal <+> of the
controller, and connect the negative pole of DC power supply to the terminal
<-> of the controller.
2. Connect the foot switch wires to the controller's manual switch terminals
as follows:
1) Brown wire to <UP> terminal
2) Black wire to <DN> terminal
3) Blue and white wires to <COM> terminal
3. Plug the linear actuators into into the corresponding channel terminal of
the controller.
Operation:
1) Press and hold the red button, motor rotates in positive direction, or
linear actuator extends outward; Release the button, motor or linear
actuator stops.
2) Press and hold the black button, motor rotates in reversal direction, or
linear actuator inward retracts; Release the button, motor or linear
actuator stops.
