Product Parameters:
Model: 0043202
Maximum Working Voltage: 100V AC or DC
Maximum Working Current: 0.5A
Rated Power: 10W
Life Cycle: More than 10 million times
Material: ABS
Certifications: CE
Line Length: 350MM
Size: 5 x 20mm
Normally Closed Type (NC): The magnetic reed switch is normally closed. When a magnet approaches, the switch opens. On the contrary, when the magnet moves away, the switch closes.

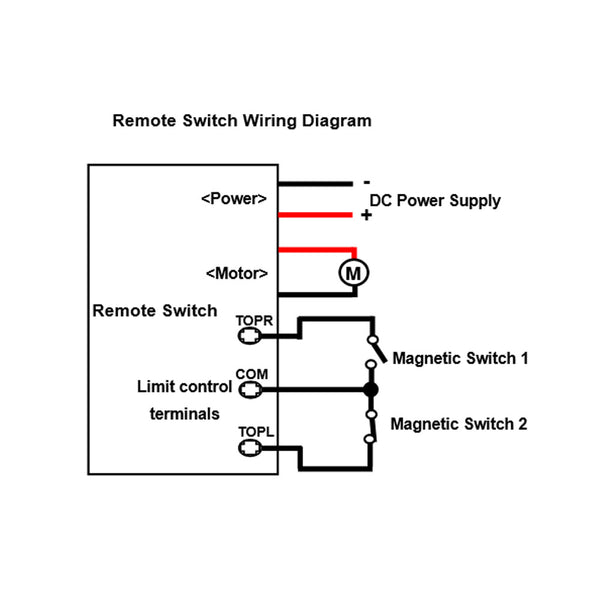

Each linear actuator A4/J4/B4/C4 normally needs to be equipped with two normally closed magnetic reed switches, one to control the retracted position and one to control the extended position.
