Adjustable Stroke Linear Actuator A3 With Electronic Magnetic Switch Sensor

Sort by

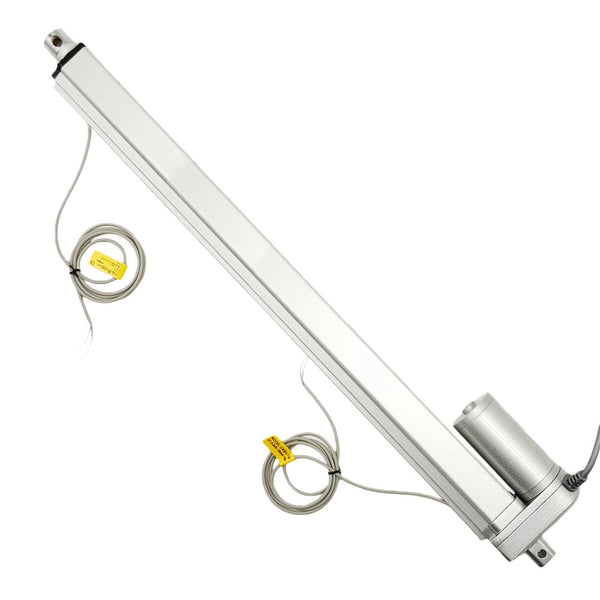

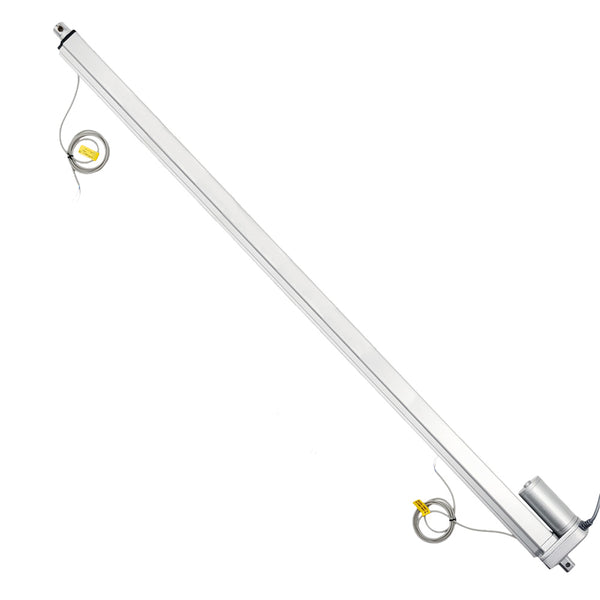

This is a linear actuator with adjustable stroke. It is equipped with two external magnetic switches that can slide freely, and by adjusting the position of these two magnetic switches, the linear actuator can be controlled to work within the set stroke length. For example, for a linear actuator with a stroke of 500MM, you can set it to move within a stroke range of 150MM to 400MM.

Specifications:
IP rating: IP65
Service life: approx. 25,000 cycles
Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the most commonly used working voltage.
Strong thrust, up to 2000N / 200Kgs / 450lbs
Multiple stroke options, from 0.4 ~ 60 inches or 10 ~ 1500 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s, 160±20mm/s
We can customize any stroke length from 10mm to 1500mm, such as 380mm, 750mm, 1250mm and so on.

Notice:The linear actuators are customized and not in stock, and we need to spend 3~7 working days to produce them according to the specified parameters in your order, so that we don't accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
