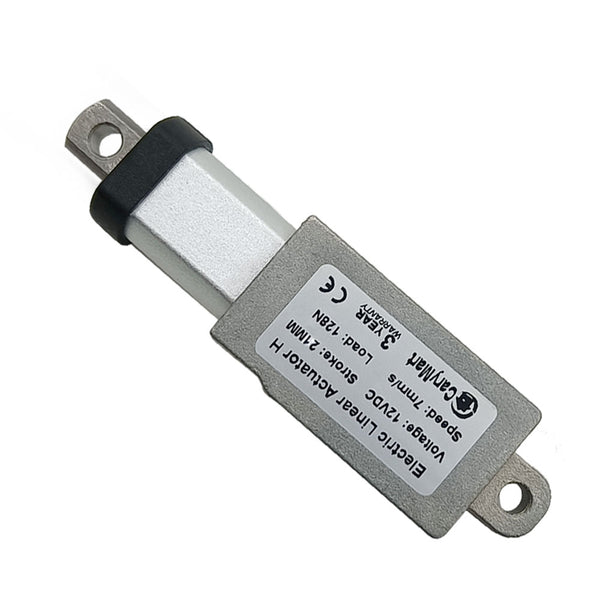

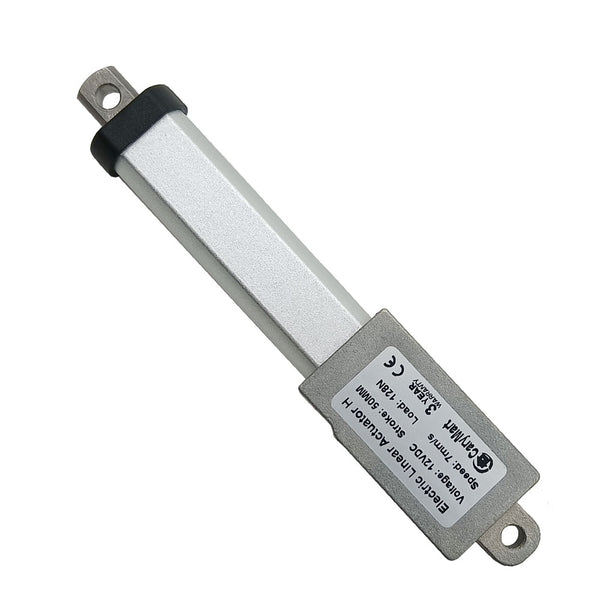

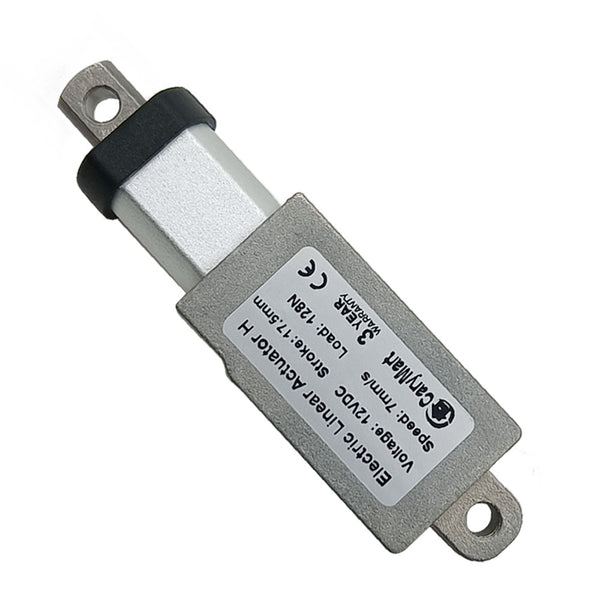

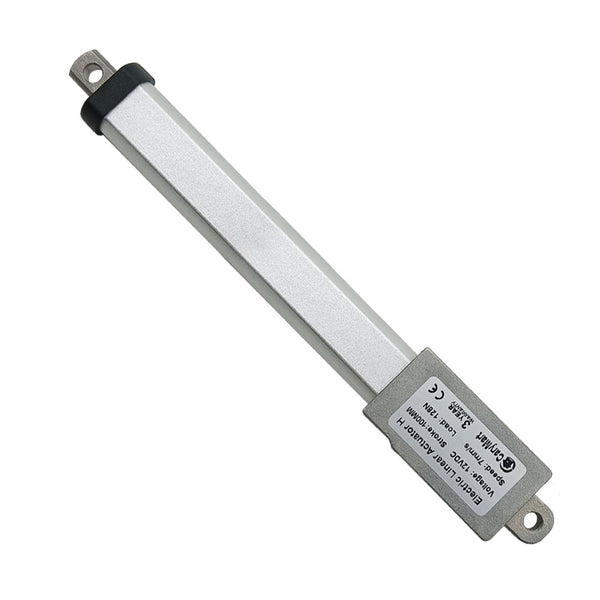

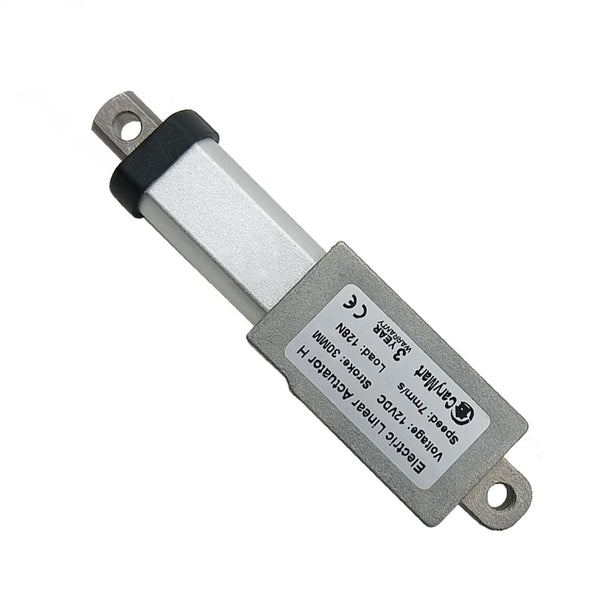

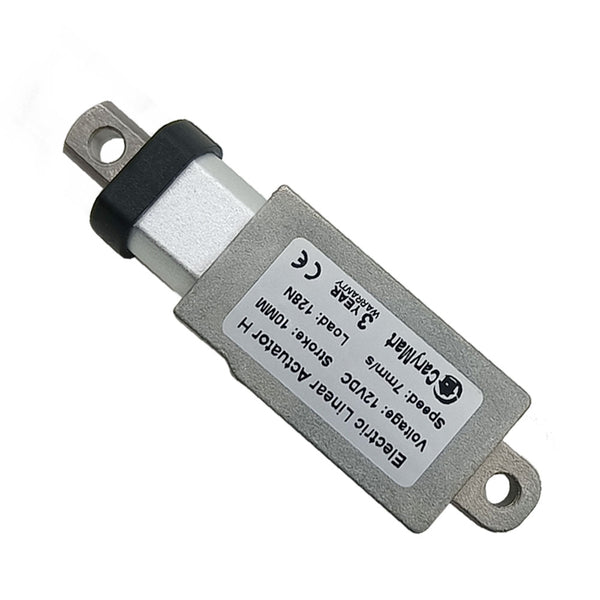

Micro Linear Actuator H

These miniature linear actuators are small, light, quiet and very durable. Suitable for applications that require limited space and minimal force. Mainly used for small doors, windows, furniture, medical & health equipment, agricultural machinery, vehicles, ships, drones, aircraft models, car models, ship models, robotics, remote controls (RC) and so on. It can open, close, push, pull, rise and drop these devices.

Specifications:
IP rating: IP54
Working voltage: 12V DC
Strong thrust, up to 188N / 19 Kgs / 42 lbs
Multiple stroke options, from 10 mm to 100mm
Multiple speed options, from 5 mm/second to 150 mm/second

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

How do you control a linear actuator? Harnessing manual controllers to control linear actuators
Please click here: https://www.electric-linear-actuators.com/blogs/news-1/how-do-you-control-a-linear-actuator-manual-control-linear-actuators


We can provide 3D files in STEP format for linear actuators. Please contact us by e-mail if you need them.

Video :

Promotional Video of Electric Linear Actuator H

How to use the Remote Control Set to Control the Electric Linear Actuators (Model 0020317)

Use the Wireless Controller to Remotely Control the Linear Actuator Speed (Model 0020153)

Control two Electric Linear Actuators with a Remote Switch (Model 0020503)

Use 4 Way WIFI Remote Switch to Control TWO Electric Linear Actuator (Model 0022015)

How to use the Hand Controller to Control Linear Actuator (Model 0043012)

How to use the Toggle Switch to Control the Electric Linear Actuator (Model 0043013)

How to Connect Two External Limit Switches to Electric Linear Actuator (model 0010013)

Linear Actuator Packaging

Linear Actuator Unpackaging
