DIY Automatic Door Open with Linear Actuator
How does electric linear actuator work ?
Electric linear actuator offers precise control over linear motion, can be easily automated, and are suitable for both small-scale and large-scale applications. An electric linear actuator is a device that converts the rotary motion into the linear motion. This conversion of motion is done with the help of a gearbox and a lead screw. The electric linear actuator is composed of 5 main components: motor, limit switches, lead screw, gears set and stroke rod. Please read the article for details: electric linear actuator working principle.
How to Choose the Right Linear Actuator for your Trap Door ?
If your trap door weighs 100 kg and you want to use a linear actuator to
open it, you need to calculate the actual force acting on the linear
actuator according to your installation method. This force is usually 2-5
times the weight of the trap door.
Please provide us with the installation diagram marked with specific
dimensions and weights, and indicate the correct installation position of
the linear actuator and the corresponding dimensions. We first need to
conduct a force analysis, and then calculate the stroke, thrust, and speed,
and finally recommend a suitable model for you.
You can also read the following articles for more information:
How to Choose the Suitable Linear Actuator for the Trapdoor?

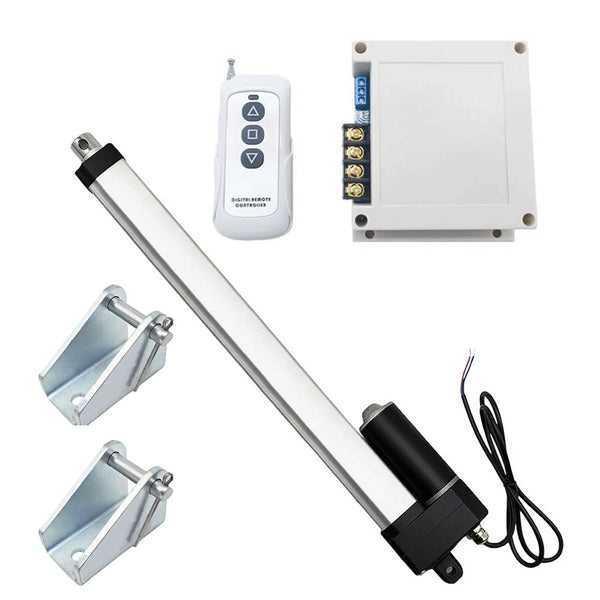

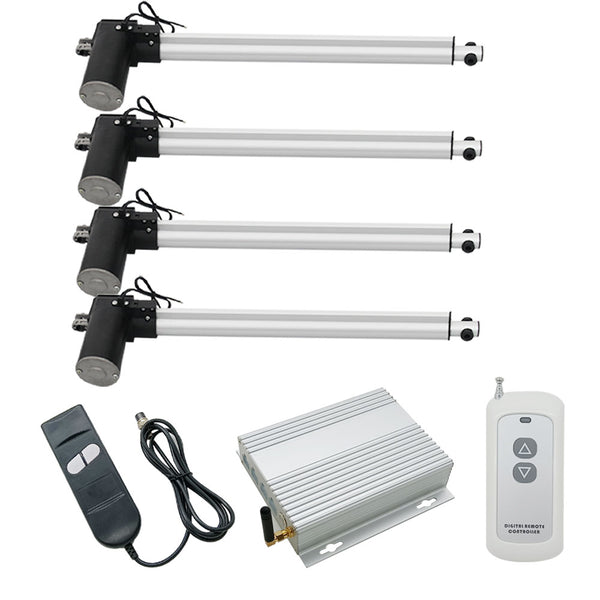

Linear Actuator Synchronous Control Kit
The kit includes two or four linear actuator, a synchronous controller a control handle and a wireless remote control. You can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously, for example two or four electric actuators.. They work completely in sync without any difference..Mainly used for doors, windows, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment. It can open, close, push, pull, lift and descend these devices.It can replace hydraulic and pneumatic products to save power consumption.

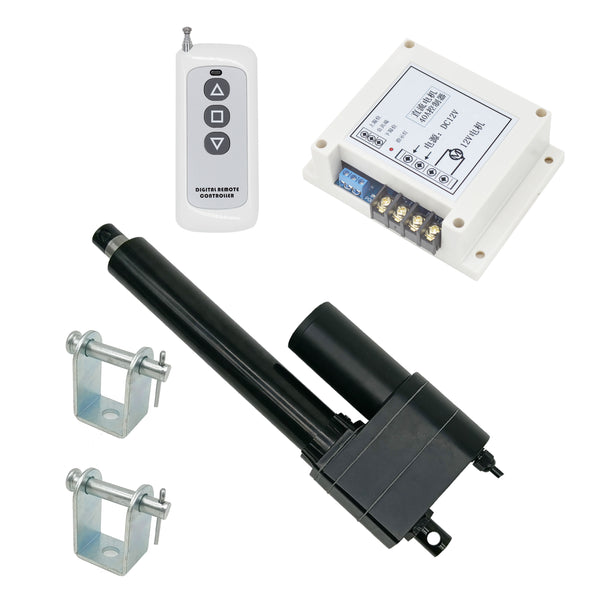

Linear Actuator Remote Kit
The kit includes a linear actuator and a wireless remote control. You can operate the extension or retraction movement of the linear actuator via the remote control.Mainly used for doors, windows, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment. It can open, close, push, pull, lift and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

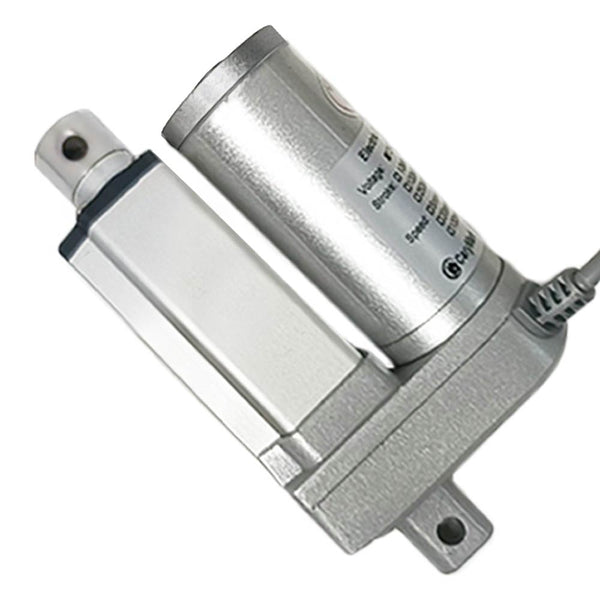

Mini Industrial Linear Actuator A 2000N
From $50.00
From $55.00

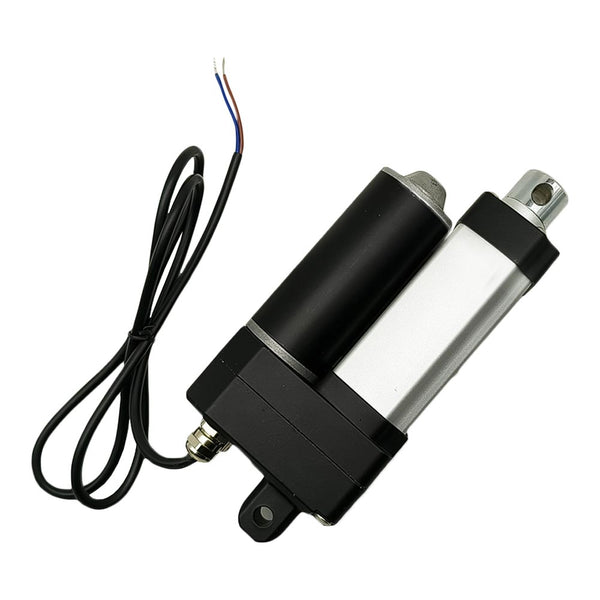

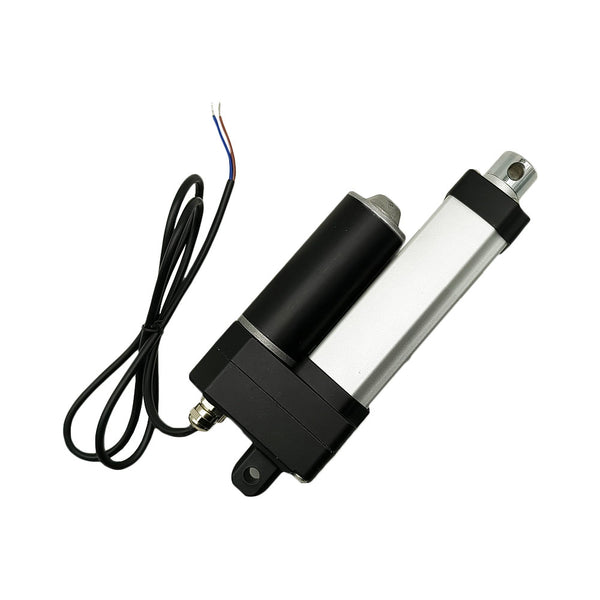

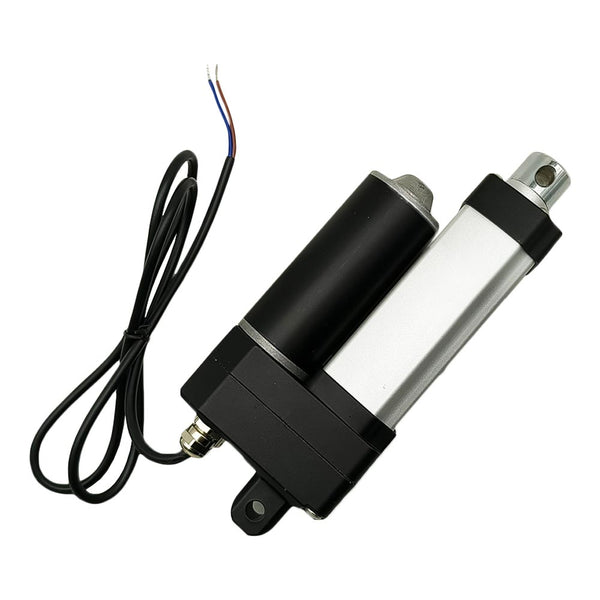

Waterproof & Quiet Linear Actuator IP67 J 3500N
From $70.00
From $70.00
Industrial Linear Actuator B 6000N
Regular price
$50.00
Regular price
$55.00
Heavy Duty Linear Actuator 8000N
Regular price
$320.00
Regular price
$330.00
High Performance Linear Actuator F 12000N
Regular price
$340.00
Regular price
$350.00
Linear Actuator with Remote Control
Synchronized Linear Actuators
From $355.00
From $475.00
Application of Electric Linear Actuator
