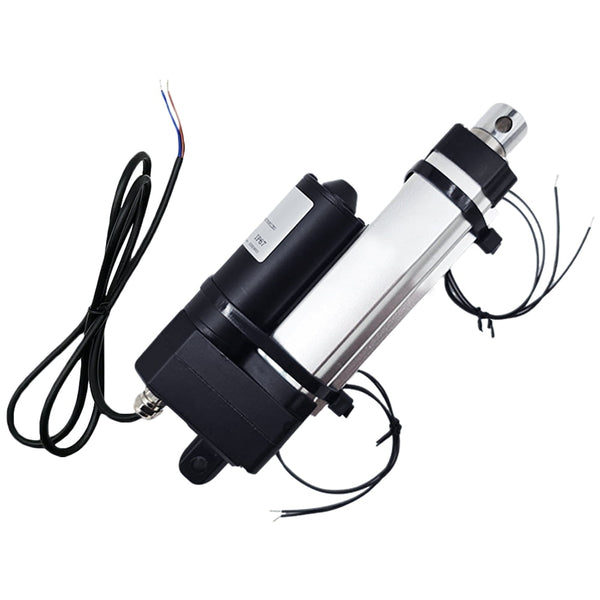

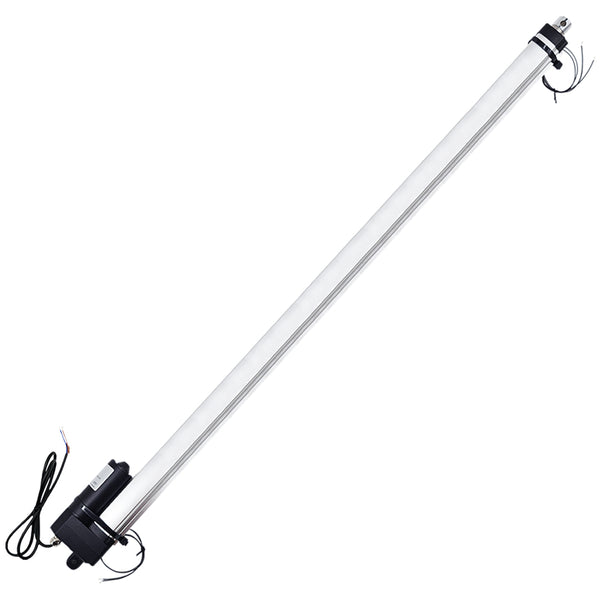

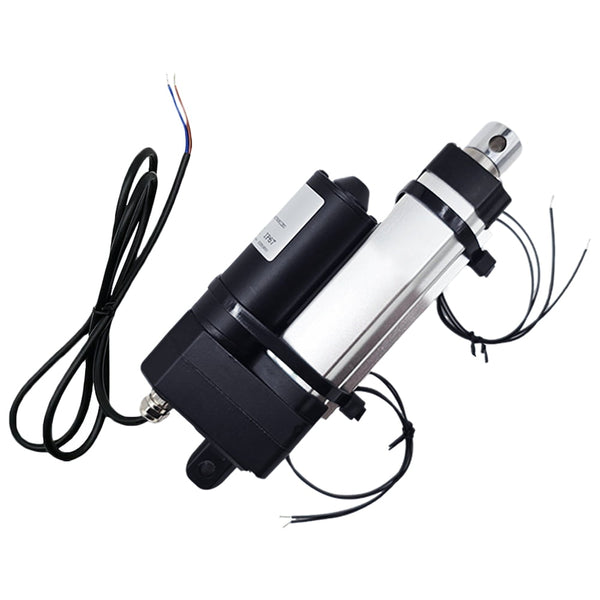

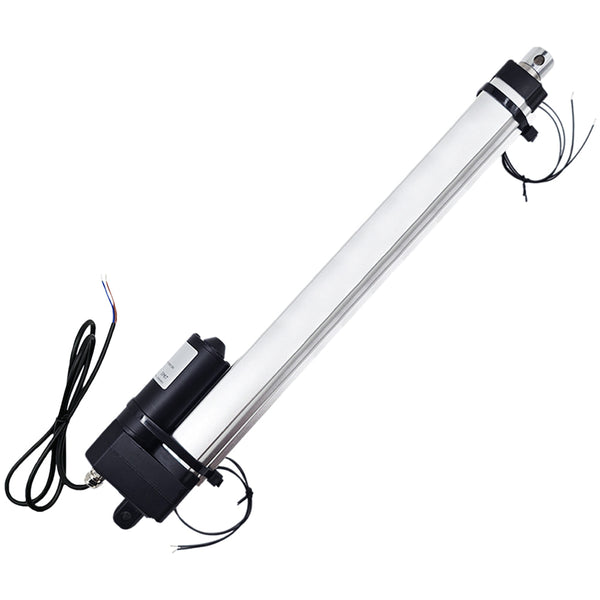

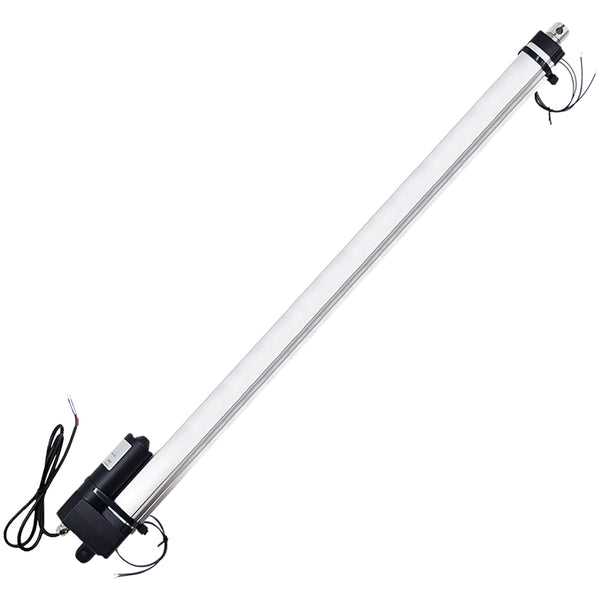

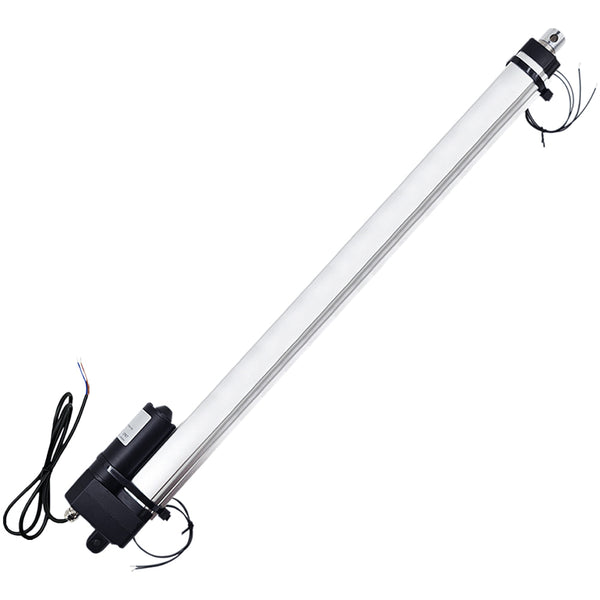

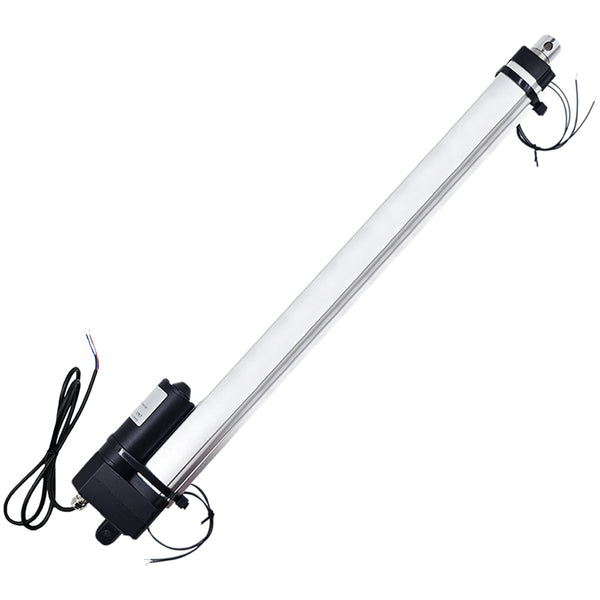

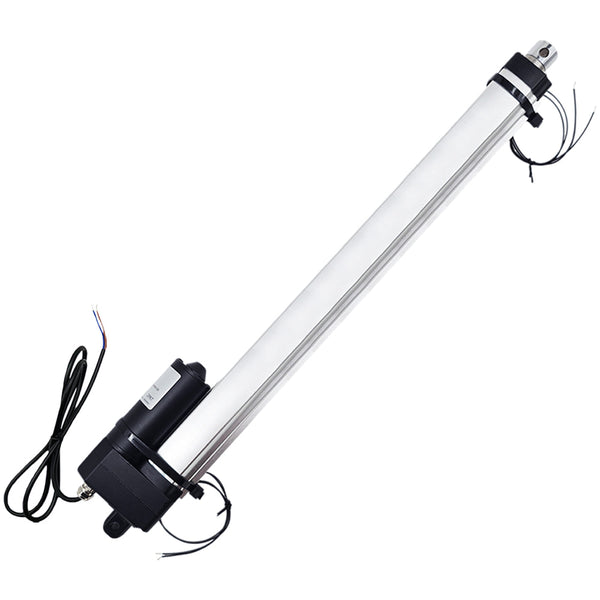

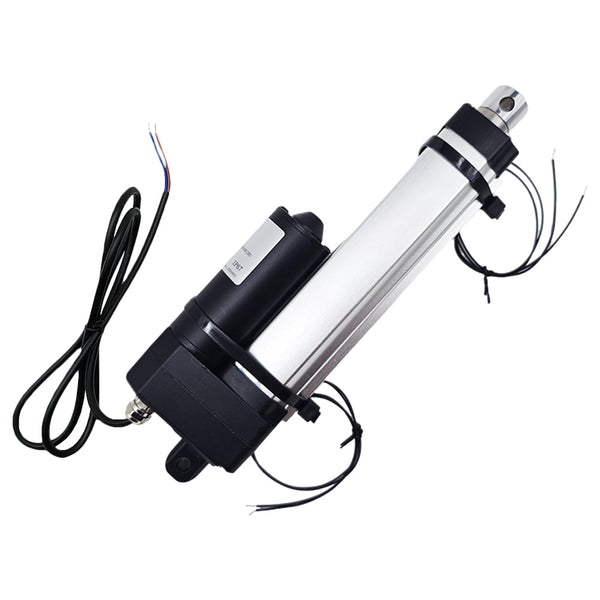

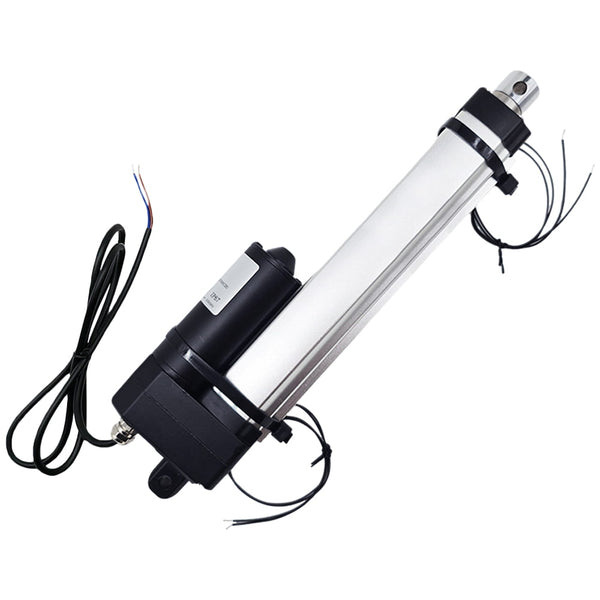

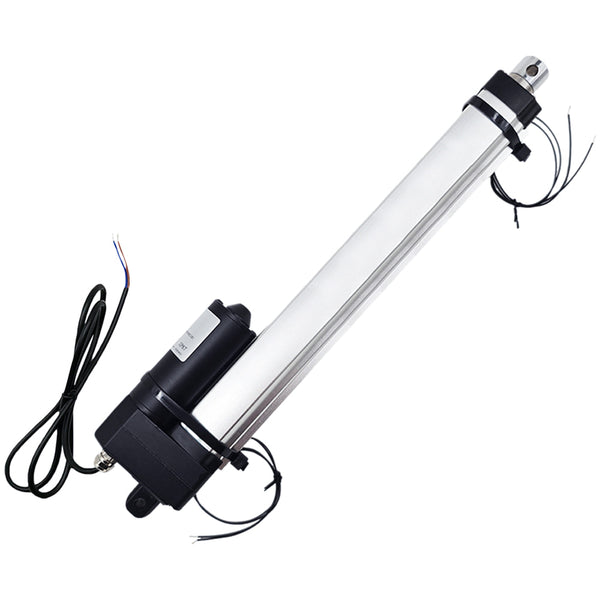

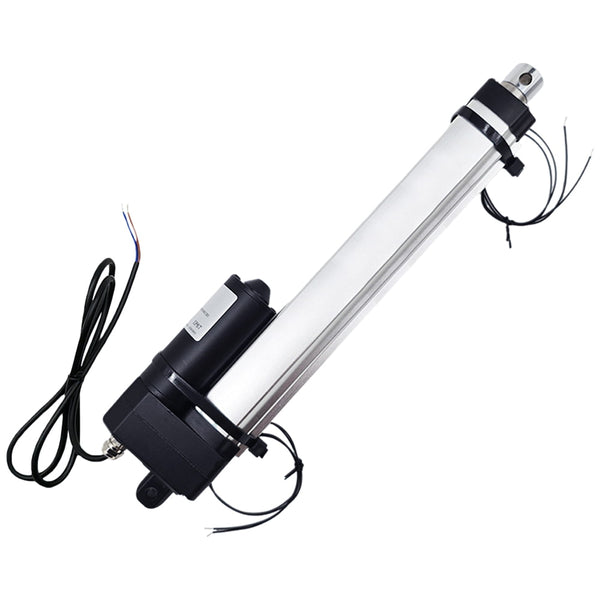

Max 3500N J4 Quiet Linear Actuator Adjustable Stroke – IP67 Waterproof with Magnetic Reed Switch
This is a series of IP67 waterproof and low noise linear actuators with
adjustable stroke. All models are equipped with two freely slidable external
normally closed magnetic switches. By adjusting the position of these two
magnetic switches, each linear actuator can be controlled to work within the
set stroke length. For example, for a linear actuator with a stroke of
500MM, you can set it to move within a stroke range of 150MM to 400MM.
Specifications:
IP rating: IP67 (Ideal for use outdoors or in the rain, but it is not suitable for use submerged in water.)
Service life: approx. 25,000 cycles
Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the
most commonly used working voltage.
Strong thrust, up to 3500 N / 350 kg / 780 lbs at 5mm/s
Optional speed: 5±1mm/s, 6.5±1mm/s, 10±2mm/s, 13±2mm/s, 16±3mm/s
Multiple stroke options, from 0.4 ~ 60 inches or 10 ~ 1500 mm
We can customize any stroke length from 10mm to 1500mm, such as 380mm,
750mm, 1250mm and so on.
With waterproof breather valve, ideal for use outdoors or in the rain.
Operating noise: ≤45dB (Linear actuators with different parameters will have different noise levels.)
Equipped with two external normally closed magnetic switches that can slide freely, by adjusting the position of these two normally closed magnetic switches, the linear actuator can be controlled to work within the set stroke length.
You can control this linear actuator by a remote switch.
