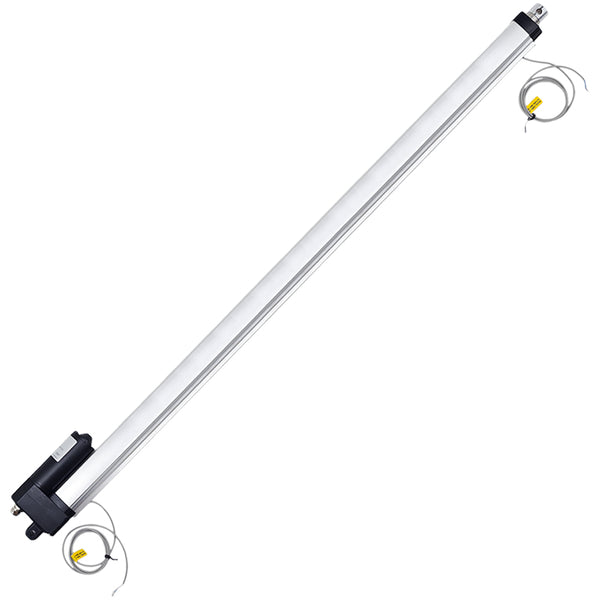

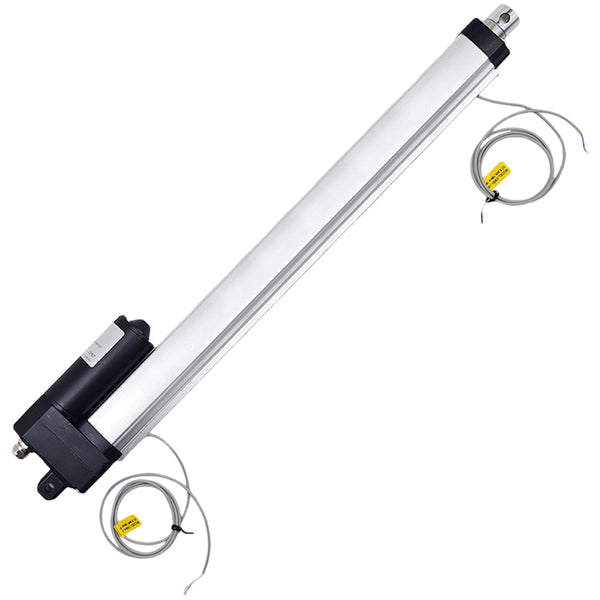

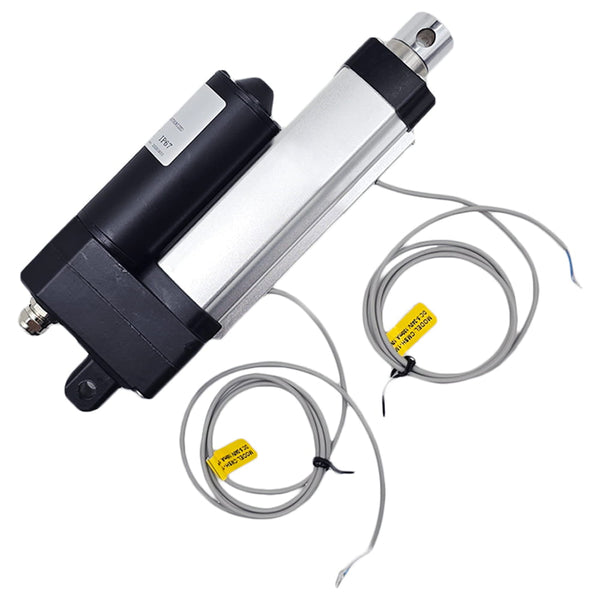

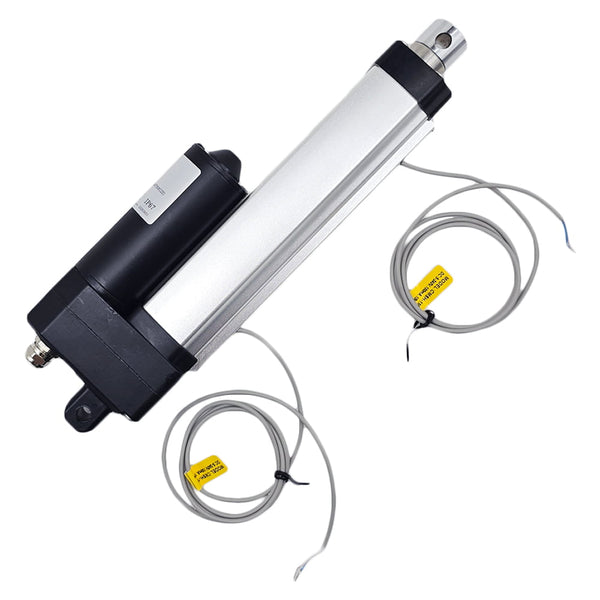

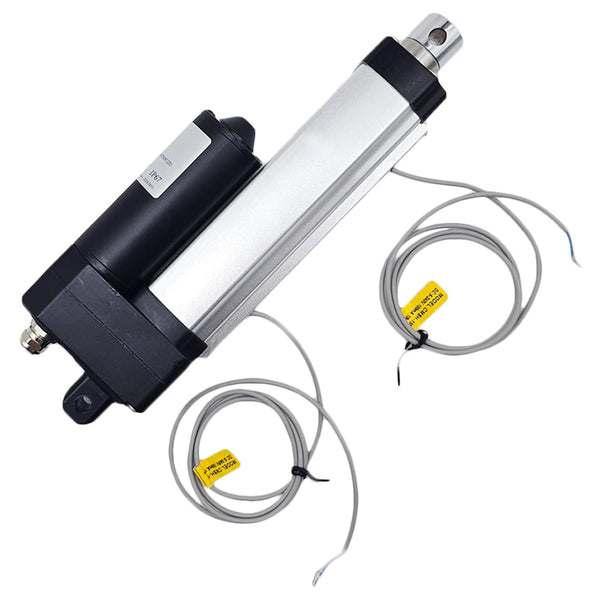

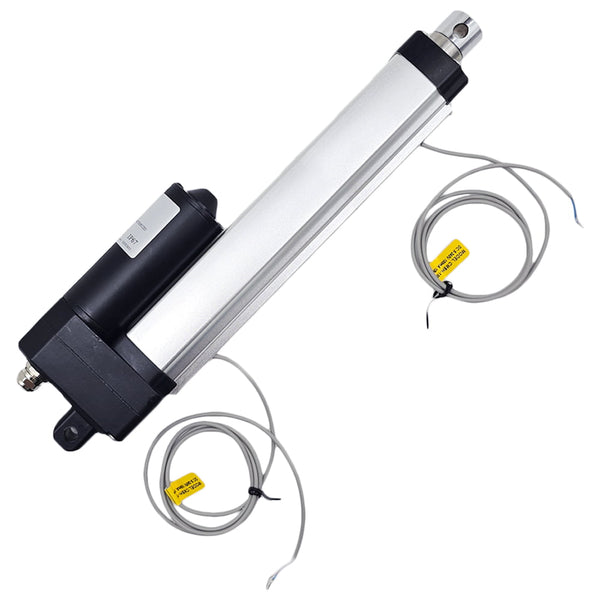

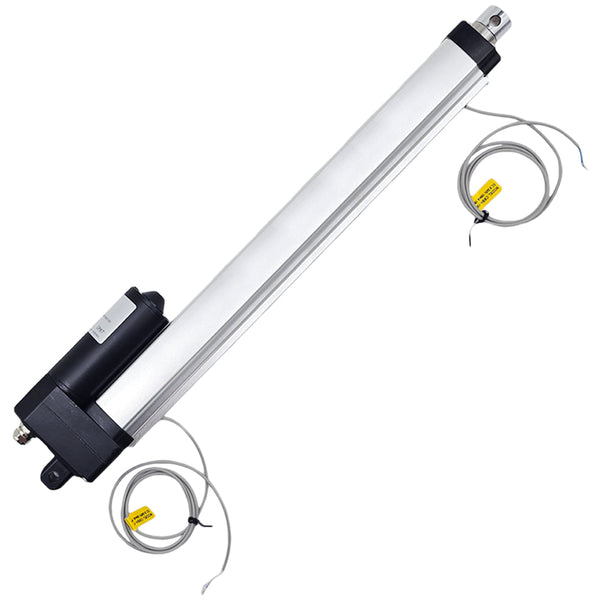

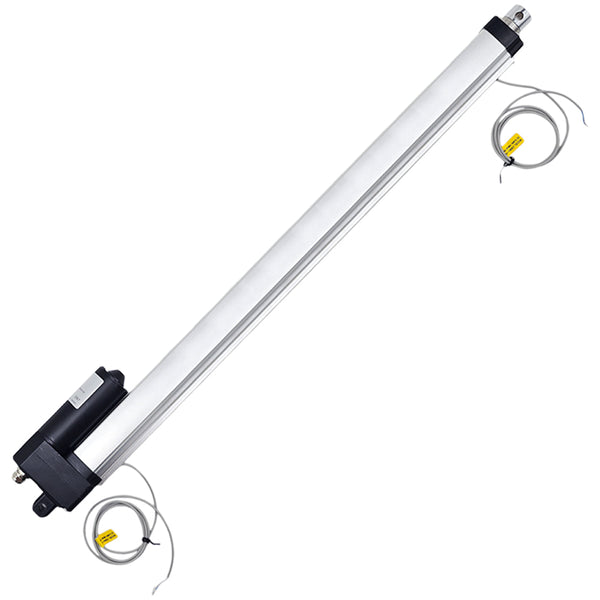

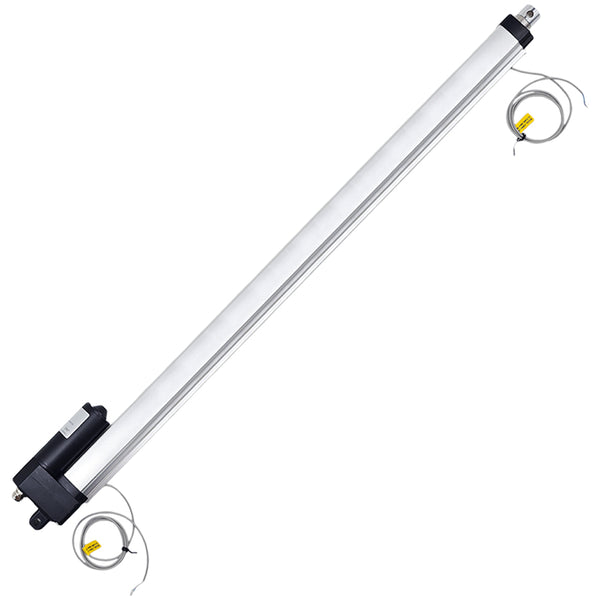

Max Thrust 3500N J3 Linear Actuator Adjustable Stroke – IP67 Waterproof with Magnetic Switch Sensor
Specifications:
IP rating: IP67 (Ideal for use outdoors or in the rain, but it is not suitable for use submerged in water.)
Service life: approx. 25,000 cycles
Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the most commonly used working voltage.
Strong thrust, up to 3500N / 350Kgs / 780lbs at 5mm/s
Three speed options, 5±1mm/s, 10±2mm/s, and 16±3mm/s
Multiple stroke options, from 0.4 ~ 60 inches or 10 ~ 1500 mm
We can customize any stroke length from 10mm to 1500mm, such as 380mm, 750mm, 1250mm and so on.
With waterproof breather valve, ideal for use outdoors or in the rain.
Operating noise: ≤45dB (Linear actuators with different parameters will have different noise levels.)
Equipped with two external magnetic switches that can slide freely, by adjusting the position of these two magnetic switches, the linear actuator can be controlled to work within the set stroke length.
External magnetic switches need to be used in conjunction with the magnetic switch controller.
Notice:
The linear actuators are customized and not in stock, and we need to spend 3~7 working days to produce them according to the specified parameters in your order, so that we don't accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
