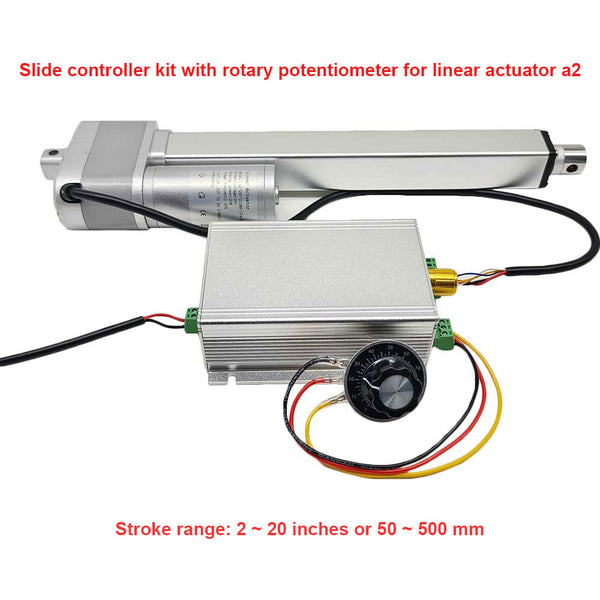

This is a linear actuator sliding controller kit, including an A2 type linear actuator with a built-in potentiometer and a stroke range of 50-500mm, a sliding controller, and an external potentiometer (Sliding potentiometer or Rotary potentiometer optional).
If you connect the DC linear actuator to this sliding controller, you can operate the linear actuator to extend or retract with the potentiometer.
Note:
The stroke range of linear actuators is 2 ~ 20 inches or 50 ~ 500 mm. We can also customize any stroke length from 50mm to 500mm, such as 75mm, 360mm, 470mm and so on.
- Actuators with a 50 mm stroke are available in speeds from 5 mm/s to 25 mm/s
- Actuators with a 100 mm stroke are available in speeds from 5 mm/s to 40 mm/s
- Actuators with a 150 mm stroke are available in speeds from 5 mm/s to 55 mm/s
- Actuators with a 200-500 mm stroke are available in speeds from 5 mm/s to 160 mm/s

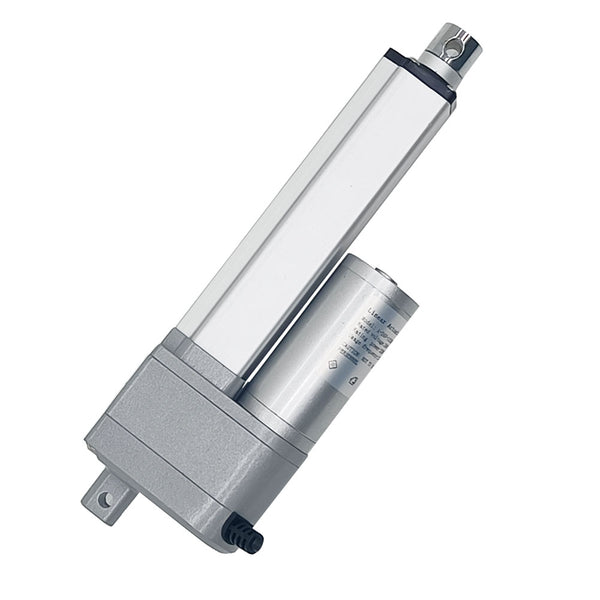

The Information for Electric Linear Actuator
Actuator Introduction
The linear actuator has a built-in potentiometer with three output wires
connected. When the linear actuator moves, the resistance value between the
output lines changes accordingly. In this way, we can obtain the
corresponding movement position of the linear actuator by measuring the
resistance value.
Actuator Key Features
- High-quality products and high-quality services
- New housing design, high working stability
- Metal housing, able to work in very harsh environments
- Metal gearbox, high strength wear-resistant gear
- Aluminum alloy telescopic tube and outer tube, good corrosion resistant
- Heavy duty design, high-power DC motor
- Strong thrust, up to 2000N / 200kg / 450lbs at 5mm/s
- Multiple speed options, from 5 mm/second to 160 mm/second
- Multiple stroke options, from 50 mm to 500 mm, any stroke within this range can be customized (e.g. 75 mm, 360 mm, 470 mm)
- Advanced waterproof and dustproof technology
- Low power consumption and low noise
- Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
- With a built-in potentiometer
- Manual operating device is optional, allowing you to extend or retract the telescopic rod of the linear actuator with hand tools
- The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization
- The orientation of the front connector is default; we can rotate it 90 degrees during the production according to the customer's needs
- With auto-locking capability to hold load position after stopping, and no power supply is required
- Maintenance-free
Working Principle
The electric linear actuator has a five-core cable.
1. The red and black lines are two power lines of the electric linear actuator.
Connect the DC power supply to two power wires of the electric linear actuator. When linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.
2. The white, blue and yellow wires are three output wires of the potentiometer.
The blue and yellow wires are connected to two terminals of the potentiometer, it is a fixed resistance value.
When the linear actuator moves, the resistance value between white wire and yellow wire or white wire and blue wire changes accordingly. In this way, we can obtain the corresponding movement position of the linear actuator by measuring the resistance value.
When the linear actuator is extended outwards, the resistance value between white and blue wires will decrease accordingly, and the resistance value between white and yellow wires will increase accordingly.
When the linear actuator is retracted inward, the resistance value between white and blue wires will increase accordingly, and the resistance value between white and yellow wires will decrease accordingly.
For example, a linear actuator with a stroke of 200mm and a built-in potentiometer of 10K ohms.
When the linear actuator is fully retracted, the resistance value between white wire and yellow wire is 0.8K ohms, and the resistance value between white wire and blue wire is 9.2K ohms.
When the linear actuator is extended to the 100mm position, the resistance value between white wire and yellow wire is 4.5K ohms, and the resistance value between white wire and blue wire is 5.5K ohms.
When the linear actuator is fully extended, the resistance value between white wire and yellow wire is 9.1K ohms, and the resistance value between white wire and blue wire is 0.8K ohms.
Actuator Specifications
| Parameter | Value |
|---|---|
| Working Voltage | DC 24V |
| Stroke Range | 2 ~ 20 inches or 50 ~ 500 mm |
| Optional Speed (No-load) | 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 25±5mm/s, 40±8mm/s, 55±10mm/s, 65±12mm/s, 100±15mm/s, 160±20mm/s (The actual working speed will gradually slow down as the load increases.) |
| Max Load Capacity | 2000N / 200kg / 450lbs at 5mm/s (Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.) |
| No-load Current | 0.3~0.5A at 24V |
| Full Load Current | 1.5~3A at 24V |
| Recommended Power Supply | 24V/3A |
| Shaft Diameter | 20mm [0.787 in] |
| Front / Rear Connector Mounting Hole Diameter | 6mm [0.236 in] |
| Housing Material | Aluminum Alloy |
| Stroke Rod Material | Aluminum Alloy |
| Gear Material | Steel Alloy |
| Motor Type | Brushed DC Motor |
| Built-in Potentiometer | 10K ohms (You can specify other resistance values) |
| Duty Cycle | 20%, max 5mins continuous use |
| Service Life | approx. 25,000 cycles |
| Power Cable | Five-core Cable (Two power wires and three potentiometer output wires) |
| Linear Actuator Cable Length | 500±10%mm [20 in] (The length can also be customized according to your specific needs) |
| Certifications | CE |
| Environment Temperature | -26℃ to 85℃ |
| Operating Noise | about 46dB~56dB (Linear actuators with different parameters will have different noise levels.) |
| IP Rating | IP65 |
Different Speeds and Corresponding Maximum Thrust
50 mm Actuator Corresponding Speed and Maximum Thrust
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
|---|---|---|---|
| 5mm/s | 2.5mm/s | 2000 N / 200 kg / 450 lbs | 2200 N / 220 kg / 490 lbs |
| 10mm/s | 5mm/s | 1000 N / 100 kg / 200 lbs | 1100 N / 110 kg / 250 lbs |
| 15mm/s | 7.5mm/s | 800 N / 80 kg / 180 lbs | 900 N / 90 kg / 200 lbs |
| 20mm/s | 10mm/s | 700 N / 70 kg / 160 lbs | 800 N / 80 kg / 180 lbs |
| 25mm/s | 13mm/s | 600 N / 60 kg / 130 lbs | 700 N / 70 kg / 160 lbs |
100 mm Actuator Corresponding Speed and Maximum Thrust
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
|---|---|---|---|
| 5mm/s | 2.5mm/s | 2000 N / 200 kg / 450 lbs | 2200 N / 220 kg / 490 lbs |
| 10mm/s | 5mm/s | 1000 N / 100 kg / 200 lbs | 1100 N / 110 kg / 250 lbs |
| 15mm/s | 7.5mm/s | 800 N / 80 kg / 180 lbs | 900 N / 90 kg / 200 lbs |
| 20mm/s | 10mm/s | 700 N / 70 kg / 160 lbs | 800 N / 80 kg / 180 lbs |
| 25mm/s | 13mm/s | 600 N / 60 kg / 130 lbs | 700 N / 70 kg / 160 lbs |
| 40mm/s | 20mm/s | 350 N / 35 kg / 80 lbs | 400 N / 40 kg / 90 lbs |
150 mm Actuator Corresponding Speed and Maximum Thrust
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
|---|---|---|---|
| 5mm/s | 2.5mm/s | 2000 N / 200 kg / 450 lbs | 2200 N / 220 kg / 490 lbs |
| 10mm/s | 5mm/s | 1000 N / 100 kg / 200 lbs | 1100 N / 110 kg / 250 lbs |
| 15mm/s | 7.5mm/s | 800 N / 80 kg / 180 lbs | 900 N / 90 kg / 200 lbs |
| 20mm/s | 10mm/s | 700 N / 70 kg / 160 lbs | 800 N / 80 kg / 180 lbs |
| 25mm/s | 13mm/s | 600 N / 60 kg / 130 lbs | 700 N / 70 kg / 160 lbs |
| 40mm/s | 20mm/s | 350 N / 35 kg / 80 lbs | 400 N / 40 kg / 90 lbs |
| 55mm/s | 28mm/s | 250 N / 25 kg / 60 lbs | 300 N / 30 kg / 70 lbs |
200-500 mm Actuator Corresponding Speed and Maximum Thrust
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
|---|---|---|---|
| 5mm/s | 2.5mm/s | 2000 N / 200 kg / 450 lbs | 2200 N / 220 kg / 490 lbs |
| 10mm/s | 5mm/s | 1000 N / 100 kg / 200 lbs | 1100 N / 110 kg / 250 lbs |
| 15mm/s | 7.5mm/s | 800 N / 80 kg / 180 lbs | 900 N / 90 kg / 200 lbs |
| 20mm/s | 10mm/s | 700 N / 70 kg / 160 lbs | 800 N / 80 kg / 180 lbs |
| 25mm/s | 13mm/s | 600 N / 60 kg / 130 lbs | 700 N / 70 kg / 160 lbs |
| 40mm/s | 20mm/s | 350 N / 35 kg / 80 lbs | 400 N / 40 kg / 90 lbs |
| 55mm/s | 28mm/s | 250 N / 25 kg / 60 lbs | 300 N / 30 kg / 70 lbs |
| 65mm/s | 33mm/s | 200 N / 20 kg / 50 lbs | 250 N / 25 kg / 60 lbs |
| 100mm/s | 50mm/s | 150 N / 15 kg / 30 lbs | 100 N / 10 kg / 20 lbs |
| 160mm/s | 80mm/s | 100 N / 10 kg / 20 lbs | 50 N / 5 kg / 10 lbs |
Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
6. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

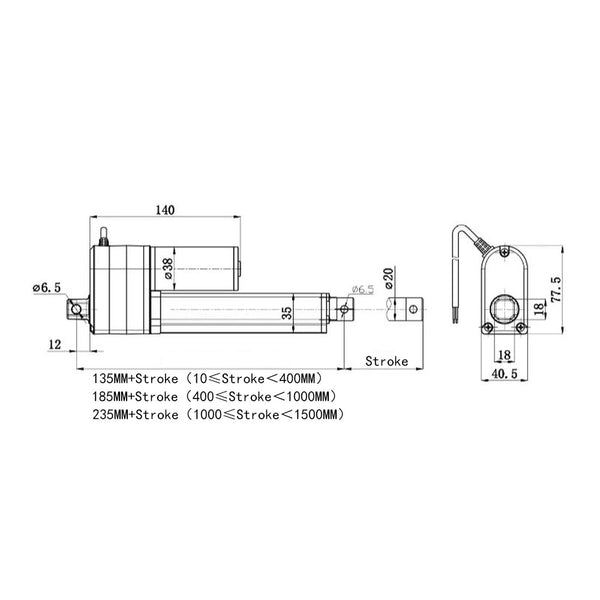

Installed Length and Stroke Customization
The linear actuator has two built-in limit switches, When the linear
actuator is fully retracted or fully extended, it will stop
automatically.
We can adjust the position of the built-in limit switches during
production to meet customer-specified stroke and retraction lengths.
Example for a linear actuator with a 250 mm stroke:
Retraction Length: 385 mm (center distance between two mounting holes
when the linear actuator is fully retracted)
Extension Length: 635 mm (center distance between two mounting holes
when the linear actuator is fully extended)
Custom Rules:
1) The specified stroke must be less than the standard stroke of the
ordered actuator. For example, a specified stroke of 230 mm is less than
the standard stroke of the ordered actuator (250 mm). In this case, the
retraction length will be reduced by an equivalent value, resulting in a
retraction length of 365 mm. Of course, you can also choose to retain
the original standard retraction length of 385 mm.
2) The specified retraction length must be less than the standard
retraction length of the ordered actuator. For example, a specified
retraction length of 360 mm is less than the standard retraction length
of the ordered actuator (385 mm). In this case, the stroke must also be
reduced by an equivalent value, resulting in an effective stroke of 225
mm.

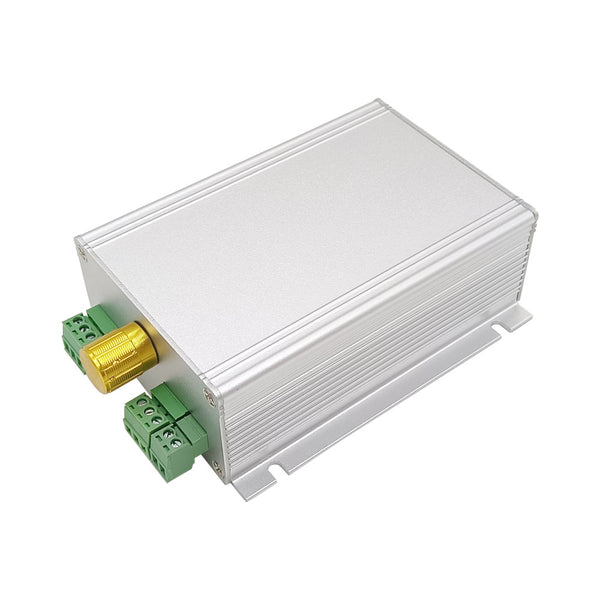

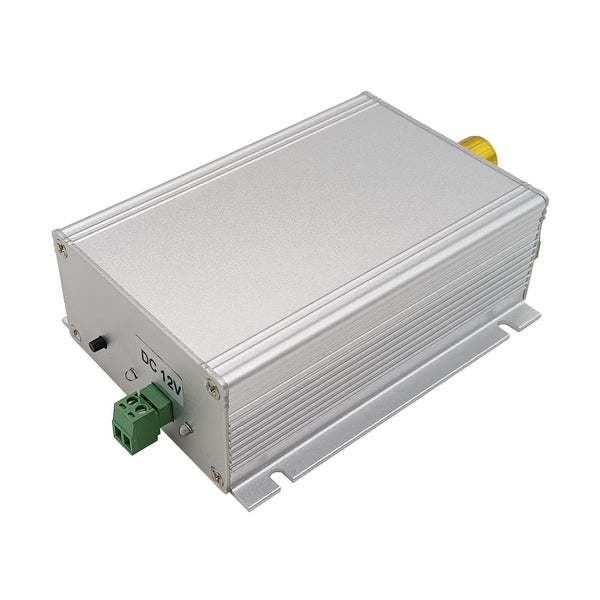

The Information for Slide Controller with Potentiometer
Controller Specifications
| Parameter | Value |
|---|---|
| Model | 0043090 |
| Operating Voltage | 24V DC |
| Output Voltage | 24V DC |
| Rated current | 10A |
| Size of controller | 113 x 88 x 39 mm (4.5 x 3.5 x 1.5 inches) |
| Multiple speed options | 5mm/s, 10mm/s, 15mm/s, 20mm/s, 30mm/s, 50mm/s, 100mm/s, 160mm/s |
| With a stroke control knob switch and a learning button | |
| With an externally connected 10K potentiometer | |
| Suitable for linear actuators type A2 with internal potentiometer | |
| The stroke of linear actuator A2 can be controlled by rotating the knob on the controller, or by operating the sliding potentiometer or rotary potentiometer connected to the controller | |

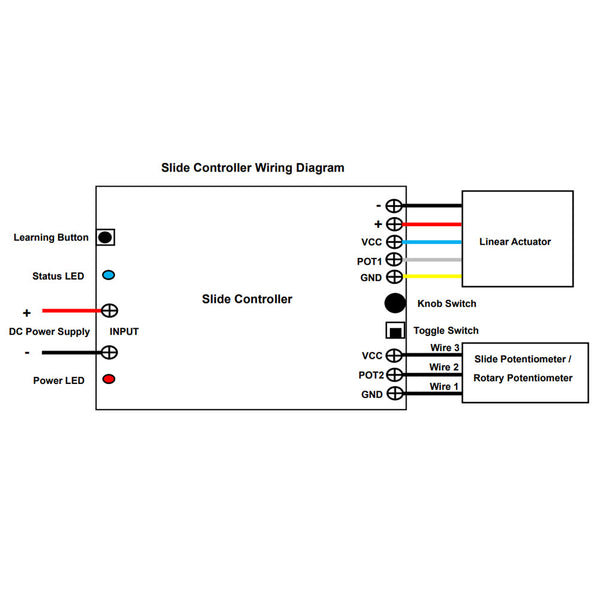

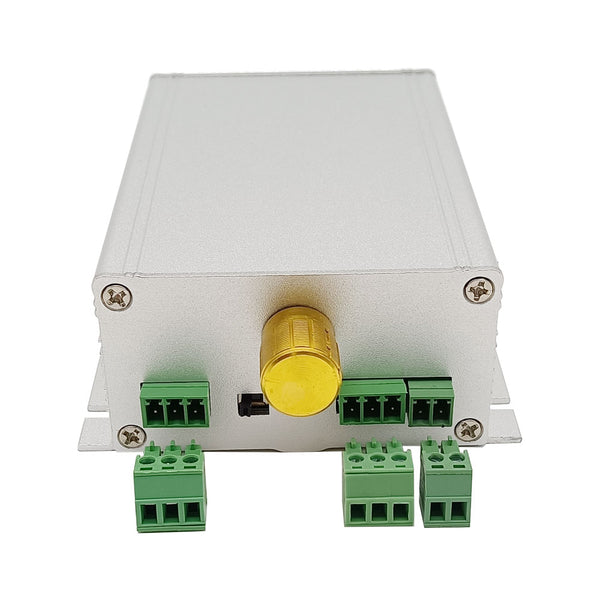

Wiring
If you want to control a 24V DC linear actuator, do as follows:

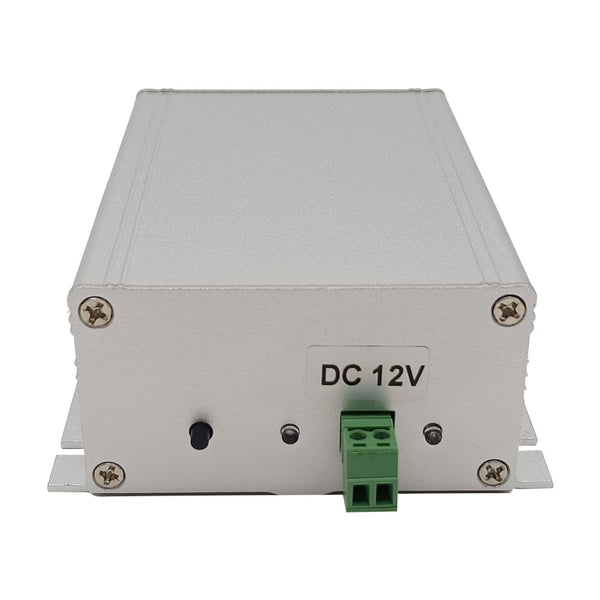

1) Connect the positive pole of DC power supply to the input terminal
<+> of the controller, and connect the negative pole of DC power supply
to the input terminal <-> of the controller.
2) Connect the five wires of the linear actuator to the controller in
the order of black, red, blue, white, and yellow, and you can exchange
the black and red wires of the linear actuator to change the moving
direction of linear actuator.

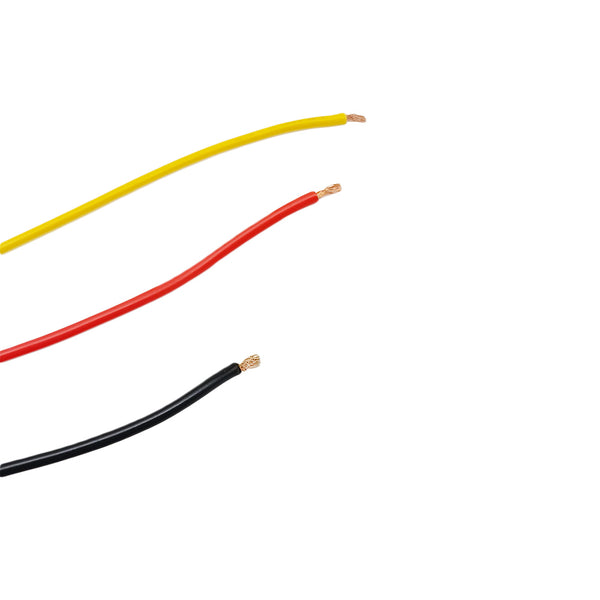

3) Connect three wires of the potentiometer to the controller according
to the connection diagram.
Controller Operation Actuator

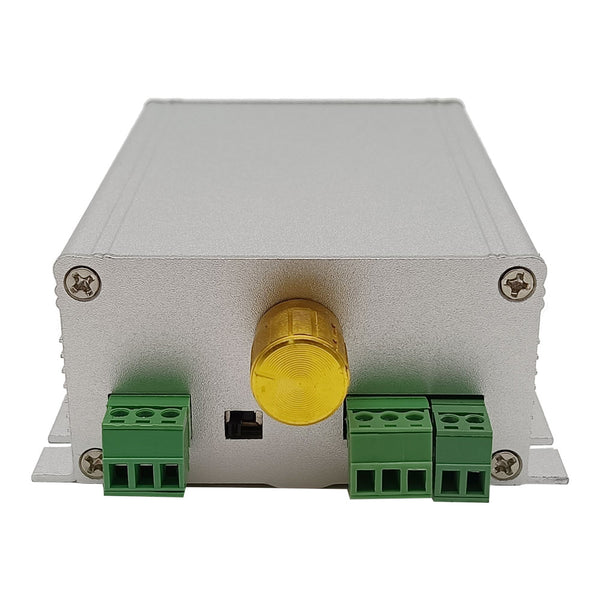

Toggle the toggle switch to the right, which means the linear actuator
is controlled by the knob switch.
Toggle the toggle switch to the left, which means the linear actuator is
controlled by the slide potentiometer.
1) The operation by the knob switch:
Turn the knob switch to a position in its travel, the linear actuator
will extend or retract to the corresponding position in its travel
accordingly.

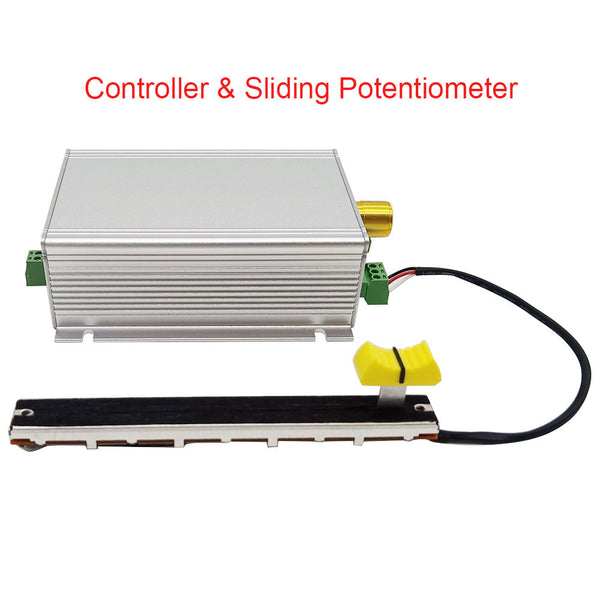

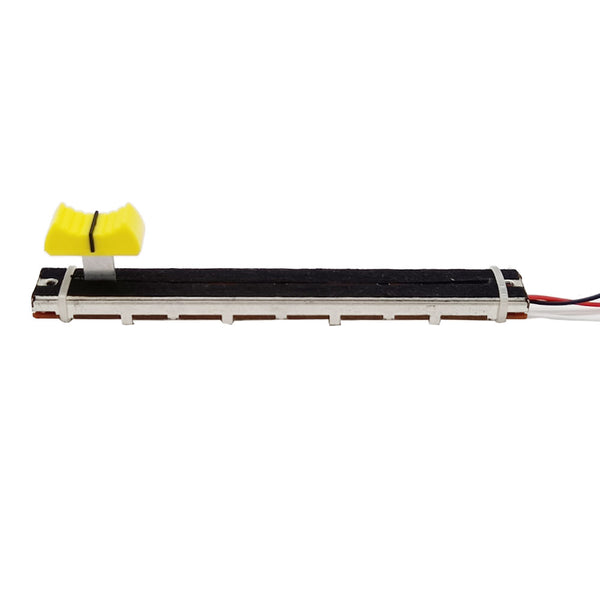

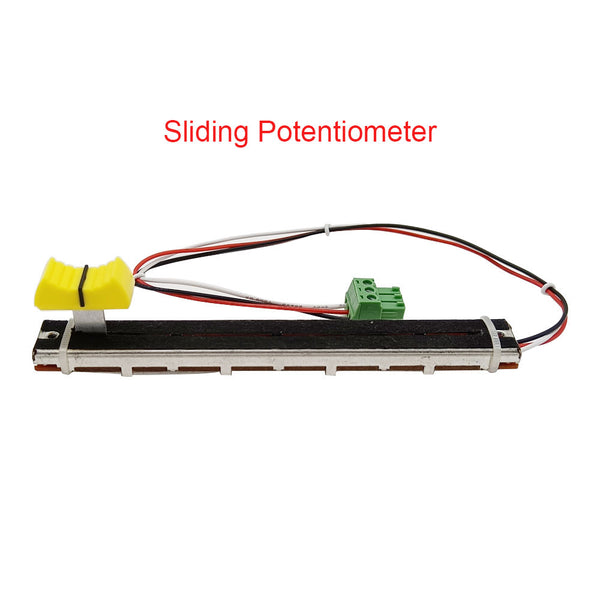

2) The operation by the slide potentiometer:
Slide the handle of the slide potentiometer to a position in its travel,
the linear actuator will extend or retract to the corresponding position
in its travel accordingly.

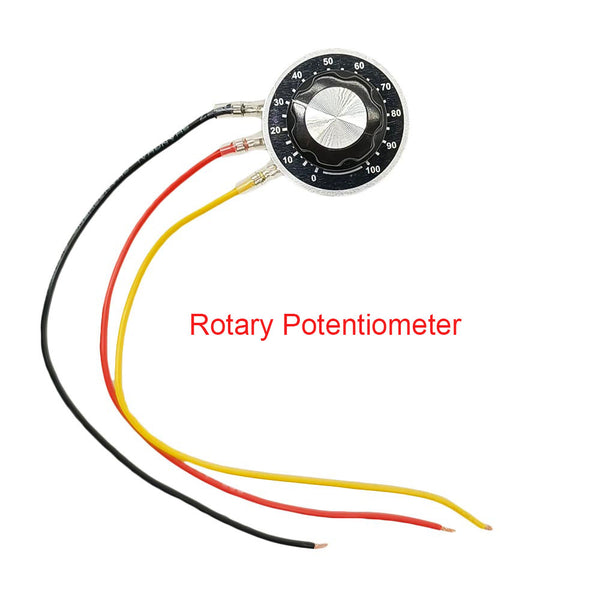

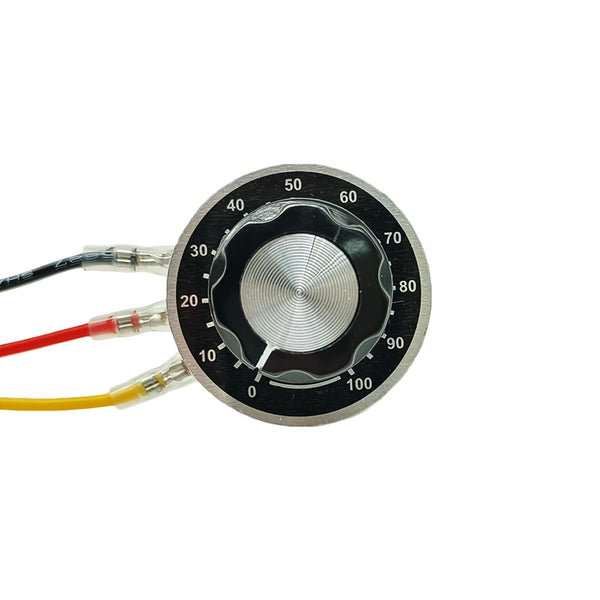

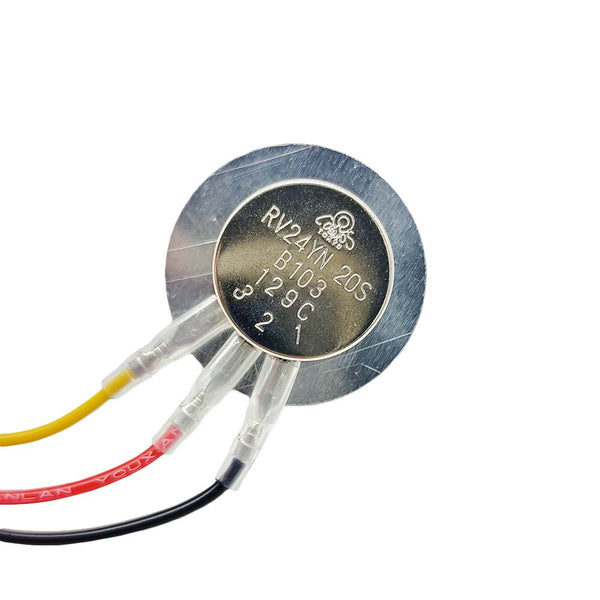

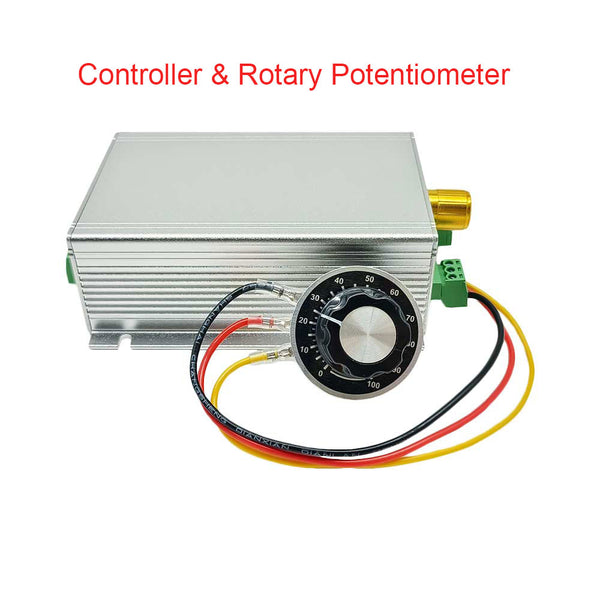

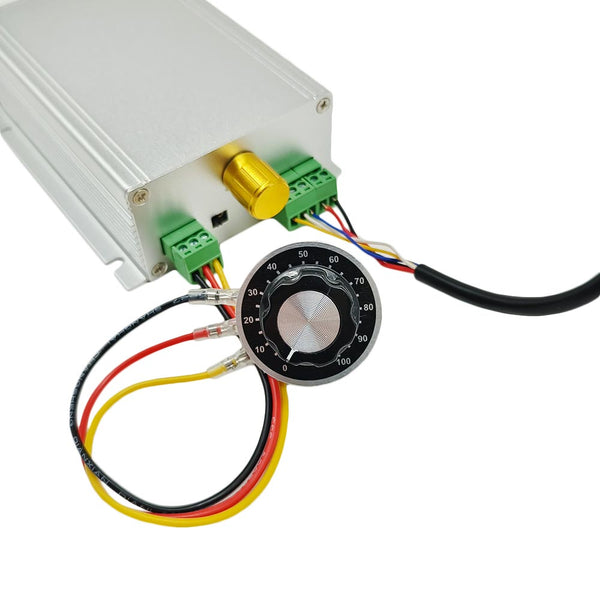

3) The operation by the rotary potentiometer:
The rotary potentiometer has a scale range from 0 to 100, which
corresponds to the percentage of the corresponding travel of the linear
actuator.
Turn the rotary potentiometer to a position in the scale, the linear
actuator will extend or retract to the corresponding position in its
travel accordingly.
When the linear actuator is stopped, the status LED flashes slowly; When
the linear actuator is extended or retracted, the status LED flashes
rapidly.
Note:
we have already paired the slide controller to the linear actuator, and you can directly operate the slide controller and the potentiometer to control the extension and retraction of the linear actuator.
Fixed Bracket and Accessories
1. Each linear actuator would require two mounting brackets , one to fix the head of linear actuator and another to fix the bottom of linear actuator. This kit does not contain fixed mounting brackets, please buy them from the drop down menu.
2. Compatible Mounting Brackets: Bracket A and Bracket C.
3. This linear actuator is also compatible with three flat mounting brackets: Head Fixed Mount Flat Bracket (Model 0043071) , Bottom Fixed Mount Flat Bracket (Model 0043072) and Fixed Mount Flat Base (Model 0043070) .

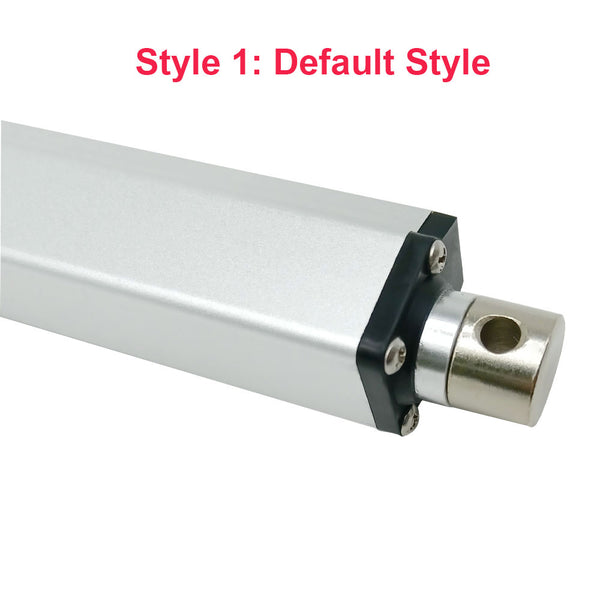

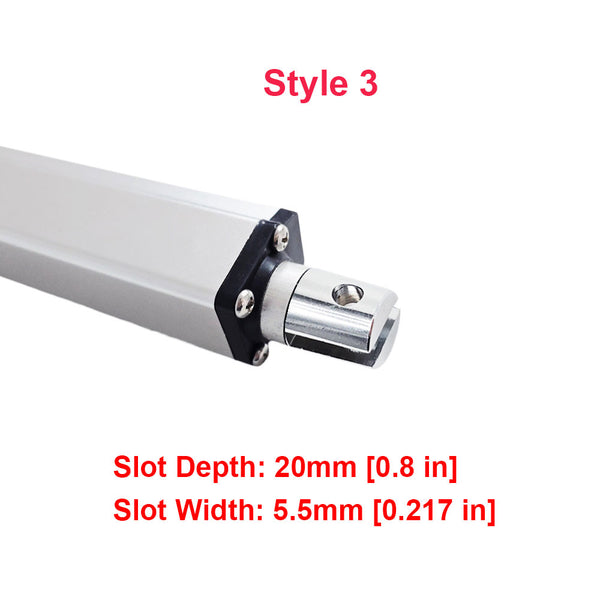

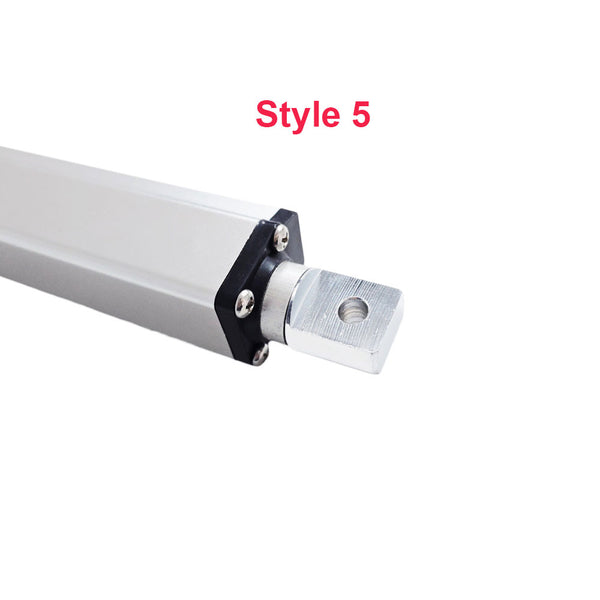

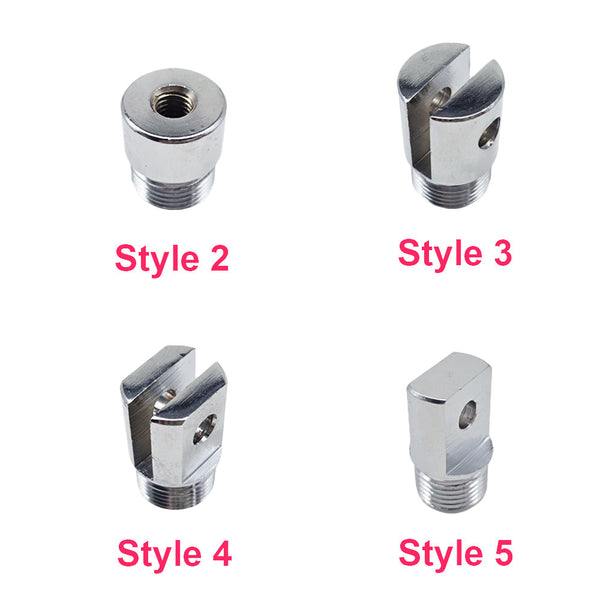

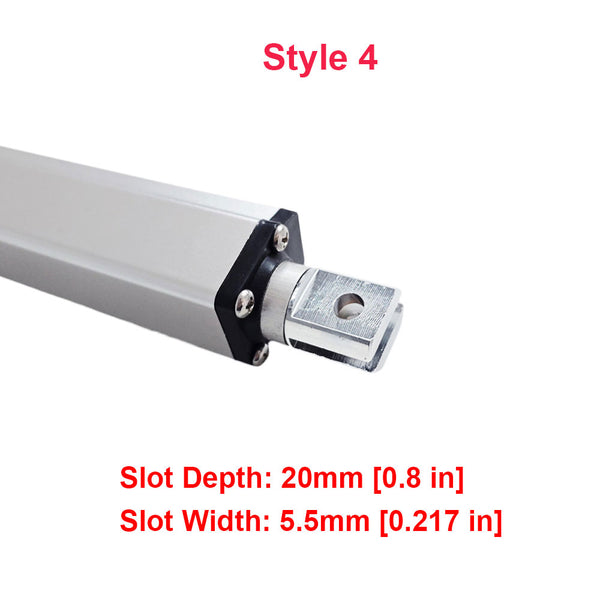

4. The front connector style of the linear actuator can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization. If you need customization, please click here to purchase the customized option.
5. Linear actuator fisheye connector can be customized and used in conjunction with the internal thread connector. If you need customization, please click here to purchase the customized option.

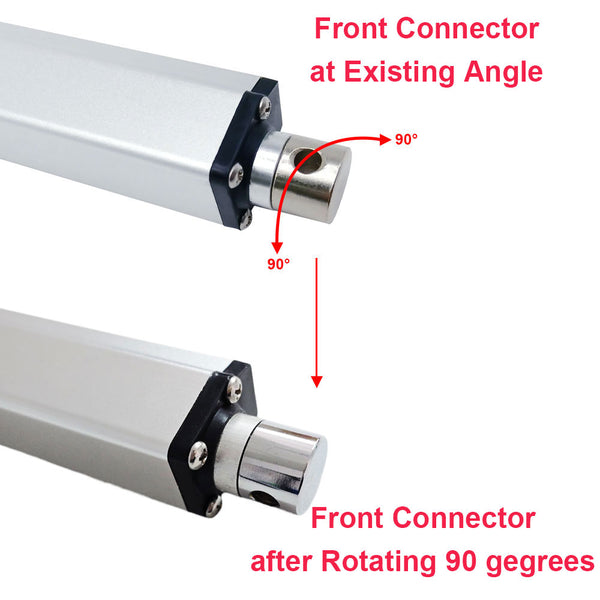

6. The orientation of the front connector of the linear actuator is default; we can rotate it 90 degrees during the production according to the customer's needs. If you need to rotate the front connector 90 degrees, please click here to purchase the rotation option.
7. The linear actuator can be equipped with a manual operating device. Even in the event of a power outage, it is possible to extend or retract its telescopic rod using hand tools. If you need a manual operating device to equip the actuator, please click here to purchase it.
8. You need to use a DC24V/3A switching power supply to power this kit. This kit does not contain this power supply, please buy it from the drop down menu.
Production Time & Return or Exchange Policy
The linear actuators are customized and not in stock, and we need to spend 3~7 working days to produce them according to the specified parameters in your order, so that we don't accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
Import Customs Duty Explanation
1. Our store will offer one or two different shipping methods depending on the actual situation of the order. Since we ship from Hong Kong, China to worldwide, import duties will be incurred on the package regardless of which shipping method the customer chooses.
2. For small or lightweight packages, we will select a suitable freight company so that we can pay the import duties on the customer's behalf at the time of shipment. Therefore, the customer will not need to pay any import duties or taxes upon receiving the package.
3. For large or heavy packages, regardless of the freight company we choose, customs will collect import duties and taxes directly from the customer upon customs clearance or upon receipt of the package. The duty amount is usually 20% of the order amount (excluding shipping costs).
4. If the customer wishes us to pay the import duties on the customer's behalf, please contact us when placing the order and pay an additional 20% of the order amount as prepaid duties. We will then pay the duties for the customer.
5. If the customer chooses to pay the import duties themselves, please
contact us after paying the duties and receiving the package. We will
provide the customer with a discount voucher of a certain amount, which
can be used for their next purchase. The discount amount will be the
lesser of the import duties actually paid by the customer and 20% of the
original order amount (excluding shipping costs).
Please note: We cannot refund cash for import duties paid by the customer themselves. Thank you for your understanding.
6. When the transport company or the customs informs the customer to pay the import duties, if the customer doesn't agree to pay, the package will be returned or destroyed, and the customer will need to bear all responsibility and cost.
Click to Download 3D CAD Model Files in STEP format
Product Operation Demonstration Video
Package Include
1 x Linear Actuator A2 with Potentiometer
1 x Slide controller
1 x 10K potentiometer (Sliding potentiometer or Rotary potentiometer optional)
1 x User manual
