This is a micro industrial electric linear actuator with a built-in Hall effect sensor, enabling synchronization, speed control, and position control. The actuator has a 350mm stroke, supports 12V, 24V, 36V, or 48V DC input, and a maximum thrust of 2000 N / 200 kg / 450 lbs. It is ideal for industries such as smart homes, industrial automation, and medical applications.
It is widely used in doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can also replace hydraulic and pneumatic products to save power consumption.
Key Features:
- High-quality products and high-quality services
- New housing design, high working stability
- Metal housing, able to work in very harsh environments
- Metal gearbox, high strength wear-resistant gear
- Aluminum alloy telescopic tube and outer tube, good corrosion resistant
- Heavy duty design, high-power DC motor
- Strong thrust, up to 2000N / 200kg / 450lbs
- Multiple speed options, from 5 mm/second to 160 mm/second
- Multiple stroke options, from 10 mm to 1500 mm, any stroke within this range can be customized (e.g. 380mm, 750mm, 1250mm)
- Advanced waterproof and dustproof technology
- Low power consumption and low noise
- Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.

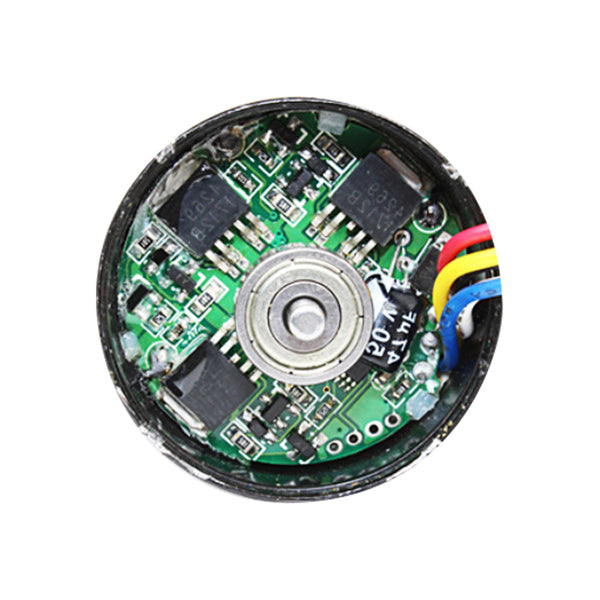

- Built-in Hall sensor, so you can use the synchronous controller to operate 2, 4 or more linear actuators fully synchronously
- With auto-locking capability to hold load position after stopping, and no power supply is required
- Maintenance-free
Operation:
When linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.

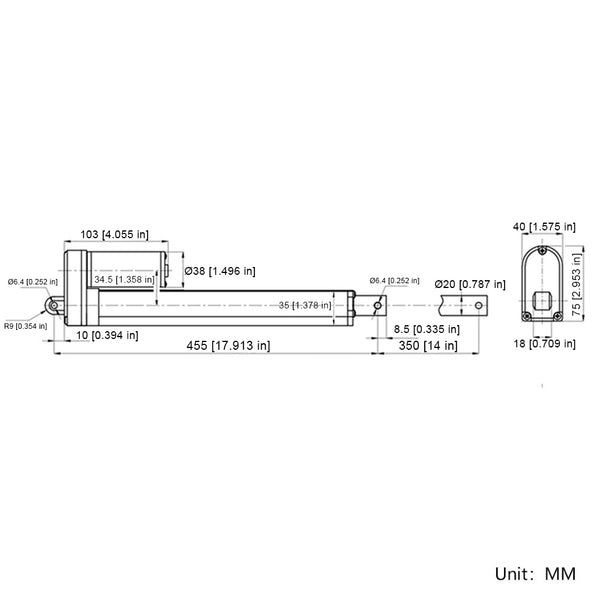

Stroke and Length (Model 0041523-1)
| Parameter | Value |
|---|---|
| Stroke | 350mm |
| Retraction Length | 455mm (center distance between two mounting holes when the linear actuator is fully retracted) |
| Extension Length | 805mm (center distance between two mounting holes when the linear actuator is fully extended) |
The linear actuator has external overcurrent protection, when the linear actuator is fully retracted or fully extended, it will stop automatically.
We can customize the stroke and retraction lengths to meet customer specifications during production. For example, specify a stroke of 330mm and a retraction length of 485mm.
Note 1: The specified retraction length must be greater than the original length. For example, a specified retraction length of 485mm is greater than the original length of 455mm.
Note 2: The specified stroke must be less than the original stroke. For example, a specified stroke of 330mm is less than the original stroke of 350mm.
Product Specifications
| Parameter | Value |
|---|---|
| Working Voltage | DC 12V, DC 24V, DC 36V or DC 48V (24V most commonly used) |
| Stroke | 14 inches / 350 mm |
| Optional Speed (No-load) | 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 25±5mm/s, 40±8mm/s, 55±10mm/s, 65±12mm/s, 100±15mm/s, 160±20mm/s (The actual working speed will gradually slow down as the load increases.) |
| Max Load Capacity | 2000N / 200kg / 450lbs at 5mm/s (Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.) |
| No-load Current | 0.5~1A at 12V or 0.3~0.5A at 24V |
| Full Load Current | 3~6A at 12V or 1.5~3A at 24V |
| Recommended Power Supply | 2 actuators: 12V/10A or 24V/5A 3~4 actuators: 12V/20A or 24V/10A |
| Shaft Diameter | 20mm [0.787 in] |
| Front / Rear Connector Mounting Hole Diameter | 6mm [0.236 in] |
| Housing Material | Aluminum Alloy |
| Stroke Rod Material | Aluminum Alloy |
| Gear Material | Steel Alloy |
| Motor Type | Brushed DC Motor |
| Duty Cycle | 20%, max 5mins continuous use |
| Service Life | approx. 25,000 cycles |
| Plug Standard | Six-pin Plug |
| Linear Actuator Cable Length | 2000±10%mm [20 in] (The length can also be customized according to your specific needs) |
| Certifications | CE |
| Environment Temperature | -26℃ to 85℃ |
| Operating Noise | about 46dB~56dB (Linear actuators with different parameters will have different noise levels.) |
| IP Rating | IP65 |
Different Speeds and Corresponding Maximum Thrust
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
|---|---|---|---|
| 5mm/s | 2.5mm/s | 2000 N / 200 kg / 450 lbs | 2200 N / 220 kg / 490 lbs |
| 10mm/s | 5mm/s | 1000 N / 100 kg / 200 lbs | 1100 N / 110 kg / 250 lbs |
| 15mm/s | 7.5mm/s | 800 N / 80 kg / 180 lbs | 900 N / 90 kg / 200 lbs |
| 20mm/s | 10mm/s | 700 N / 70 kg / 160 lbs | 800 N / 80 kg / 180 lbs |
| 25mm/s | 13mm/s | 600 N / 60 kg / 130 lbs | 700 N / 70 kg / 160 lbs |
| 40mm/s | 20mm/s | 350 N / 35 kg / 80 lbs | 400 N / 40 kg / 90 lbs |
| 55mm/s | 28mm/s | 250 N / 25 kg / 60 lbs | 300 N / 30 kg / 70 lbs |
| 65mm/s | 33mm/s | 200 N / 20 kg / 50 lbs | 250 N / 25 kg / 60 lbs |
| 100mm/s | 50mm/s | 150 N / 15 kg / 30 lbs | 100 N / 10 kg / 20 lbs |
| 160mm/s | 80mm/s | 100 N / 10 kg / 20 lbs | 50 N / 5 kg / 10 lbs |
Note:
1. The above data is the maximum load capacity that can be obtained when each linear actuator runs in the vertical direction. The maximum load capacity of the entire synchronous system is the sum of the maximum load capacities of all linear actuators. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.
Fixed Bracket and Control Accessories
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase. (Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.)

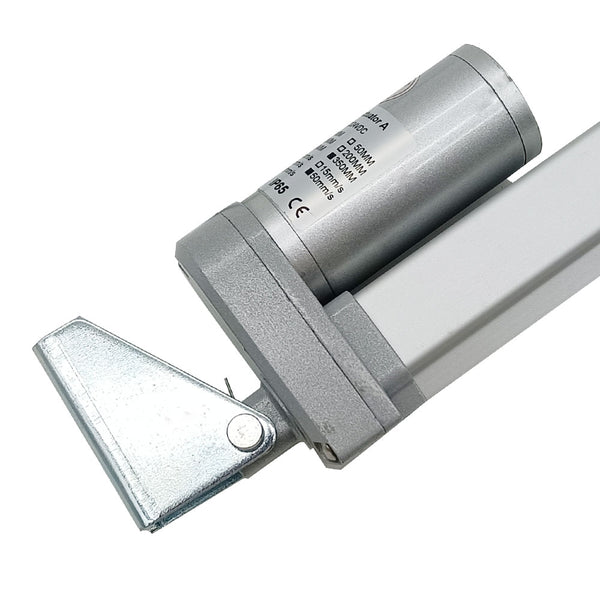

2. Compatible Mounting Brackets: Bracket A and Bracket C.

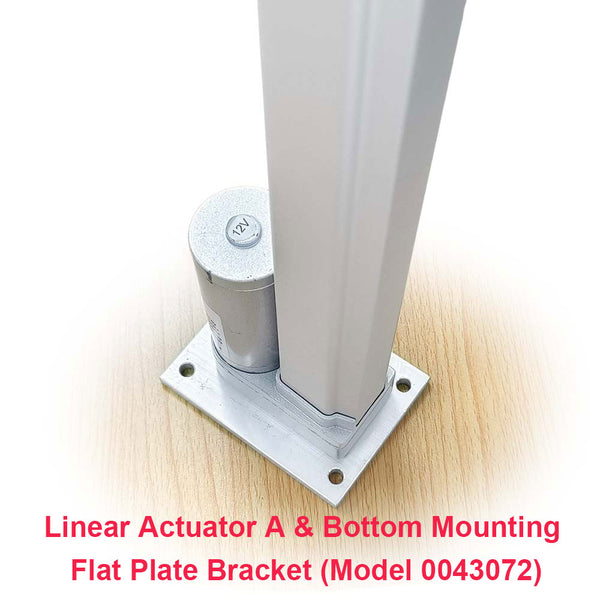

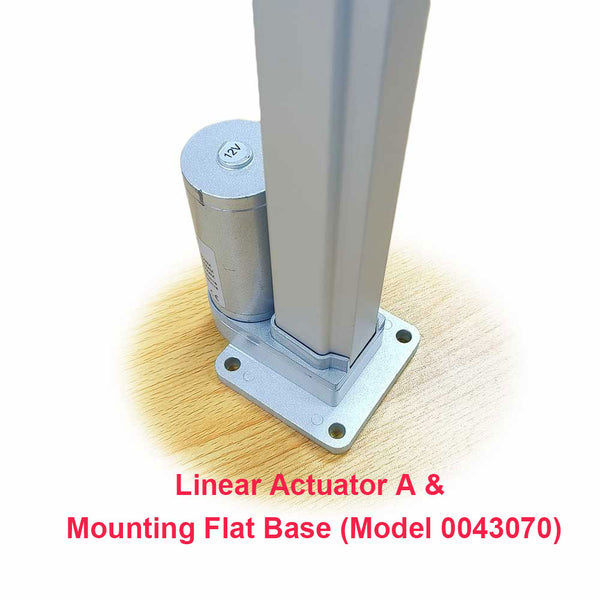

3. This linear actuator is also compatible with three flat mounting brackets: Head Fixed Mount Flat Bracket (Model 0043071) , Bottom Fixed Mount Flat Bracket (Model 0043072) and Fixed Mount Flat Base (Model 0043070) .
4. The front connector style of the linear actuator can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization. If you need customization, please click here to purchase the customized option.
5. Linear actuator fisheye connector can be customized and used in conjunction with the internal thread connector. If you need customization, please click here to purchase the customized option.
6. The orientation of the front connector of the linear actuator is default; we can rotate it 90 degrees during the production according to the customer's needs. If you need to rotate the front connector 90 degrees, please click here to purchase the rotation option.
7. If you need a power supply to power linear actuator, please click here to purchase.
8. If you want to use external limit switches to stop linear actuator at any position, please click here to purchase.
9. If you want to control 2, 4 or more linear actuators fully synchronously, you need to purchase built-in Hall effect sensors for each linear actuator, and buy a synchronization controller, please click here to purchase.
Production Time & Return or Exchange Policy
The linear actuators are customized and not in stock, and we need to spend 3~7 working days to produce them according to the specified parameters in your order, so that we don't accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
