This is a micro-industrial linear actuator with an adjustable stroke and a standard stroke of 600 mm. It is equipped with two external normally closed magnetic switches that can slide freely, and by adjusting the position of these two normally closed magnetic switches, the linear actuator can be controlled to work within the set stroke length. For example, for a linear actuator with a stroke of 600 mm, you can set it to move within a stroke range of 50 mm to 560 mm.
It is widely used in doors, windows, cellars, trapdoors, hatchways, solar
tracking system, medical devices, agricultural machinery, vehicles, ships,
elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage
sofas, electric beds, medical chairs, and other electrical equipment. It can
open, close, push, pull, lift, and descend these devices.
It can also replace hydraulic and pneumatic products to save power consumption.
Key Features:
- High-quality products and high-quality services
- New housing design, high working stability
- Metal housing, able to work in very harsh environments
- Metal gearbox, high strength wear-resistant gear
- Aluminum alloy telescopic tube and outer tube, good corrosion resistant
- Heavy duty design, high-power DC motor
- Strong thrust, up to 2000N / 200kg / 450lbs
- Multiple speed options, from 5 mm/second to 160 mm/second
- Multiple stroke options, from 10 mm to 1500 mm, any stroke within this range can be customized (e.g. 380mm, 750mm, 1250mm)
- Advanced waterproof and dustproof technology
- Low power consumption and low noise
- Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
- Equipped with two external normally closed magnetic switches that can slide freely, by adjusting the position of these two normally closed magnetic switches, the linear actuator can be controlled to work within the set stroke length
- You can control this linear actuator by a remote switch
- Manual operating device is optional, allowing you to extend or retract the telescopic rod of the linear actuator with hand tools
- The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization
- The orientation of the front connector is default; we can rotate it 90 degrees during the production according to the customer's needs
- With auto-locking capability to hold load position after stopping, and no power supply is required
- Maintenance-free
Stroke and Length (Model 0041507-4)
| Parameter | Value |
|---|---|
| Stroke | 600 mm |

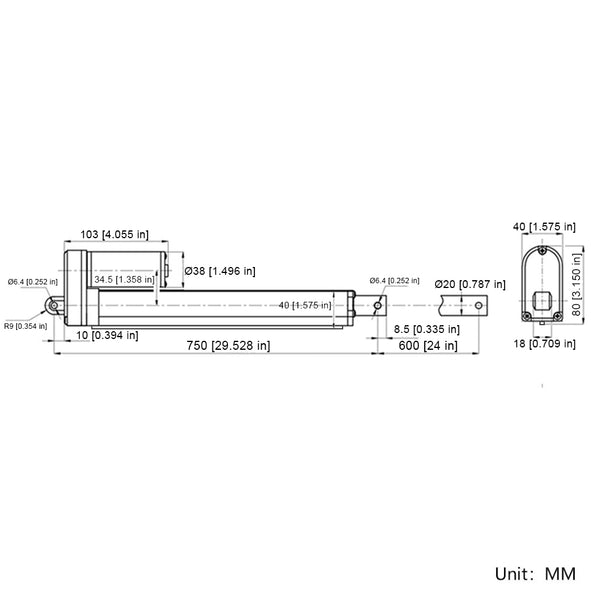

| Retraction Length | 750 mm (center distance between two mounting holes when the linear actuator is fully retracted) |
| Extension Length | 1350 mm (center distance between two mounting holes when the linear actuator is fully extended) |
The linear actuator has two built-in limit switches, When the linear
actuator is fully retracted or fully extended, it will stop
automatically.
We can adjust the position of the built-in limit switches during
production to meet customer-specified stroke and retraction lengths.
Note 1: The specified stroke must be less than the standard stroke of the ordered actuator. For example, a specified stroke of 570 mm is less than the standard stroke of the ordered actuator (600 mm). In this case, the retraction length will be reduced by an equivalent value, resulting in a retraction length of 720 mm. Of course, you can also choose to retain the original standard retraction length of 750 mm.
Note 2: The specified retraction length must be less than the standard retraction length of the ordered actuator. For example, a specified retraction length of 710 mm is less than the standard retraction length of the ordered actuator (750 mm). In this case, the stroke must also be reduced by an equivalent value, resulting in an effective stroke of 560 mm.
Product Specifications
| Parameter | Value |
|---|---|
| Working Voltage | DC 12V, DC 24V, DC 36V or DC 48V (24V most commonly used) |
| Stroke | 24 inches / 600 mm |
| Optional Speed (No-load) | 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 25±5mm/s, 40±8mm/s, 55±10mm/s, 65±12mm/s, 100±15mm/s, 160±20mm/s (The actual working speed will gradually slow down as the load increases.) |
| Max Load Capacity | 2000N / 200kg / 450lbs at 5mm/s (Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.) |
| No-load Current | 0.5~1A at 12V or 0.3~0.5A at 24V |
| Full Load Current | 3~6A at 12V or 1.5~3A at 24V |
| Recommended Power Supply | 12V/6A or 24V/3A |
| Shaft Diameter | 20mm [0.787 in] |
| Front / Rear Connector Mounting Hole Diameter | 6mm [0.236 in] |
| Housing Material | Aluminum Alloy |
| Stroke Rod Material | Aluminum Alloy |
| Gear Material | Steel Alloy |
| Motor Type | Brushed DC Motor |
| Duty Cycle | 20%, max 5mins continuous use |
| Service Life | approx. 25,000 cycles |
| Power Cable | Ordinary Two-core Wire |
| Linear Actuator Cable Length | 500±10%mm [20 in] (The length can also be customized according to your specific needs) |
| Certifications | CE |
| Environment Temperature | -26℃ to 85℃ |
| Operating Noise | about 46dB~56dB (Linear actuators with different parameters will have different noise levels.) |
| IP Rating | IP65 |
Different Speeds and Corresponding Maximum Thrust
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
|---|---|---|---|
| 5mm/s | 2.5mm/s | 2000 N / 200 kg / 450 lbs | 2200 N / 220 kg / 490 lbs |
| 10mm/s | 5mm/s | 1000 N / 100 kg / 200 lbs | 1100 N / 110 kg / 250 lbs |
| 15mm/s | 7.5mm/s | 800 N / 80 kg / 180 lbs | 900 N / 90 kg / 200 lbs |
| 20mm/s | 10mm/s | 700 N / 70 kg / 160 lbs | 800 N / 80 kg / 180 lbs |
| 25mm/s | 13mm/s | 600 N / 60 kg / 130 lbs | 700 N / 70 kg / 160 lbs |
| 40mm/s | 20mm/s | 350 N / 35 kg / 80 lbs | 400 N / 40 kg / 90 lbs |
| 55mm/s | 28mm/s | 250 N / 25 kg / 60 lbs | 300 N / 30 kg / 70 lbs |
| 65mm/s | 33mm/s | 200 N / 20 kg / 50 lbs | 250 N / 25 kg / 60 lbs |
| 100mm/s | 50mm/s | 150 N / 15 kg / 30 lbs | 100 N / 10 kg / 20 lbs |
| 160mm/s | 80mm/s | 100 N / 10 kg / 20 lbs | 50 N / 5 kg / 10 lbs |
Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.
Wiring for remote switch
If use a remote switch to control the linear actuator, do as following:
1. Connect two wires of DC power supply to two terminals of the remote
switch input.
2. Connect two wires of linear actuator to two terminals <Motor> of the
controller, and you can exchange these two wires to change the moving
direction of linear actuator.
3. Connect two magnetic reed switches to the limit control terminals of
the remote switch, please follow the connection diagram below for
specific wiring.
Operation by remote switch
1. Press and hold the button ▲ on the remote: linear actuator extends
outward, when it moves to the position of a magnetic switch, the linear
actuator will automatically stop.
2. Press and hold the button ▼ on the remote: linear actuator inward
retracts, when it moves to the position of another magnetic switch, the
linear actuator will automatically stop.
How to adjust the position of the magnetic switch
You can loosen the fixing straps of the magnetic switch, then move the
magnetic switch to a suitable position and tighten the fixing straps
again.
Note: If the positions of the two magnetic switches are reversed, please swap their positions.
Fixed Bracket and Control Accessories
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase. (Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.)
2. Compatible Mounting Brackets: Bracket A and Bracket C.

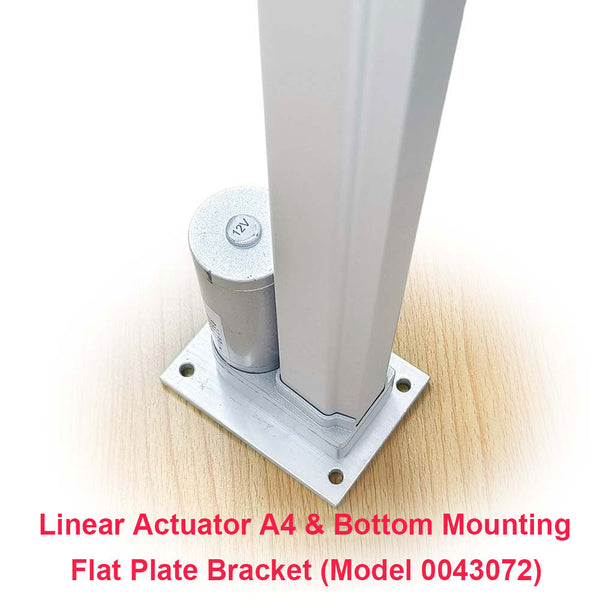

3. This linear actuator is also compatible with three flat mounting brackets: Head Fixed Mount Flat Bracket (Model 0043071) , Bottom Fixed Mount Flat Bracket (Model 0043072) and Fixed Mount Flat Base (Model 0043070) .
4. The front connector style of the linear actuator can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization. If you need customization, please click here to purchase the customized option.
5. Linear actuator fisheye connector can be customized and used in conjunction with the internal thread connector. If you need customization, please click here to purchase the customized option.
6. The orientation of the front connector of the linear actuator is default; we can rotate it 90 degrees during the production according to the customer's needs. If you need to rotate the front connector 90 degrees, please click here to purchase the rotation option.
7. The linear actuator can be equipped with a manual operating device . Even in the event of a power outage, it is possible to extend or retract its telescopic rod using hand tools.
8. If you need a power supply to power linear actuator, please click here to purchase.
9. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.
Production Time & Return or Exchange Policy
The linear actuators are customized and not in stock, and we need to spend 3~7 working days to produce them according to the specified parameters in your order, so that we don't accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
Click to Download 3D CAD Model File in STEP format
Product Operation Demonstration Video
Package Include
1 x Linear actuator A4
2 x Normally closed magnetic reed switch
1 x User manual
