500M Wireless Remote Control Switch For DC Linear Actuator or Motor (Model 0020317)

Regular price $49.00

Shipping calculated at checkout.



Product Operation Demonstration Video:

How to Pair Remote to Remote Switch?

Package Include:
1 x Receiver: S1FC-DC
1 x Transmitter: CP-3
1 x User manual

Application:
This receiver is a wireless controller for DC motor or linear actuator, it and the transmitter form a wireless transmitter receiver system. If you connect a DC motor to this receiver, you can operate the motor to rotate in positive or reversal direction by the remote control. If you connect a DC linear actuator to this receiver, you can operate the linear actuator to extend or retract by the remote control. You can connect two limit switches to the receiver and use them to stop the motor or the linear actuator. You also can connect a manual switch to the receiver and use them to control the motor or the linear actuator.

Features:
Wireless control, easy to install.
Suitable for DC motor or linear actuator.
DC 9~36V operating voltage range.
Two working modes.
You can operate the motor to rotate in positive or reversal direction by using the buttons in the receiver or by the transmitter.
You can operate the linear actuator to extend or retract by using the buttons in the receiver or by the transmitter.

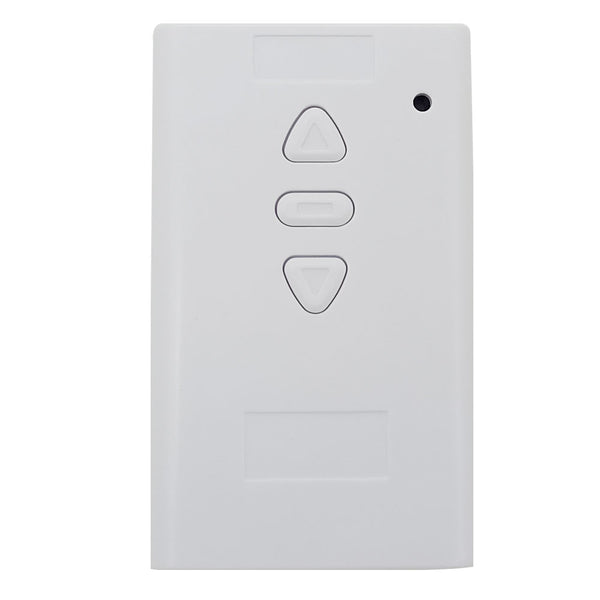

With three manual buttons: You can control the motor or linear actuator by manual buttons.
With limit control terminals: You can connect sensors, limit switches or external devices to stop the motor or the linear actuator.
With wired control terminals: You can connect manual switches to control the motor or linear actuator.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

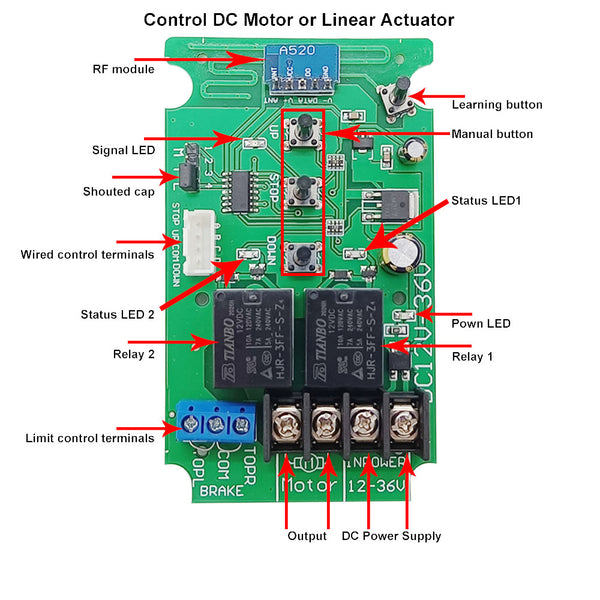

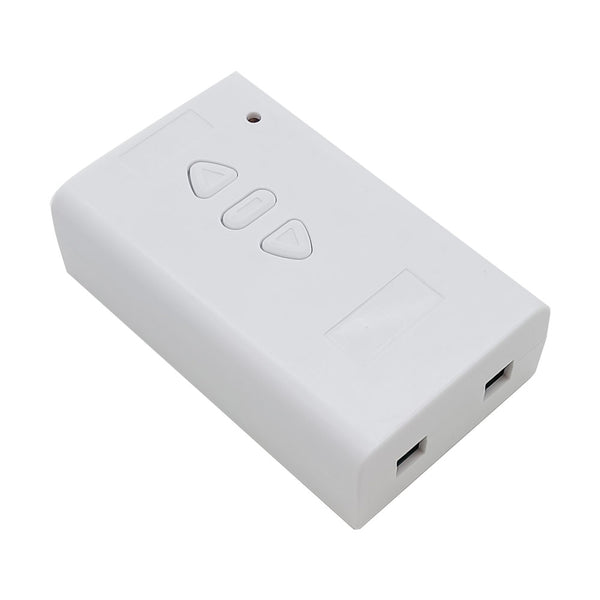

Receiver Parameters:

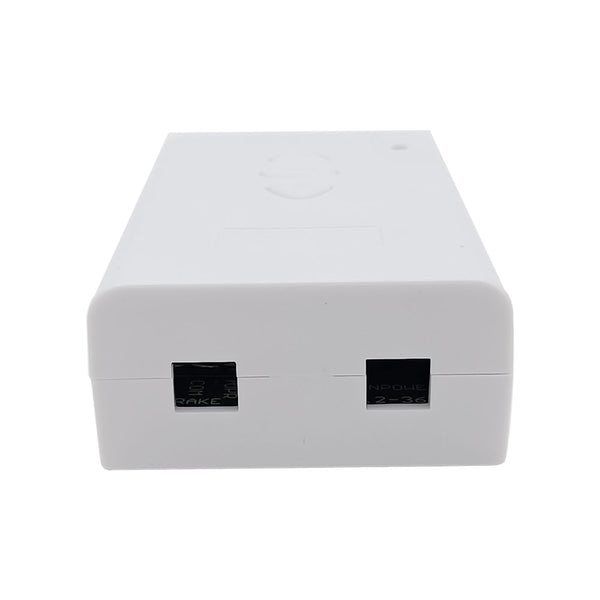

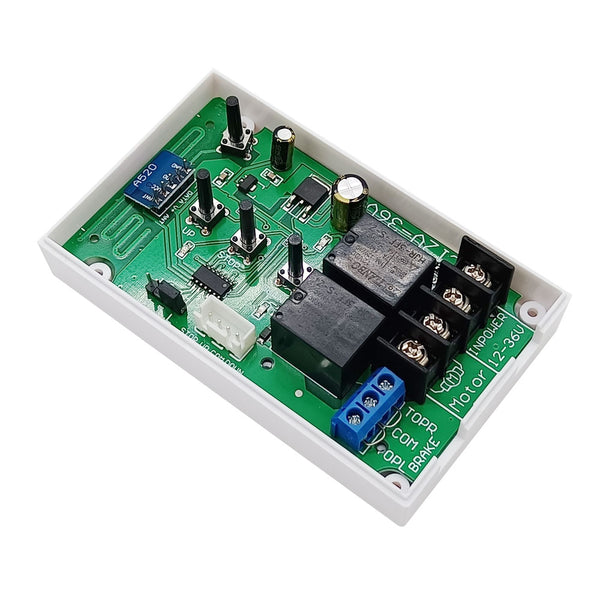

Model: S1FC-DC
Operating Voltage: 9~36 VDC
Output Voltage: 9~36 VDC same as input voltage
Working Frequency: 433.92 MHz
Channel: 1 CH, can work with 1 DC motor or 1 linear actuator
Quiescent Current: ≤6mA
Rated Current: 10A, so linear actuator or motor's maximum starting current cannot exceed 10A.
Wire range for the terminals: 22-14 AWG
2 Selectable Modes: Interlocking, Momentary
Operating Temperature: -20°C ~ +70°C
Case Size: 100 x 60 x 30 mm (4.0 x 2.4 x 1.2 inches)

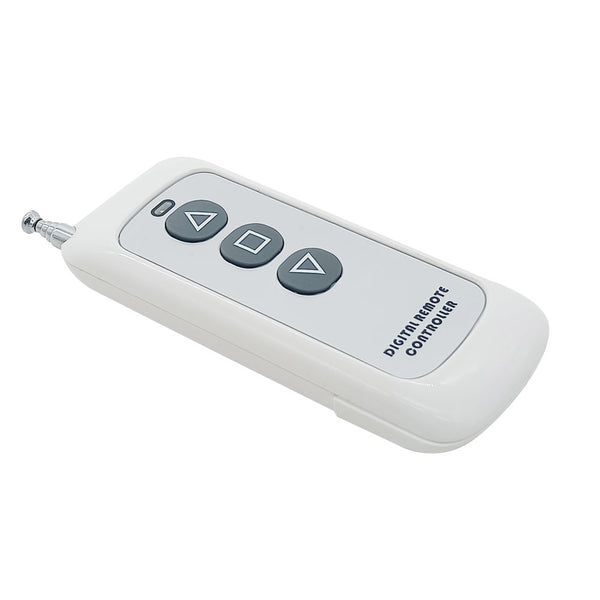

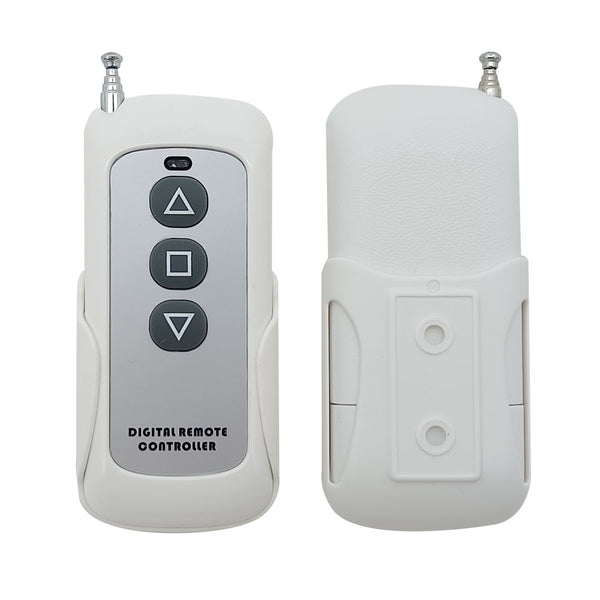

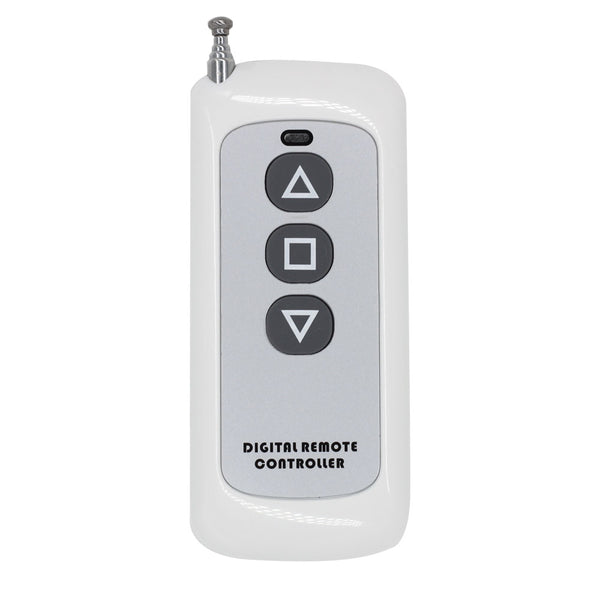

Transmitter Parameters:
Model No: CP-3
Channel/Button: 3
Button Symbol:▲▇▼
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Standby current: 4uA
Operating Current: 14mA
Operating Frequency: 433Mhz
Transmitting Distance: 500m / 1500ft (theoretically)
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 92mm x 40mm x 15mm

Matching Transmitters:
This receiver can work with different transmitters, such as model CWC-3L (waterproof, 50 Meter / 150 feet), C-2-2 or C-3-2 (100 Meter / 300 feet), CP-2 or CP-3 (500 Meter / 1500 feet), CV-2-2 (500 Meter / 1500 feet), CG-3 (500 Meter / 1500 feet) or CB-3-2 (1000 Meter / 3000 feet).
1) When you set the receiver in Momentary mode, it should work with two button transmitter, such as model CP-2, C-2-2 or CV-2-2.
2) When you set the receiver in Interlocking mode, it should work with three or four buttons transmitter, such as model CWC-3L, C-3-2, CP-3, CG-3 or CB-3-2.

Working Range:
This receiver and different transmitters form a complete set, which can achieve different working distances. For example, when it and the transmitter CP-3 form a complete set, the maximum working distance may reach 500 meters in an open area. When it and the transmitter CB-3-2 form a complete set, the maximum working distance may reach 1000 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
The receiver equipped with an external antenna has a larger working range than the receiver equipped with an internal antenna.

Usage:
The receiver can be used to control DC 12V / 24V motor or linear actuator.

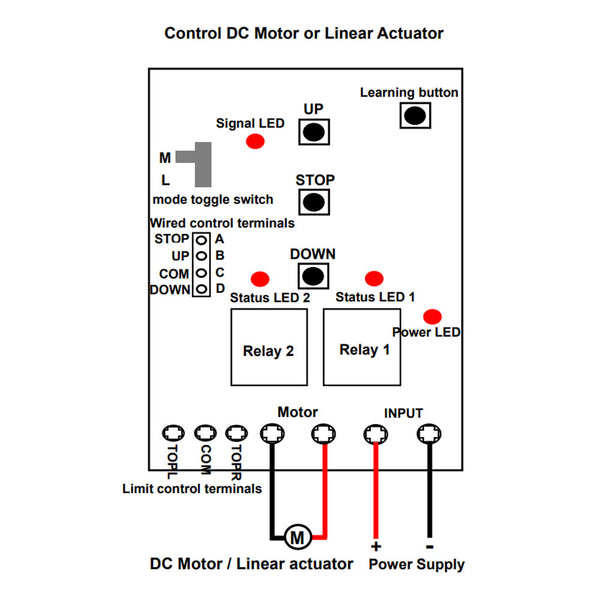

Wiring:
If you want to control a DC 12V / 24V motor or linear actuator, do as following:
1) Connect the positive pole of DC power supply to terminal <+> of Input, and connect the negative pole of DC power supply to terminal <-> of Input.
2) Connect two wires of motor or linear actuator to terminals <Motor>, and you can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.

Setting different working modes:
The receiver will be set in Interlocking mode before leaving the factory, if you require momentary mode, please follow the following steps.
Note: Need to restart the receiver after changing the working mode.

1) Setting Interlocking mode: Turn the mode toggle switch in the receiver to position L.
The operation by the transmitter, such as CP-3:
Press the button ▲ on the transmitter: Motor rotates in positive direction, or linear actuator extends outward.
Press the button ▼ on the transmitter: Motor rotates in reversal direction, or linear actuator inward retracts.
Press the button ■ on the transmitter: Motor or linear actuator stops.

The operation by the receiver:
Press the button ▲ on the receiver: Motor rotates in positive direction, or linear actuator extends outward.
Press the button ▼ on the receiver: Motor rotates in reversal direction, or linear actuator inward retracts.
Press the button ■ on the receiver: Motor or linear actuator stops.

2) Setting Momentary mode: Turn the mode toggle switch in the receiver to position M.
The operation by the transmitter, such as CP-3:
Press and hold the button ▲ on the transmitter: Motor rotates in positive direction, or linear actuator extends outward.
Release the button ▲: Motor or linear actuator stops.
Press and hold the button ▼ on the transmitter: Motor rotates in reversal direction, or linear actuator inward retracts.
Release the button ▼: Motor or linear actuator stops.

The operation by the receiver:
Press and hold the button ▲ on the receiver: Motor rotates in positive direction, or linear actuator extends outward.
Release the button ▲: Motor or linear actuator stops.
Press and hold the button ▼ on the receiver: Motor rotates in reversal direction, or linear actuator inward retracts.
Release the button ▼: Motor or linear actuator stops.

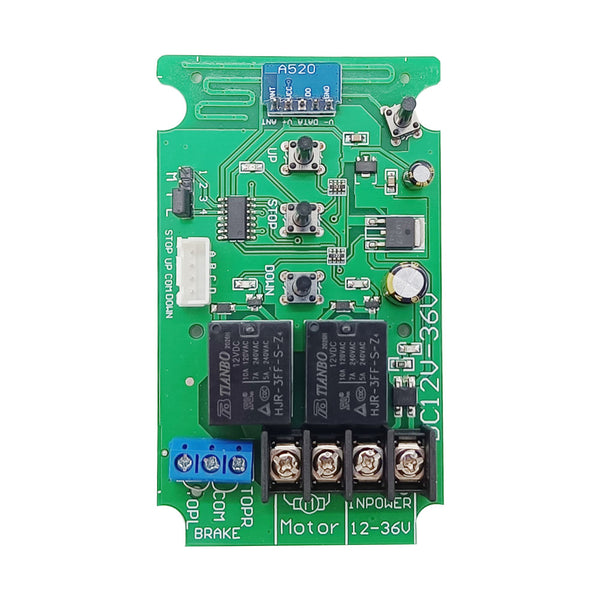

Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally closed contact), such as sensors, limit switches to limit terminals, then use them to stop the motor or the linear actuator.

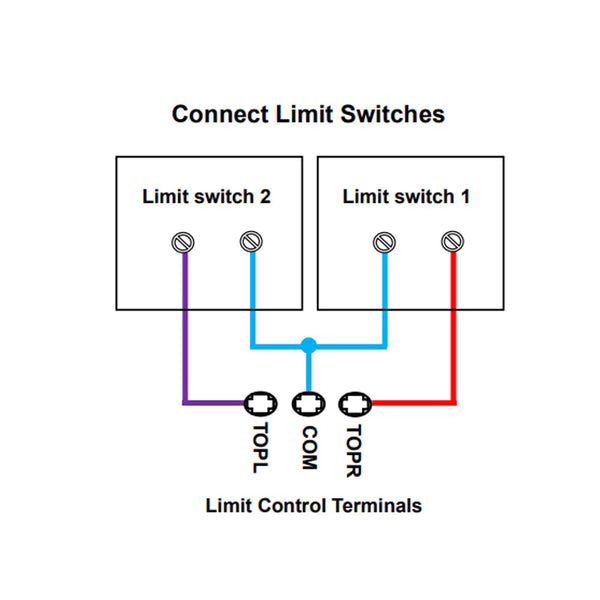

For example, you can connect a normally closed limit switch to terminals <TOPR> and <COM>, and connect another normally closed limit switch to terminals <TOPL> and <COM>.
When motor rotates in positive direction, or linear actuator extends outward, if disconnect two terminals <TOPR> and <COM>, the motor or linear actuator will stop automatically.
When motor rotates in reversal direction, or linear actuator inward retracts, if disconnect two terminals <TOPL> and <COM>, the motor or linear actuator will stop automatically.

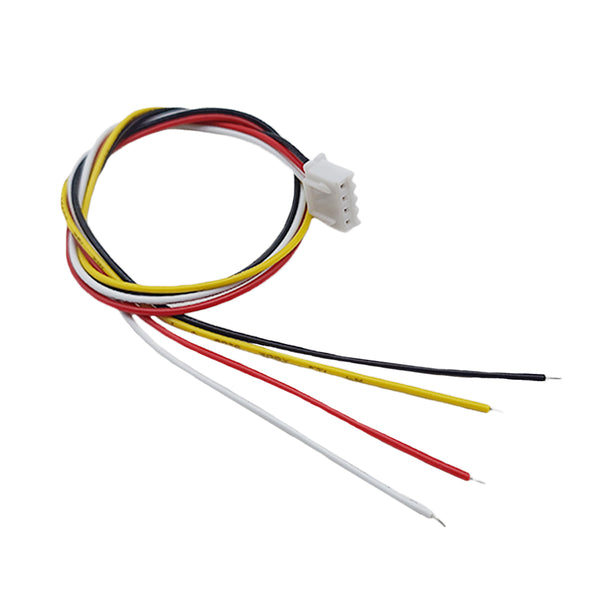

Wired control terminals:
The receiver has wired control terminals, and you can connect external devices (with normally open contact), such as manual switches to wired control terminals, then use them to control the motor or the linear actuator.

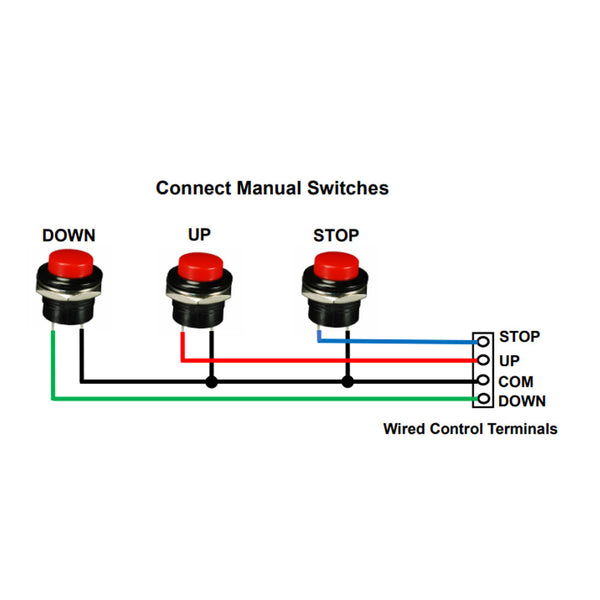

For example, you can connect three button manual switches to wired control terminals <STOP>, <UP>, <COM> and <DOWN> according to following wiring diagram.

1) In Interlocking mode:
When connect two terminals <UP> and <COM>, the motor rotates in positive direction, or the linear actuator extends outward. And when connect two terminals <STOP> and <COM>, motor or linear actuator stops.
When connect two terminals <DOWN> and <COM>, the motor rotates reversal direction, or the linear actuator inward retracts. And when connect two terminals <STOP> and <COM>, motor or linear actuator stops.

2) In Momentary mode:
When connect two terminals <UP> and <COM>, the motor rotates in positive direction, or the linear actuator extends outward. And when disconnect two terminals <UP> and <COM>, motor or linear actuator stops.
When connect two terminals <DOWN> and <COM>, the motor rotates reversal direction, or the linear actuator inward retracts. And when disconnect two terminals <DOWN> and <COM>, motor or linear actuator stops.
