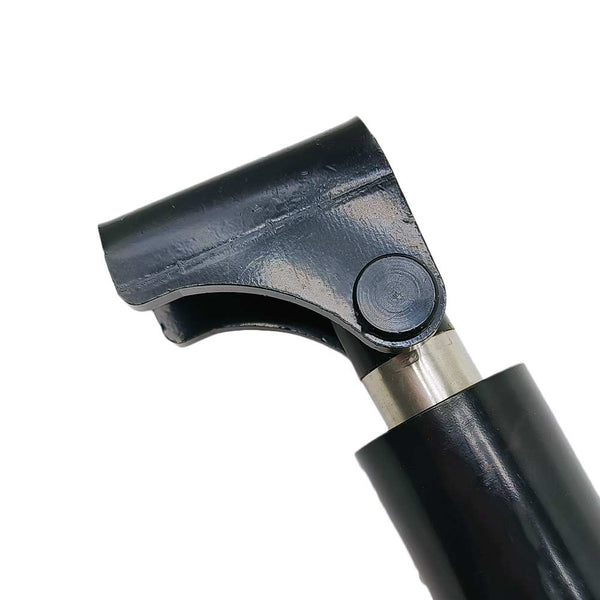

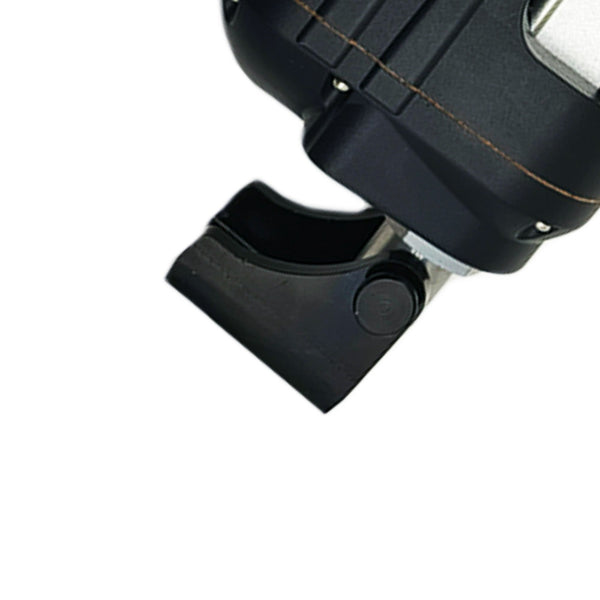

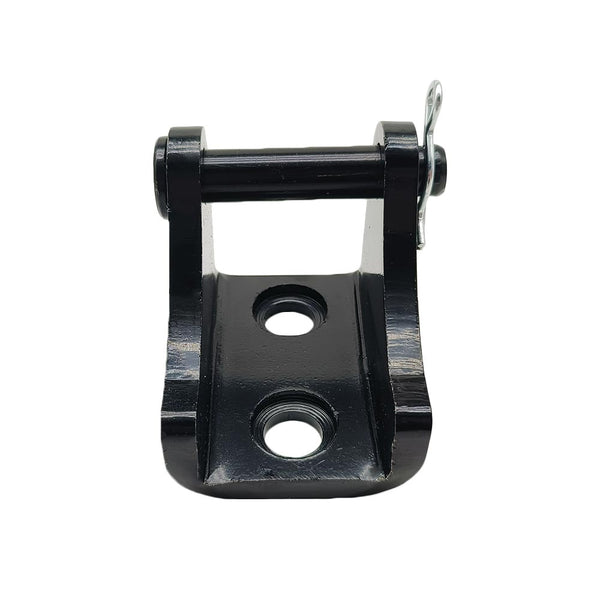

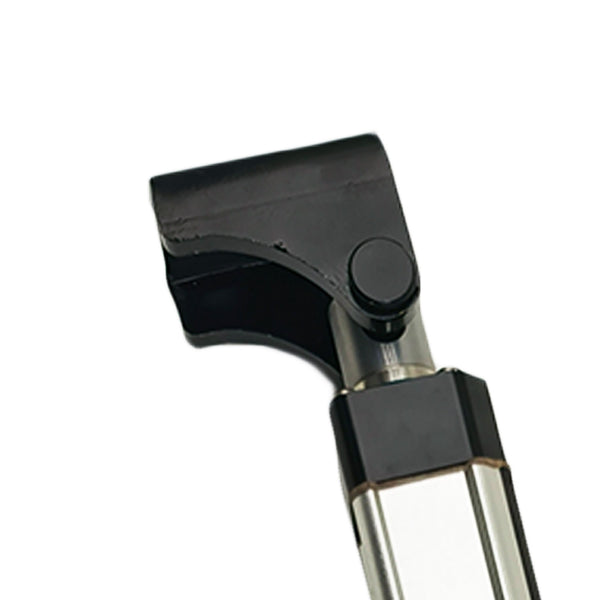

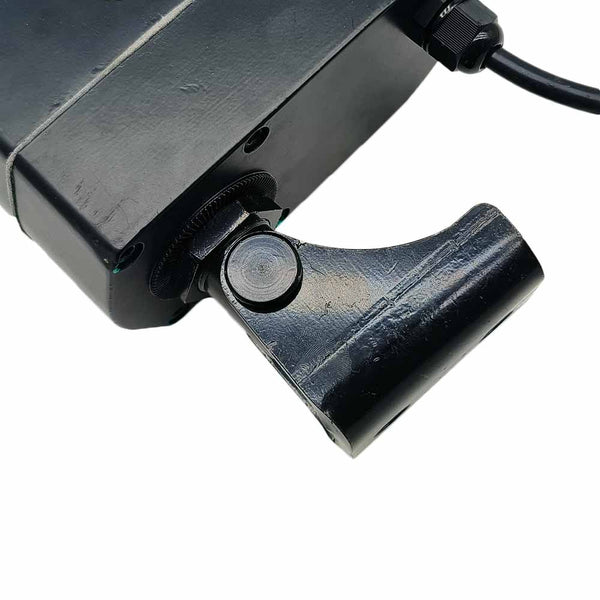

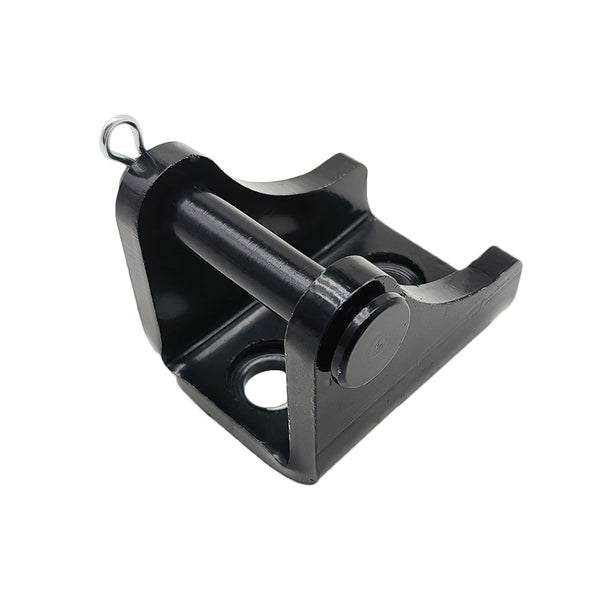

Fixed mounting bracket for electric linear actuator.

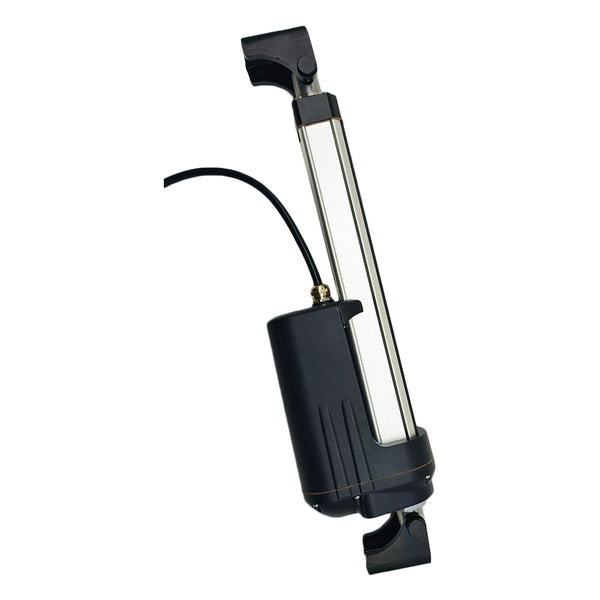

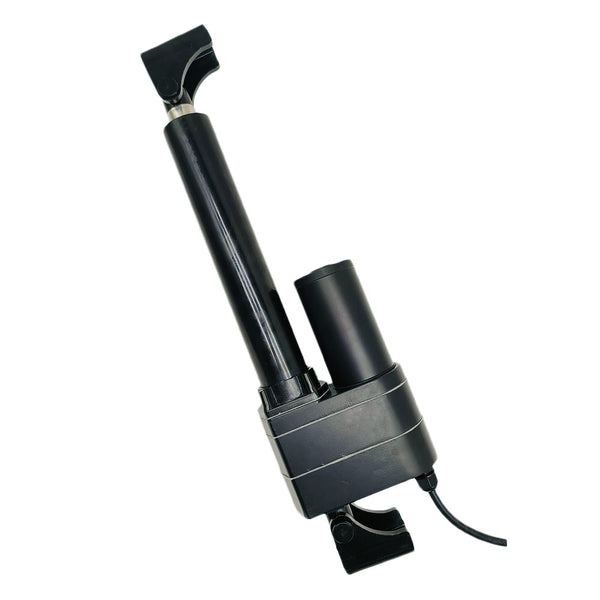

Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.
This mounting bracket can be installed on linear actuator C , and it can also be installed on linear actuator F .
Iron material.

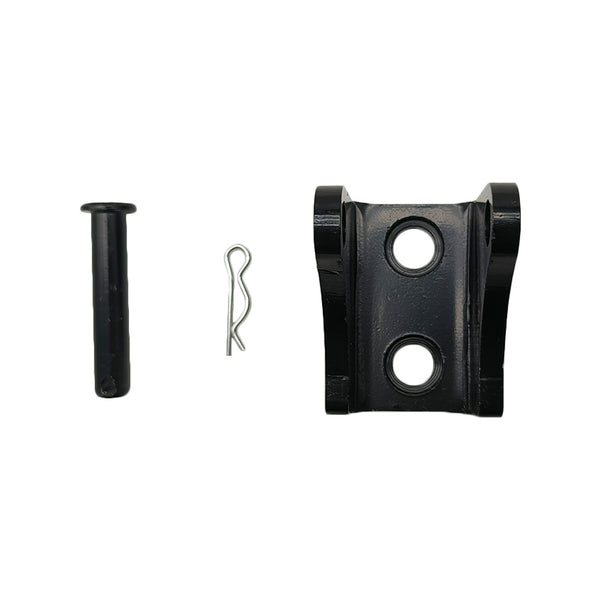

Includes a bracket, a wedge, a needle.

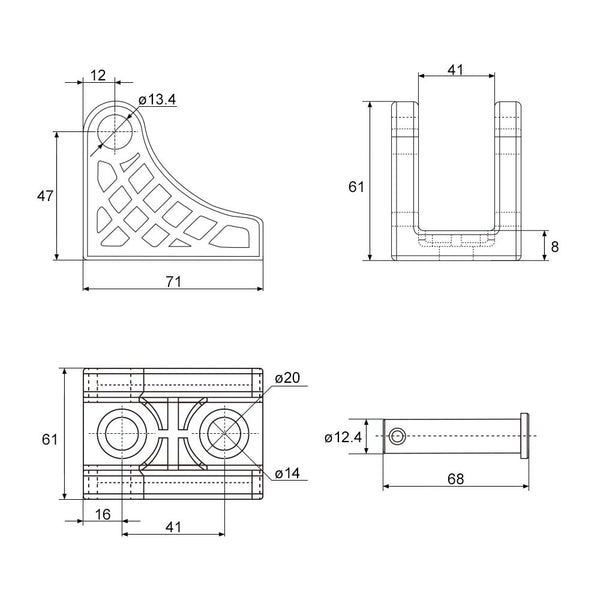

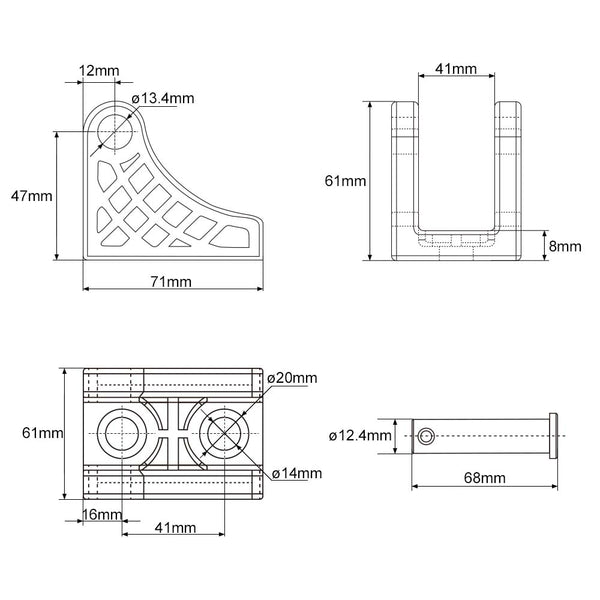

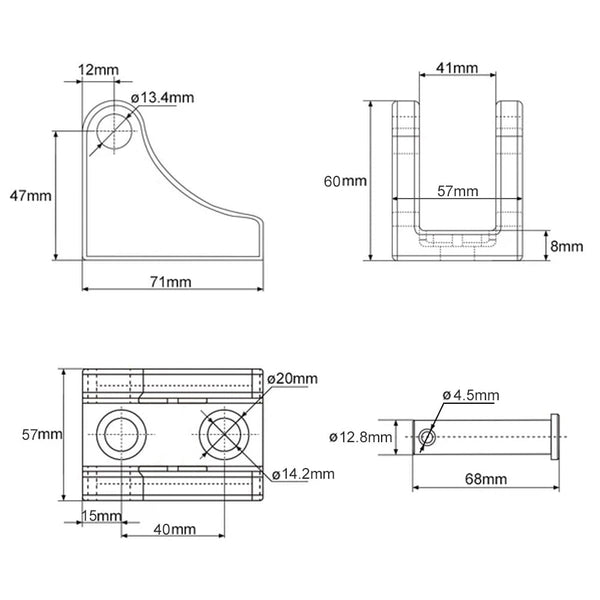

Thickness: 8mm [0.315 in]
Diameter of the wedge hole: 13.4mm [0.528 in]
Diameter of the wedge: 12.8mm [0.504 in]
Diameter of the mounting hole: 14.2mm [0.559 in]
Spacing: 41mm [1.614 in]
