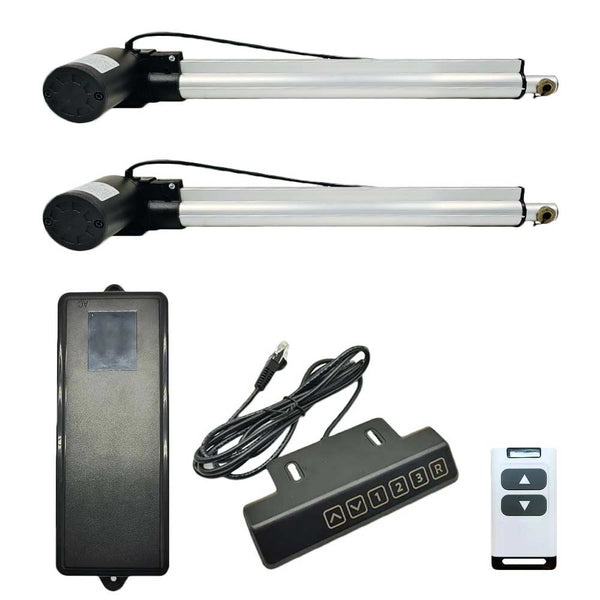

Two Cellar Door Linear Actuators Synchronous Control Kit Total Max Thrust 11000N (Model 0043051-7)

• High-quality products and high-quality services
• High strength wear-resistant gear
• Aluminum alloy telescopic tube and outer tube, good corrosion resistant
• Heavy duty design, high-power DC motor
• Strong thrust, up to 5500 N / 550 kg / 1200 lbs at 5mm/s (without pull)
• Four speed options, 5±1mm/s, 7±1.5mm/s, 9±2mm/s, 14±3mm/s
• Multiple stroke options, from 10 mm to 2000 mm
• Advanced waterproof and dustproof technology
• Low power consumption and low noise
• Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position
• Built-in Hall sensor, so you can use the synchronous controller to operate 2, 4 or more linear actuators fully synchronously
• The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization
• The orientation of the front and rear connectors is default; we can rotate them 90 degrees during the production according to the customer's needs
• With auto-locking capability to hold load position after stopping, and no power supply is required
• Maintenance-free

Note:

1. The above data is the maximum load capacity that can be obtained when each linear actuator runs in the vertical direction. The maximum load capacity of the entire synchronous system is the sum of the maximum load capacities of the two linear actuators. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.

2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.

3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.

4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.

The linear actuator has two built-in limit switches, When the linear actuator is fully retracted or fully extended, it will stop automatically.
We can adjust the position of the built-in limit switches during production to meet customer-specified stroke and retraction lengths.

Example for a linear actuator with a 400 mm stroke:
Retraction Length: 575 mm (center distance between two mounting holes when the linear actuator is fully retracted)
Extension Length: 975 mm (center distance between two mounting holes when the linear actuator is fully extended)

Custom Rules:
1) The specified stroke must be less than the standard stroke of the ordered actuator. For example, a specified stroke of 370 mm is less than the standard stroke of the ordered actuator (400 mm). In this case, the retraction length will be reduced by an equivalent value, resulting in a retraction length of 545 mm. Of course, you can also choose to retain the original standard retraction length of 575 mm.
2) The specified retraction length must be less than the standard retraction length of the ordered actuator. For example, a specified retraction length of 540 mm is less than the standard retraction length of the ordered actuator (575 mm). In this case, the stroke must also be reduced by an equivalent value, resulting in an effective stroke of 365 mm.

Note: This is a dual linear actuator synchronous control kit. The quantity of customization options for installed length and stroke length ordered must match the quantity of actuators, i.e. two.

If you want to use multiple linear actuators to raise and lower an equipment, for example two, four or more electric actuators. Since the high-speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.

If you want to use a synchronization controller to operate two or more linear actuators fully synchronously, you will need to add built-in Hall effect sensors for each linear actuator. And when you purchase Hall effect sensors along with linear actuators, we will install Hall effect sensors in the linear actuators during production for you. When two or more linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.

• It can operate two electric linear actuators B7 to run completely synchronously
• Wired control via a touch control handle
• Wireless control via a remote
• The LED display on the control handle will display the stroke position in real time
• Six touch function buttons: ▲, ▼, 1, 2, 3 and R
• Buttons ▲ and ▼ are used to operate the linear actuators extension and retraction
• Buttons 1, 2 and 3 are used to automatically operate the linear actuators to three pre-memorized positions
• Button R is the reset button and is used to reset the system in case of an error
• Two selectable external control functions: manual switch function or limit switch function, please select an external control function you need when ordering
• When linear actuators move close to the end position, they will automatically slow down to protect themselves
• When linear actuators are fully retracted, they will retain 1MM of travel to protect themselves

1) Plug the touch control handle into the ports H of the controller.
2) Plug two linear actuators into the ports C2 and C3 of the controller.
3) Plug the manual switch into the ports C1 of the controller if you need to use an external manual switch.
4) Connect the positive pole of DC power supply to the brown wire of the controller and connect the negative pole of DC power supply to the blue wire of the controller.
CAUTION: Do not connect AC power directly to the controller!

1. Operation via the touch control handle:
Attention: The handle is operated by touch control. The touch sensitivity can be automatically calibrated when powered on for the first time. Hands are prohibited from touching the handle when powered on to prevent interference with the sensitivity calibration and affect the operating sensitivity.

1) Press and hold the ▲ button of the control handle, all linear actuators extend outward at the same time; Release the button, all linear actuators stop at the same time.
2) Press and hold the ▼ button of the control handle, all linear actuators retract inward at the same time; Release the button, all linear actuators stop at the same time.
3) Press any button 1, 2, or 3 on the control handle, all linear actuators will automatically move to the position memorized by that button and then automatically stop.
Note: You will need to first memorize three positions into these three buttons.
4) The LED display on the control handle will display the stroke position data in real time. For example, the number 03.5 means that the linear actuators have reached the stroke position of 35MM.

2. Operation via remote control: (The remote control of the synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering.)
2.1 When the controller is operating in momentary control mode:
1) Press and hold the button ▲ of the remote control, all linear actuators extend out at the same time; Release the button, all linear actuators stop at the same time.
2) Press and hold the button ▼ of the remote control, all linear actuators retract inward at the same time; Release the button, all linear actuators stop at the same time.

2.2 When the controller is operating in interlocking control mode:
1) Press the button ▲ of the remote control, all linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically.
2) Press the button ▼ of the remote control, all linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically.
3) During operation, you can also press any button of the remote control to stop all linear actuators at the same time.

The external control terminals offer a choice of two functions: manual switch function or limit switch function. When you choose the manual switch function, you can connect one external manual switch (such as model 0040025) to operate the linear actuators. When you choose the limit switch function, you can connect two external limit switches (such as model 0010010) to automatically stop the linear actuators.

1. Manual switch function:
When you choose the manual switch function, you can connect one external manual switch (such as model 0040025) to this controller and then operate the linear actuators through it.
1) The manual switch has an UP button and a DOWN button, and each button has two normally open terminals 3 and 4.
2) Connect a four-conductor cable to the controller's manual switch port C1, and this cable has four wires: red, yellow, orange, and black wire.
3) Connect terminal 3 of two buttons to the orange wire, connect terminal 4 of the UP button to the red wire, and connect terminal 4 of the DOWN button to the yellow wire.

The operation:
1.1 Momentary Control Mode:
1) Press and hold the UP button of the manual switch, all linear actuators extend out at the same time; Release the button, all linear actuators stop at the same time.
2) Press and hold the DOWN button of the manual switch, all linear actuators retract inward at the same time; Release the button, all linear actuators stop at the same time.

1.2 Interlocking Control Mode:
1) Press the UP button of the manual switch, all linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically.
2) Press the DOWN button of the manual switch, all linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically.
3) During operation, you can also press any button of the manual switch to stop all linear actuators at the same time.

2. Limit switch function:
When you choose the limit switch function, you can connect two external limit switches with normally open contact (such as model 0010010) to this controller and then automatically stop the linear actuators through it.
1) You can connect two limit switches, and each limit switch has two normally open terminals.
2) Connect a three-conductor cable to the controller's limit switch port C1, and this cable has three wires: UP, Down, and COM wire.
3) Connect two normally open terminals of a limit switch to terminals <UP> and <COM>, connect two normally open terminals of another limit switch to terminals <DOWN> and <COM>.

The operation:
1) When all linear actuators extend outward, if the limit switch is triggered, it will connect two terminals <UP> and <COM>, then all linear actuators will stop automatically.
2) When all linear actuators inward retract, if the limit switch is triggered, it will connect two terminals <DOWN> and <COM>, then all linear actuators will stop automatically.

1) The controller can memorize total three stroke positions, and each button memorizes one stroke position.
2) First operate two linear actuators to the first suitable stroke position that you need to store, then press and hold the button 1 of the control handle for about 5-6 seconds, the stroke value on the LED display will flash twice. This means that the current stroke position is already stored in button 1.
3) You can continue to store the other two stroke positions into the button 2 and 3 by following the operation above.

When the LED display on the control handle shows the fault code, you need to reset the system as follows.
Reset operation: Press and hold the <R> button of the control handle until all linear actuators are reset to the bottom, and the LED display on the control handle shows "00.1", then release the <R> button.

The control handle is equipped with an LED display. When an error occurs in the operation of the system, the error code will be shown on the display, the error code and its meaning are as follows.
E01: The linear actuators encounter resistance during movement and need to retract the linear actuators, then the error code is automatically eliminated.
E02: The linear actuators are not synchronized, and need to perform a reset operation.
E03: The input power supply voltage is too low, please check the power supply voltage or replace with a suitable power supply.
E04: The table is tilted, the linear actuators stop, and need to perform a reset operation.
E05: Linear actuator 1 overload, check if the load is too large.
E06: Linear actuator 2 overload, check if the load is too large.
E09: The total current of the power supply is overcurrent, check if the total load is overloaded.
E10: Hall signal of linear actuator 1 is abnormal, check whether the connection cable from linear actuator to controller is reliable, replace the linear actuator 1 and connection cable, and check whether the linear actuator is stuck, then reset the system.
E11: Hall signal of linear actuator 2 is abnormal, check whether the connection cable from linear actuator to controller is reliable, replace the linear actuator 2 and connection cable, and check whether the linear actuator is stuck, then reset the system.
E14: The linear actuators are overheated and need to rest for a period of time, then the error code is automatically eliminated.
E16: The linear actuators suddenly lose power during operation and need to perform a reset operation.

Notice: We have paired the remote control to the controller before leaving the factory. If you want to pair more remote controls, please follow the following steps.
1) You need to open the controller case, then you can see a small RF receiver module and there is a small learning button on the module.
2) Press the learning button on the receiver module for 1-2 seconds, signal LED on the receiver module turns on, this indicates that the controller enters the learning status.
3) Press any one button on the remote control, if signal LED goes off, this indicates that the pairing is successful.
4) The controller can learn several remote controls with different codes.

We have paired the remote control to the controller, if you don’t want the controller to work with the remote control, you can delete all remote controls codes stored in the controller.
Operation: Quickly and continuously press the learning button on the receiver module 8 times, then release the learning button, the signal LED on the receiver module flashes 8 times and then goes off, this indicates that all stored codes have been deleted successfully.
