Package Include:
1 x Linear Actuator A
1 x Receiver: S1FC-DC
1 x Transmitter: CP-3

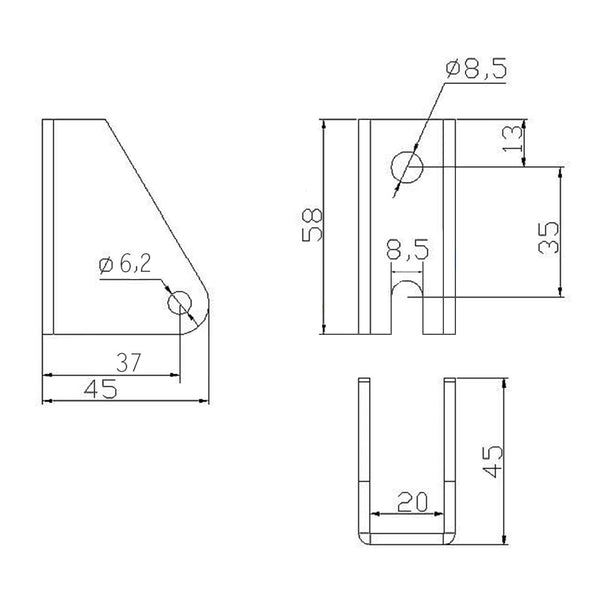

2 x Fixing Brackets A
1 x User manual

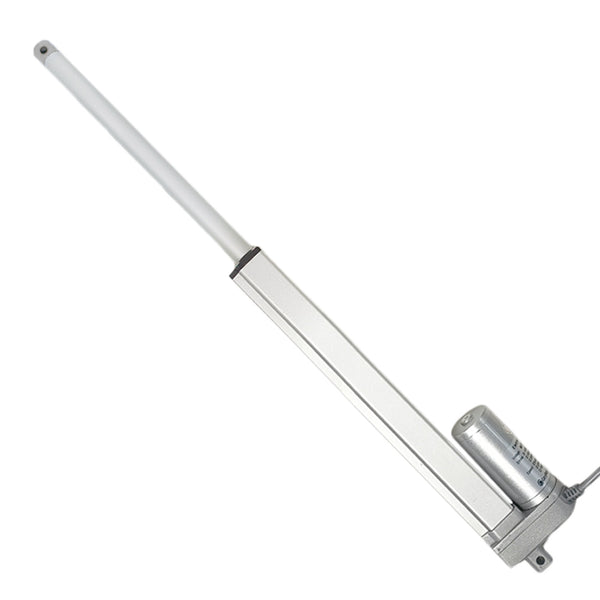

The information for electric linear actuator:
Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments.
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs.
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1500 mm
We can customize any stroke length from 10mm to 1500mm, such as 380mm, 750mm, 1250mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Built-in limit switch signal output is optional.
Built-in potentiometer is optional.
Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2, 3 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

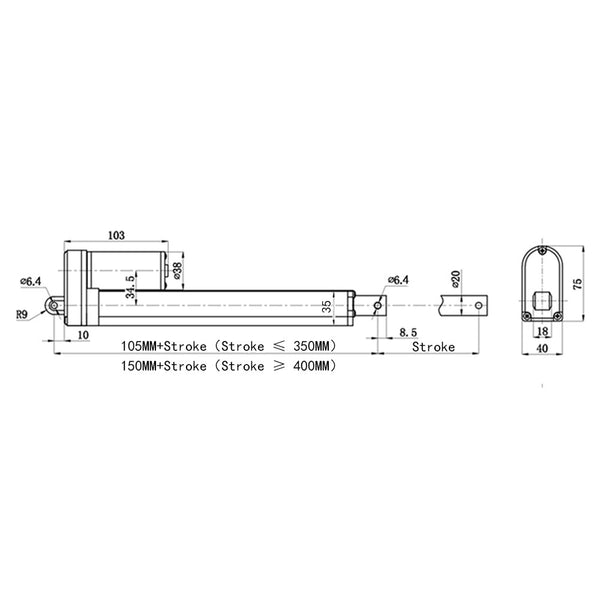

Specifications:
Optional working voltage: Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the most commonly used working voltage.
Stroke range: 0.4 ~ 60 inches or 10 ~ 1500 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power the linear actuator.
Shaft diameter: 20mm
Mounting holes diameter: 6mm [0.236 in]
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization.
Duty cycle: 20%, max 5mins continuous use
Service life: approx. 25,000 cycles
Power cable: two-core wire for normal linear actuators; five-core wire for linear actuators with built-in potentiometers; six-core wire for linear actuators with built-in Hall sensors; four-core, five-core or six-core wire for linear actuators with built-in limit switch signal outputs.
Cable length 500±10%mm [20 in], the length can also be customized according to your specific needs.
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65
Different no-load speeds and corresponding maximum thrust:
No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
5mm/s | 2.5mm/s | 2000N / 200 kg / 450 lbs | 2200N / 220 kg / 490 lbs |
10mm/s | 5mm/s | 1000N / 100 kg / 200 lbs | 1100N / 110 kg / 250 lbs |
15mm/s | 7.5mm/s | 800N / 80 kg / 180 lbs | 900N / 90 kg / 200 lbs |
20mm/s | 10mm/s | 700N / 70 kg / 160 lbs | 800N / 80 kg / 180 lbs |
30mm/s | 15mm/s | 500N / 50 kg / 110 lbs | 600N / 60 kg / 130 lbs |
50mm/s | 25mm/s | 300N / 30 kg / 60 lbs | 350N / 35 kg / 80 lbs |
100mm/s | 50mm/s | 150N / 15 kg / 30 lbs | 100N / 10 kg / 20 lbs |
160mm/s | 80mm/s | 100N / 10 kg / 20 lbs | 50N / 5 kg / 10 lbs |
Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.
Wireless remote control information:
Application:
This receiver is a wireless controller for DC motor or linear actuator, it and the transmitter form a wireless transmitter receiver system. If you connect a DC motor to this receiver, you can operate the motor to rotate in positive or reversal direction by the remote control. If you connect a DC linear actuator to this receiver, you can operate the linear actuator to extend or retract by the remote control. You can connect two limit switches to the receiver and use them to stop the motor or the linear actuator. You also can connect a manual switch to the receiver and use them to control the motor or the linear actuator.
Features:
Wireless control, easy to install.
Suitable for DC motor or linear actuator.
DC 9~36V operating voltage range.
Two working modes.
You can operate the motor to rotate in positive or reversal direction by using the buttons in the receiver or by the transmitter.
You can operate the linear actuator to extend or retract by using the buttons in the receiver or by the transmitter.
With three manual buttons: You can control the motor or linear actuator by manual buttons.
With limit control terminals: You can connect sensors, limit switches or external devices to stop the motor or the linear actuator.
With wired control terminals: You can connect manual switches to control the motor or linear actuator.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse power protection and over current protection built in.
The receiver only works with the selected transmitter which is matched to the receiver.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

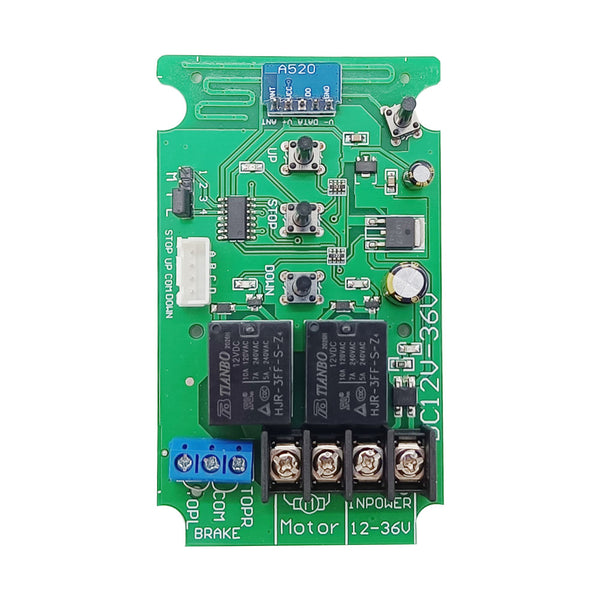

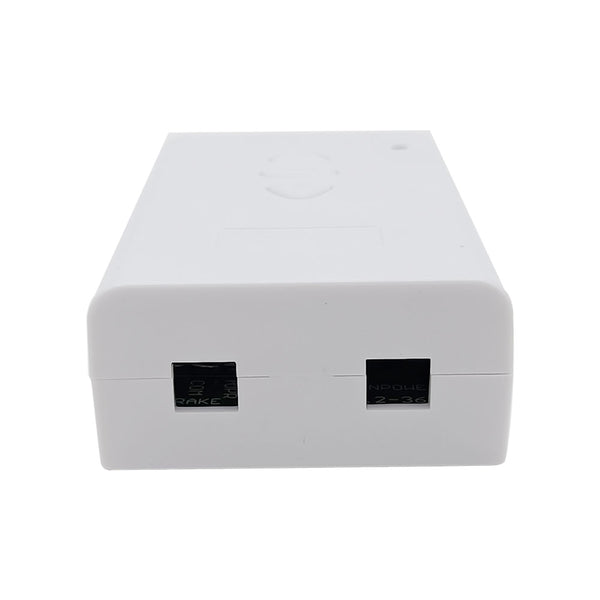

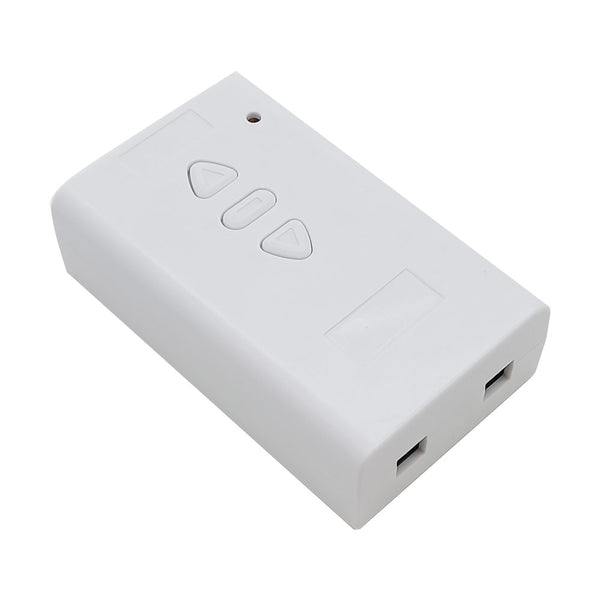

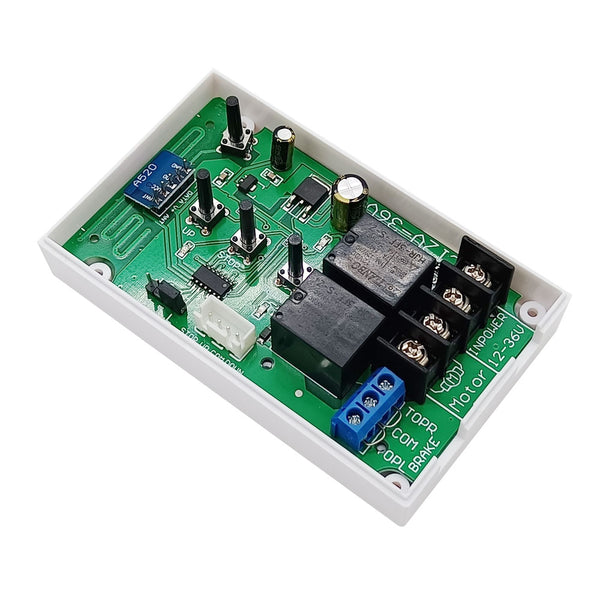

Receiver Parameters:
Model: S1FC-DC
Operating Voltage: 9~36 VDC
Output Voltage: 9~36 VDC same as input voltage
Working Frequency: 433.92 MHz
Channel: 1 CH, can work with 1 DC motor or 1 linear actuator
Quiescent Current: ≤6mA
Rated Current: 10A, so linear actuator or motor's maximum starting current cannot exceed 10A.
Wire range for the terminals: 22-14 AWG
2 Selectable Modes: Interlocking, Momentary
Operating Temperature: -20°C ~ +70°C
Case Size: 100 x 60 x 30 mm (4.0 x 2.4 x 1.2 inches)
Transmitter Parameters:
Model No: CP-3
Channel/Button: 3
Button Symbol:▲▇▼
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Standby current: 4uA
Operating Current: 14mA
Operating Frequency: 433Mhz
Transmitting Distance: 500m / 1500ft (theoretically)
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 92mm x 40mm x 15mm
Matching Transmitters:
This receiver can work with different transmitters, such as model CWC-3L (waterproof, 50 Meter / 150 feet), C-2-2 or C-3-2 (100 Meter / 300 feet), CP-2 or CP-3 (500 Meter / 1500 feet), CV-2-2 (500 Meter / 1500 feet), CG-3 (500 Meter / 1500 feet) or CB-3-2 (1000 Meter / 3000 feet).
1) When you set the receiver in Momentary mode, it should work with two button transmitter, such as model CP-2, C-2-2 or CV-2-2.
2) When you set the receiver in Interlocking mode, it should work with three or four buttons transmitter, such as model CWC-3L, C-3-2, CP-3, CG-3 or CB-3-2.
Working Range:
This receiver and different transmitters form a complete set, which can achieve different working distances. For example, when it and the transmitter CP-3 form a complete set, the maximum working distance may reach 500 meters in an open area. When it and the transmitter CB-3-2 form a complete set, the maximum working distance may reach 1000 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
The receiver equipped with an external antenna has a larger working range than the receiver equipped with an internal antenna.
Usage:
The receiver can be used to control DC 12V / 24V motor or linear actuator.
Wiring:
If you want to control a DC 12V / 24V motor or linear actuator, do as following:
1) Connect the positive pole of DC power supply to terminal <+> of Input, and connect the negative pole of DC power supply to terminal <-> of Input.
2) Connect two wires of motor or linear actuator to terminals <Motor>, and you can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.
Setting different working modes:
The receiver will be set in Interlocking mode before leaving the factory, if you require momentary mode, please follow the following steps.
Note: Need to restart the receiver after changing the working mode.
1) Setting Interlocking mode: Turn the mode toggle switch in the receiver to position L.
The operation by the transmitter, such as CP-3:
Press the button ▲ on the transmitter: Motor rotates in positive direction, or linear actuator extends outward.
Press the button ▼ on the transmitter: Motor rotates in reversal direction, or linear actuator inward retracts.
Press the button ■ on the transmitter: Motor or linear actuator stops.
The operation by the receiver:
Press the button ▲ on the receiver: Motor rotates in positive direction, or linear actuator extends outward.
Press the button ▼ on the receiver: Motor rotates in reversal direction, or linear actuator inward retracts.
Press the button ■ on the receiver: Motor or linear actuator stops.
2) Setting Momentary mode: Turn the mode toggle switch in the receiver to position M.
The operation by the transmitter, such as CP-3:
Press and hold the button ▲ on the transmitter: Motor rotates in positive direction, or linear actuator extends outward.
Release the button ▲: Motor or linear actuator stops.
Press and hold the button ▼ on the transmitter: Motor rotates in reversal direction, or linear actuator inward retracts.
Release the button ▼: Motor or linear actuator stops.
The operation by the receiver:
Press and hold the button ▲ on the receiver: Motor rotates in positive direction, or linear actuator extends outward.
Release the button ▲: Motor or linear actuator stops.
Press and hold the button ▼ on the receiver: Motor rotates in reversal direction, or linear actuator inward retracts.
Release the button ▼: Motor or linear actuator stops.
Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally closed contact), such as sensors, limit switches to limit terminals, then use them to stop the motor or the linear actuator.
For example, you can connect a normally closed limit switch to terminals <TOPR> and <COM>, and connect another normally closed limit switch to terminals <TOPL> and <COM>.
When motor rotates in positive direction, or linear actuator extends outward, if disconnect two terminals <TOPR> and <COM>, the motor or linear actuator will stop automatically.
When motor rotates in reversal direction, or linear actuator inward retracts, if disconnect two terminals <TOPL> and <COM>, the motor or linear actuator will stop automatically.
Wired control terminals:
The receiver has wired control terminals, and you can connect external devices (with normally open contact), such as manual switches to wired control terminals, then use them to stop the motor or the linear actuator.
For example, you can connect three button manual switches to wired control terminals <STOP>, <UP>, <COM> and <DOWN> according to following wiring diagram.
1) In Interlocking mode:
When connect two terminals <UP> and <COM>, the motor rotates in positive direction, or the linear actuator extends outward. And when connect two terminals <STOP> and <COM>, motor or linear actuator stops.
When connect two terminals <DOWN> and <COM>, the motor rotates reversal direction, or the linear actuator inward retracts. And when connect two terminals <STOP> and <COM>, motor or linear actuator stops.
2) In Momentary mode:
When connect two terminals <UP> and <COM>, the motor rotates in positive direction, or the linear actuator extends outward. And when disconnect two terminals <UP> and <COM>, motor or linear actuator stops.
When connect two terminals <DOWN> and <COM>, the motor rotates reversal direction, or the linear actuator inward retracts. And when disconnect two terminals <DOWN> and <COM>, motor or linear actuator stops.
Note:

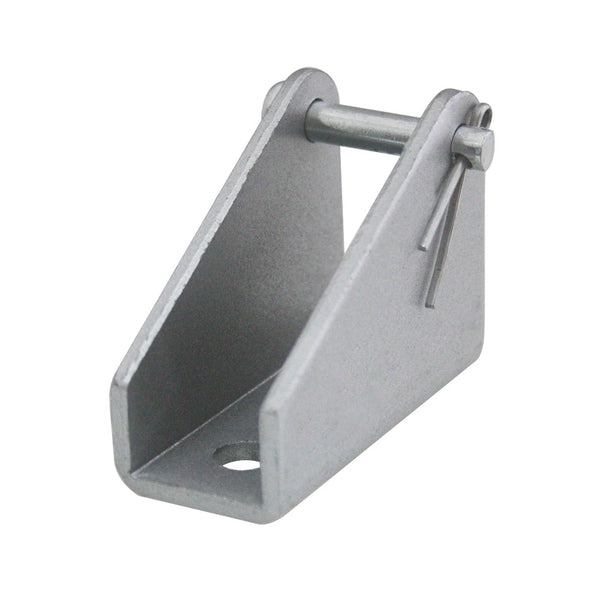

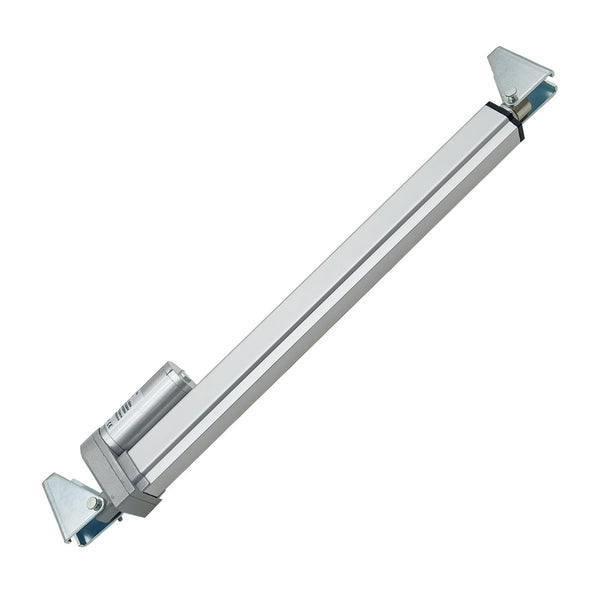

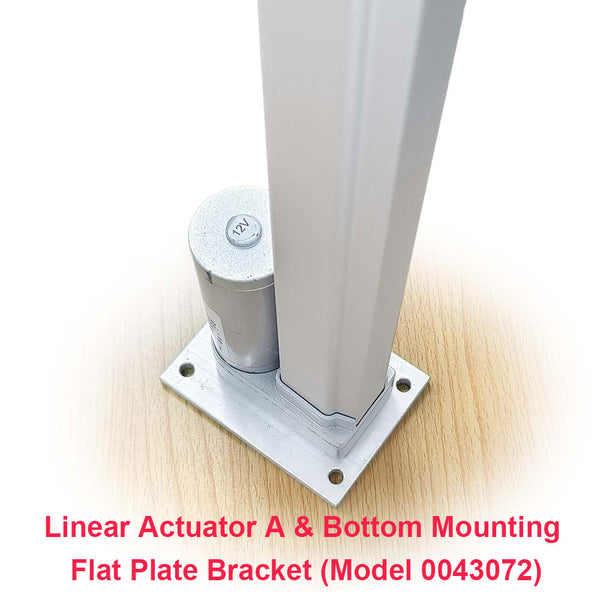

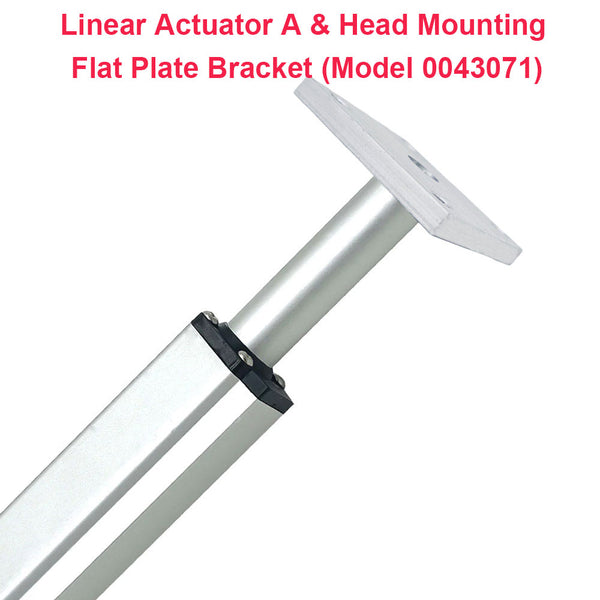

1. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator. This kit contains two regular fixed mounting Brackets A . If you want to convert the linear actuator to a vertical linear actuator, you can purchase the Fixed Mount Flat Base Model 0043070 , Head Fixed Mount Flat Bracket Model 0043071 or Bottom Fixed Mount Flat Bracket Model 0043072 for vertical mounting linear actuator.
2. You need to use a DC12V/6A or DC24V/3A switching power supply to power this kit. This kit does not contain this power supply, please buy it from the drop down menu.
Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
