Industrial Linear Actuator 8 Inch 200MM Adjustable Stroke with Electronic Magnetic Switch (Model 0041513-3)

Regular price $120.75

Shipping calculated at checkout.

Package Include:
1 x Linear actuator B3
1 x Magnetic switch controller
2 x Electronic magnetic switch sensor
1 x User manual

This is a 200mm adjustable stroke industrial linear actuator. It is equipped with two external magnetic switches that can slide freely, and by adjusting the position of these two magnetic switches, the linear actuator can be controlled to work within the set stroke length. For example, for a linear actuator with a stroke of 200mm, you can set it to move within a stroke range of 50mm to 180mm.

It is widely used in doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can also replace hydraulic and pneumatic products to save power consumption.

Key Features:

  • High-quality products and high-quality services
  • High strength wear-resistant gear
  • Aluminum alloy telescopic tube and outer tube, good corrosion resistant
  • Heavy duty design, high-power DC motor
  • Strong thrust, up to 6000 N / 600 kg / 1300 lbs at 3.5 mm/s
  • Multiple speed options ranging from 3.5 mm/second to 38 mm/second
  • Multiple stroke options, from 10 mm to 2000 mm, any stroke within this range can be customized (e.g. 770 mm, 1250 mm, 1850 mm)
  • Advanced waterproof and dustproof technology
  • Low power consumption and low noise
  • Equipped with two external magnetic switches that can slide freely, by adjusting the position of these two magnetic switches, the linear actuator can be controlled to work within the set stroke length
  • External magnetic switches need to be used in conjunction with the magnetic switch controller
  • Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position
  • With auto-locking capability to hold load position after stopping, and no power supply is required
  • Maintenance-free

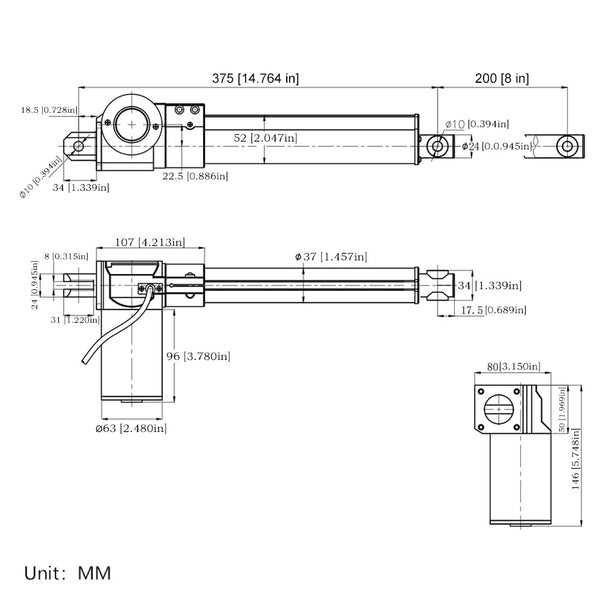

Stroke and Length (Model 0041513-3)
Parameter Value
Stroke 200mm
Retraction Length 375mm (center distance between two mounting holes when the linear actuator is fully retracted)
Extension Length 575mm (center distance between two mounting holes when the linear actuator is fully extended)

The linear actuator has two built-in limit switches, When the linear actuator is fully retracted or fully extended, it will stop automatically.

We can adjust the position of the built-in limit switches during production to meet customer-specified stroke and retraction lengths. For example, specify a stroke of 180mm and a retraction length of 405mm.

Note 1: The specified retraction length must be greater than the original length. For example, a specified retraction length of 405mm is greater than the original length of 375mm.

Note 2: The specified stroke must be less than the original stroke. For example, a specified stroke of 180mm is less than the original stroke of 200mm.

Product Specifications
Parameter Value
Working Voltage DC 12V, DC 24V (24V most commonly used)
Stroke 8 inches / 200 mm
Optional Speed (No-load) 3.5±0.5mm/s, 5±1mm/s, 7±1.5mm/s, 9±2mm/s, 14±3mm/s, 18±4mm/s, 28±6mm/s, 38±8mm/s (The actual working speed will gradually slow down as the load increases.)
Max Load Capacity 6000 N / 600 kg / 1300 lbs at 3.5mm/s (Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.)
No-load Current 1~2A at 12V or 0.5~1A at 24V
Full Load Current 6~12A at 12V or 3~6A at 24V
Recommended Power Supply 12V/10A or 24V/5A
Shaft Diameter 24mm [0.945 in]
Front / Rear Connector Mounting Hole Diameter 10mm [0.393in]
Housing Material Aluminum Alloy
Stroke Rod Material Aluminum Alloy
Gear Material Polymer Plastic
Motor Type Brushed DC Motor
Duty Cycle 10%, max 3mins continuous use
Service Life approx. 25,000 cycles
Power Cable Ordinary Two-core Wire
Linear Actuator Cable Length 1000±10%mm [40 in] (The length can also be customized according to your specific needs.)
Certifications CE
Environment Temperature -26℃ to 85℃
Operating Noise about 42dB~46dB (Linear actuators with different parameters will have different noise levels.)
IP Rating IP rating: IP54, not suitable for outdoor use
Different Speeds and Corresponding Maximum Thrust
No-load Speed Full load Speed Maximum Thrust Self-locking Force
3.5mm/s 3mm/s 6000 N / 600 kg / 1300 lbs 6500 N / 650 kg / 1400 lbs
5mm/s 3.5mm/s 5500 N / 550 kg / 1200 lbs 6000 N / 600 kg / 1300 lbs
7mm/s 5mm/s 3500 N / 350 kg / 770 lbs 3500 N / 350 kg / 770 lbs
9mm/s 7mm/s 3000 N / 300 kg / 660 lbs 3000 N / 300 kg / 660 lbs
14mm/s 10mm/s 2000 N / 200 kg / 450 lbs 1000 N / 100 kg / 200 lbs
18mm/s 13mm/s 1500 N / 150 kg / 330 lbs 800 N / 80 kg / 180 lbs
28mm/s 20mm/s 1200 N / 120 kg / 260 lbs 500 N / 50 kg / 110 lbs
38mm/s 26mm/s 1000 N / 100 kg / 200 lbs 300 N / 30 kg / 60 lbs

Note:

1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.

2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.

3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.

4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.

5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.

6. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

Wiring

You need to connect a manual switch or a remote switch to operate the linear actuator.
1) Connect two wires of DC power supply to two terminals <Power> of the manual switch or remote switch.
2) Connect two terminals <Power> of the magnetic switch controller to two terminals <Motor> of the manual switch or remote switch.
3) Connect two wires of linear actuator to two terminals <Motor> of the magnetic switch controller, and you can exchange these two wires to change the moving direction of linear actuator.
4) Connecting two wires of a magnetic switch to two terminals <Magnetic Switch 1> of the magnetic switch controller and connect two wires of another magnetic switch to two terminals <Magnetic Switch 2> of the magnetic switch controller.
Note: The two wires of the magnetic switch cannot be connected reversely, please follow the connection diagram below for specific wiring.

Operation

1.The operation by the manual switch:
Press and hold the button <UP> on the manual switch: linear actuator extends outward, when it moves to the position of a magnetic switch, the linear actuator will automatically stop.
Press and hold the button <DOWN> on the manual switch: linear actuator inward retracts, when it moves to the position of another magnetic switch, the linear actuator will automatically stop.

2. The operation by the remote switch:
Press and hold the button ▲ on the remote: linear actuator extends outward, when it moves to the position of a magnetic switch, the linear actuator will automatically stop.
Press and hold the button ▼ on the remote: linear actuator inward retracts, when it moves to the position of another magnetic switch, the linear actuator will automatically stop.

How to Adjust Magnetic Switch Position

You can loosen the fixing straps of the magnetic switch, then move the magnetic switch to a suitable position and tighten the fixing straps again.
Note: If the positions of the two magnetic switches are reversed, please swap their positions.

Fixed Bracket and Control Accessories

1. This linear actuator does not contain fixed mounting brackets, please click here to purchase. (Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.)

2. Compatible Mounting Brackets: Bracket B and Bracket D .

3. This linear actuator is also compatible with two flat mounting brackets: Head Fixed Mount Flat Bracket (Model 0043073) and Bottom Fixed Mount Flat Bracket (Model 0043074) .

4. The front connector style of the linear actuator can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization. If you need customization, please click here to purchase the customized option.

5. Linear actuator fisheye connector can be customized and used in conjunction with the internal thread connector. If you need customization, please click here to purchase the customized option.

6. The orientation of the front connector of the linear actuator is default; we can rotate it 90 degrees during the production according to the customer's needs. If you need to rotate the front connector 90 degrees, please click here to purchase the rotation option.

7. If you need a power supply to power linear actuator, please click here to purchase.

8. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.

Production Time & Return or Exchange Policy

The linear actuators are customized and not in stock, and we need to spend 3~7 working days to produce them according to the specified parameters in your order, so that we don't accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.
