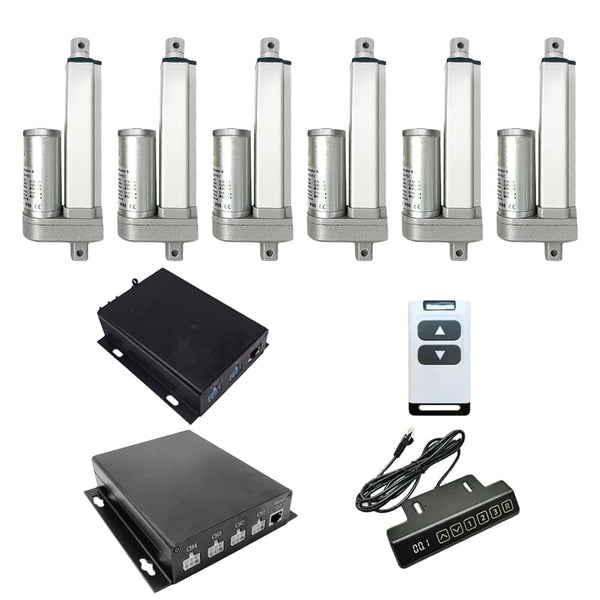

12V 24V 2000N Linear Actuator A One-Control-Six Synchronous Control Kit (Model 0043101)

• High-quality products and high-quality services
• New housing design, high working stability
• Metal housing, able to work in very harsh environments
• Metal gearbox, high strength wear-resistant gear
• Aluminum alloy telescopic tube and outer tube, good corrosion resistant
• Heavy duty design, high-power DC motor
• Strong thrust, up to 2000N / 200kg / 450lbs
• Multiple speed options, from 5 mm/second to 160 mm/second
• Multiple stroke options, from 10 mm to 1500 mm, any stroke within this range can be customized (e.g. 380mm, 750mm, 1250mm)
• Advanced waterproof and dustproof technology
• Low power consumption and low noise
• Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position
• Built-in Hall sensor, so you can use the synchronous controller to operate 2, 4 or more linear actuators fully synchronously
• Manual override is optional, allowing you to extend or retract the telescopic rod of the linear actuator with hand tools
• The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization
• The orientation of the front connector is default; we can rotate it 90 degrees during the production according to the customer's needs
• With auto-locking capability to hold load position after stopping, and no power supply is required
• Maintenance-free

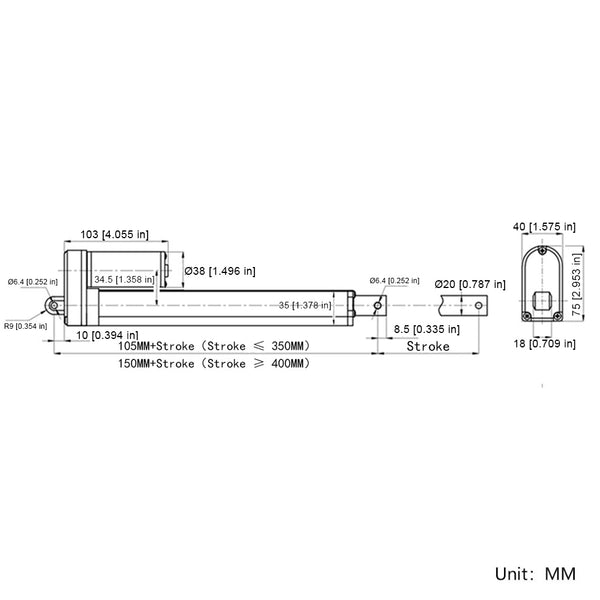

Note:

1. The above data is the maximum load capacity that can be obtained when each linear actuator runs in the vertical direction. The maximum load capacity of the entire synchronous system is the sum of the maximum load capacities of the six linear actuators. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.

2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.

3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.

4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.

5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.

6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.

7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

If you want to use multiple linear actuators to raise and lower an equipment, for example two, four or more electric actuators. Since the high-speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.

If you want to use a synchronization controller to operate two or more linear actuators fully synchronously, you will need to add built-in Hall effect sensors for each linear actuator. And when you purchase Hall effect sensors along with linear actuators, we will install Hall effect sensors in the linear actuators during production for you. When two or more linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.

• It can operate six electric linear actuators A to run completely synchronously
• Wired control via a touch control handle
• Wireless control via a remote
• If use an external antenna, the controller has a farther working range
• The LED display on the control handle will display the stroke position in real time
• Six touch function buttons: ▲, ▼, 1, 2, 3 and R (Buttons ▲ and ▼ are used to operate the linear actuators extension and retraction; Buttons 1, 2 and 3 are used to automatically operate the linear actuators to three pre-memorized positions; Button R is the reset button and is used to reset the system in case of an error)
• Two selectable external control functions: manual switch function or limit switch function, please select an external control function you need when ordering
• With reset button
• When linear actuators move close to the end position, they will automatically slow down to protect themselves
• When linear actuators are fully retracted, they will retain 1MM of travel to protect themselves

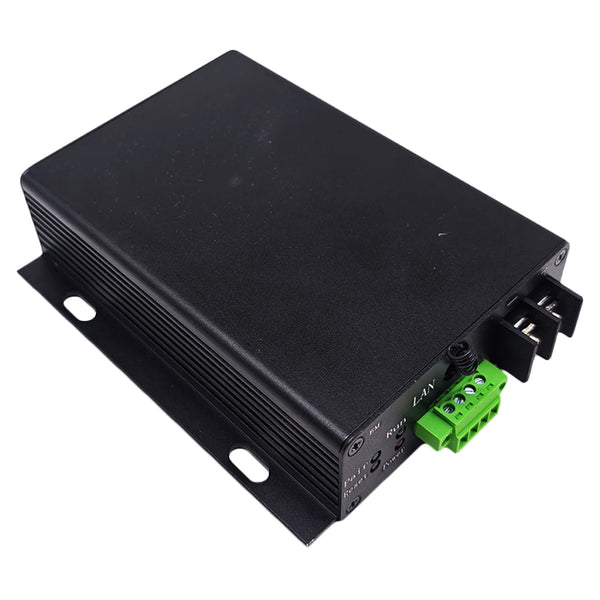

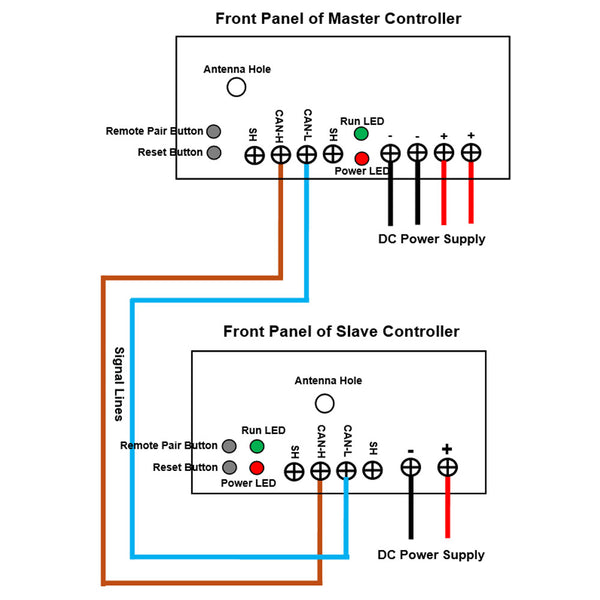

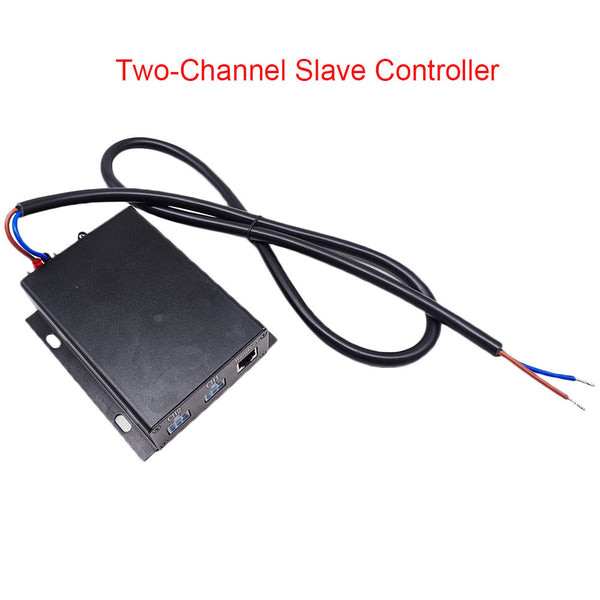

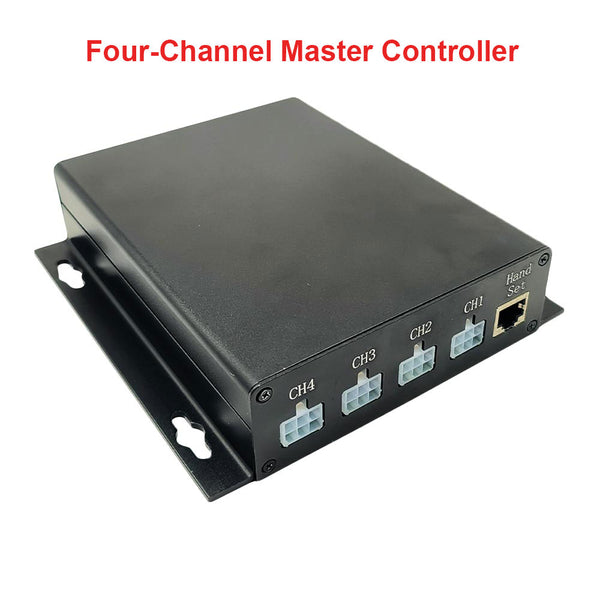

1) Use signal lines to connect the CAN-L and CAN-H terminals of the master controller to the CAN-L and CAN-H terminals of the slave controller.

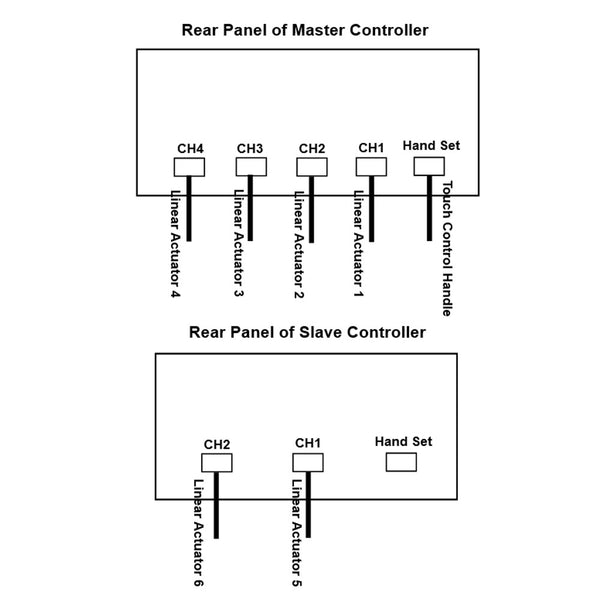

2) Plug the touch control handle into the Hand Set port of the master controller.

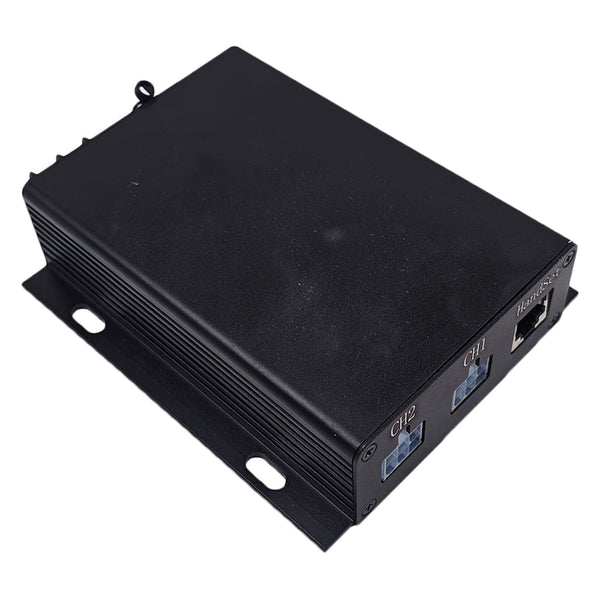

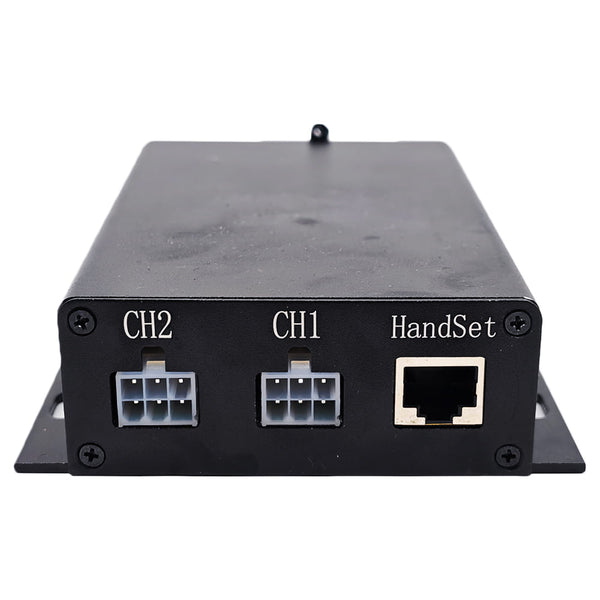

2) Plug four linear actuators into the ports CH1, CH2, CH3 and CH4 of the master controller, and the other two linear actuators into ports CH1 and CH2 of the slave controller.

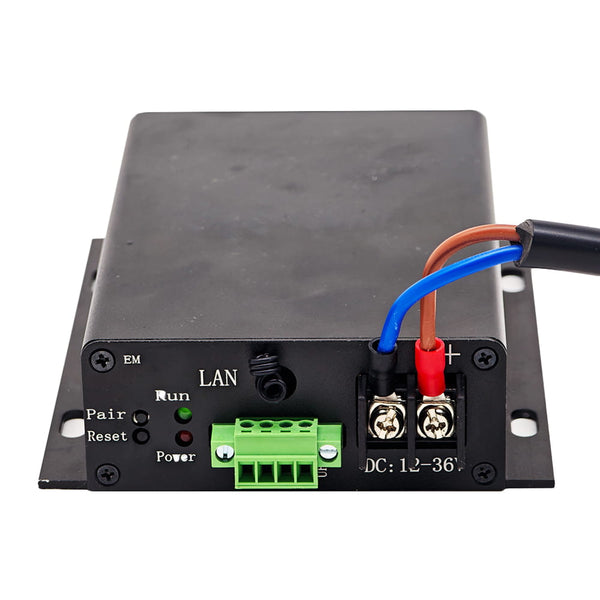

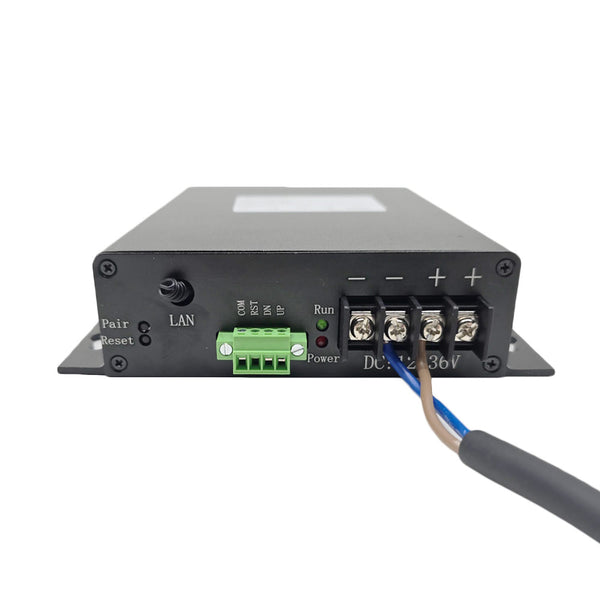

4) Connect the positive pole of DC power supply to the terminal <+> of the two controllers, and connect the negative pole of DC power supply to the terminal <-> of the two controllers.
CAUTION: Do not connect AC power directly to the two controllers!

1. Operation via the touch control handle:
Attention: The handle is operated by touch control. The touch sensitivity can be automatically calibrated when powered on for the first time. Hands are prohibited from touching the handle when powered on to prevent interference with the sensitivity calibration and affect the operating sensitivity.

1) Press and hold the ▲ button of the control handle, all linear actuators extend outward at the same time; Release the button, all linear actuators stop at the same time.
2) Press and hold the ▼ button of the control handle, all linear actuators retract inward at the same time; Release the button, all linear actuators stop at the same time.
3) Press any button 1, 2, or 3 on the control handle, all linear actuators will automatically move to the position memorized by that button and then automatically stop.
Note: You will need to first memorize three positions into these three buttons.
4) The LED display on the control handle will display the stroke position data in real time. For example, the number 03.5 means that the linear actuators have reached the stroke position of 35MM.

2. Operation via the remote control: (The remote control of the synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering)
2.1 Momentary Control Mode:
1) Press and hold the button ▲ of the remote control, all linear actuators extend out at the same time; Release the button, all linear actuators stop at the same time.
2) Press and hold the button ▼ of the remote control, all linear actuators retract inward at the same time; Release the button, all linear actuators stop at the same time.

2.2 Interlocking Control Mode:
1) Press the button ▲ of the remote control, all linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically.
2) Press the button ▼ of the remote control, all linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically.
3) During operation, you can also press any button of the remote control to stop all linear actuators at the same time.

1) The controller can memorize total three stroke positions, and each button memorizes one stroke position.
2) First operate six linear actuators to the first suitable stroke position that you need to store, then press and hold the button 1 of the control handle for about 5-6 seconds, the stroke value on the LED display will flash twice. This means that the current stroke position is already stored in button 1.
3) You can continue to store the other two stroke positions into the button 2 and 3 by following the operation above.

When the LED display on the control handle shows the fault code, you need to reset the system as follows.
Reset operation: Press and hold the <R> button of the control handle or press and hold the <Reset> button on the controller, or press and hold the ▲ and ▼ buttons on the remote control at the same time, until all linear actuators are reset to the bottom, and the LED display on the control handle shows "00.0", then release the button.

Notice: We have paired the remote control to the controller before leaving the factory. If you want to pair more remote controls, please follow the following steps.
1) Press and hold the pairing button on the master controller for 8-9 seconds, until the green light flashes quickly, this indicates that the controller enters the learning status.
2) Press any one button on the remote control, this indicates that the pairing is successful.
3) The controller can learn several remote controls with different codes.

We have paired the remote control to the controller, if you don’t want the controller to work with the remote control, you can delete all remote controls codes stored in the controller.
Operation:
1) You need to open the master controller case, then you can see a small RF receiver module and there is a small learning button on the module.
2) Quickly and continuously press the learning button on the receiver module 8 times, then release the learning button, the signal LED on the receiver module flashes 8 times and then goes off, this indicates that all stored codes have been deleted successfully.
