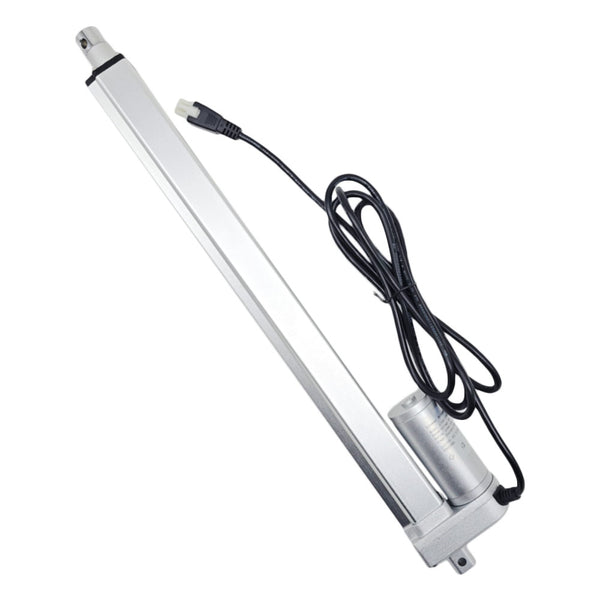

12V 24V 2000N Linear Actuator A One-Control-Three Synchronous Control Kit (Model 0043060)

• High-quality products and high-quality services
• New housing design, high working stability
• Metal housing, able to work in very harsh environments
• Metal gearbox, high strength wear-resistant gear
• Aluminum alloy telescopic tube and outer tube, good corrosion resistant
• Heavy duty design, high-power DC motor
• Strong thrust, up to 2000N / 200kg / 450lbs
• Multiple speed options, from 5 mm/second to 160 mm/second
• Multiple stroke options, from 10 mm to 1500 mm
• Advanced waterproof and dustproof technology
• Low power consumption and low noise
• Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position

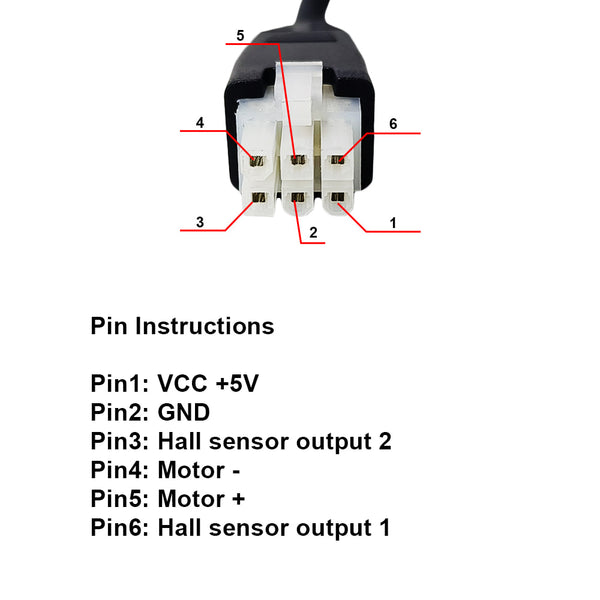

• Built-in Hall sensor, so you can use the synchronous controller to operate 2, 4 or more linear actuators fully synchronously
• Manual override is optional, allowing you to extend or retract the telescopic rod of the linear actuator with hand tools
• The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization
• The orientation of the front connector is default; we can rotate it 90 degrees during the production according to the customer's needs
• With auto-locking capability to hold load position after stopping, and no power supply is required
• Maintenance-free

Note:

1. The above data is the maximum load capacity that can be obtained when each linear actuator runs in the vertical direction. The maximum load capacity of the entire synchronous system is the sum of the maximum load capacities of the three linear actuators. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.

2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.

3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.

4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.

5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.

6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.

7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

The linear actuator has two built-in limit switches, When the linear actuator is fully retracted or fully extended, it will stop automatically.
We can adjust the position of the built-in limit switches during production to meet customer-specified stroke and retraction lengths.

Example for a linear actuator with a 400 mm stroke:
Retraction Length: 550 mm (center distance between two mounting holes when the linear actuator is fully retracted)
Extension Length: 950 mm (center distance between two mounting holes when the linear actuator is fully extended)

Custom Rules:
1) The specified stroke must be less than the standard stroke of the ordered actuator. For example, a specified stroke of 370 mm is less than the standard stroke of the ordered actuator (400 mm). In this case, the retraction length will be reduced by an equivalent value, resulting in a retraction length of 520 mm. Of course, you can also choose to retain the original standard retraction length of 550 mm.
2) The specified retraction length must be less than the standard retraction length of the ordered actuator. For example, a specified retraction length of 530 mm is less than the standard retraction length of the ordered actuator (550 mm). In this case, the stroke must also be reduced by an equivalent value, resulting in an effective stroke of 380 mm.

Note: This is a three linear actuator synchronous control kit. The quantity of customization options for installed length and stroke length ordered must match the quantity of actuators, i.e. three.

If you want to use multiple linear actuators to raise and lower an equipment, for example two, four or more electric actuators. Since the high-speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.

If you want to use a synchronization controller to operate two or more linear actuators fully synchronously, you will need to add built-in Hall effect sensors for each linear actuator. And when you purchase Hall effect sensors along with linear actuators, we will install Hall effect sensors in the linear actuators during production for you. When two or more linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.

• It can operate three electric linear actuators A to run completely synchronously
• Wired control via a touch control handle
• Wireless control via a remote
• If use an external antenna, the controller has a farther working range
• The LED display on the control handle will display the stroke position in real time
• Six touch function buttons: ▲, ▼, 1, 2, 3 and R
• Buttons ▲ and ▼ are used to operate the linear actuators extension and retraction
• Buttons 1, 2 and 3 are used to automatically operate the linear actuators to three pre-memorized positions
• Button R is the reset button and is used to reset the system in case of an error
• Two selectable external control functions: manual switch function or limit switch function, please select an external control function you need when ordering
• With a reset button and pairing button
• When linear actuators move close to the end position, they will automatically slow down to protect themselves
• When linear actuators are fully retracted, they will retain 1MM of travel to protect themselves

1) Plug the touch control handle into the port Hand Set of the controller.
2) Plug three linear actuators into the ports CH1, CH2 and CH3 of the controller.
3) Connect the positive pole of DC power supply to the terminal <+> of the controller, and connect the negative pole of DC power supply to the terminal <-> of the controller.

1. Operation via the touch control handle:
Attention: The handle is operated by touch control. The touch sensitivity can be automatically calibrated when powered on for the first time. Hands are prohibited from touching the handle when powered on to prevent interference with the sensitivity calibration and affect the operating sensitivity.

1) Press and hold the ▲ button of the control handle, all linear actuators extend outward at the same time; Release the button, all linear actuators stop at the same time.
2) Press and hold the ▼ button of the control handle, all linear actuators retract inward at the same time; Release the button, all linear actuators stop at the same time.
3) Press any button 1, 2, or 3 on the control handle, all linear actuators will automatically move to the position memorized by that button and then automatically stop.
Note: You will need to first memorize three positions into these three buttons.
4) The LED display on the control handle will display the stroke position data in real time. For example, the number 03.5 means that the linear actuators have reached the stroke position of 35MM.

2. Operation via remote control: (The remote control of the synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering.)
2.1 When the controller is operating in momentary control mode:
1) Press and hold the button ▲ of the remote control, all linear actuators extend out at the same time; Release the button, all linear actuators stop at the same time.
2) Press and hold the button ▼ of the remote control, all linear actuators retract inward at the same time; Release the button, all linear actuators stop at the same time.

2.2 When the controller is operating in interlocking control mode:
1) Press the button ▲ of the remote control, all linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically.
2) Press the button ▼ of the remote control, all linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically.
3) During operation, you can also press any button of the remote control to stop all linear actuators at the same time.

The external control terminals offer a choice of two functions: manual switch function or limit switch function. When you choose the manual switch function, you can connect one external manual switch (such as model 0040025) to operate the linear actuators. When you choose the limit switch function, you can connect two external limit switches (such as model 0010010) to automatically stop the linear actuators.

1. Manual switch function:
When you choose the manual switch function, you can connect one external manual switch (such as model 0040025) to this controller and then operate the linear actuators through it.
1) The manual switch has an UP button and a DOWN button, and each button has two normally open terminals 3 and 4.
2) Connect two terminals of the UP button to the terminals <UP> and <COM> on the controller, and connect two terminals of the DOWN button to the terminals <DOWN> and <COM> on the controller.

The operation:
1.1 Momentary Control Mode:
1) Press and hold the UP button of the manual switch, all linear actuators extend out at the same time; Release the button, all linear actuators stop at the same time.
2) Press and hold the DOWN button of the manual switch, all linear actuators retract inward at the same time; Release the button, all linear actuators stop at the same time.

1.2 Interlocking Control Mode:
1) Press the UP button of the manual switch, all linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically.
2) Press the DOWN button of the manual switch, all linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically.
3) During operation, you can also press any button of the manual switch to stop all linear actuators at the same time.

2. Limit switch function:
When you choose the limit switch function, you can connect two external limit switches with normally open contact (such as model 0010010) to this controller and then automatically stop the linear actuators through it.
1) You can connect two limit switches, each limit switch has two normally open terminals.
2) Connect two normally open terminals of a limit switch to terminals <UP> and <COM> on the controller, connect two normally open terminals of another limit switch to terminals <DOWN> and <COM> on the controller.

The operation:
1) When all linear actuators extend outward, if the limit switch is triggered, it will connect two terminals <UP> and <COM>, then all linear actuators will stop automatically.
2) When all linear actuators inward retract, if the limit switch is triggered, it will connect two terminals <DOWN> and <COM>, then all linear actuators will stop automatically.

1) The controller can memorize total three stroke positions, and each button memorizes one stroke position.
2) First operate three linear actuators to the first suitable stroke position that you need to store, then press and hold the button 1 of the control handle for about 5-6 seconds, the stroke value on the LED display will flash twice. This means that the current stroke position is already stored in button 1.
3) You can continue to store the other two stroke positions into the button 2 and 3 by following the operation above.

When the LED display on the control handle shows the fault code, you need to reset the system as follows.
Reset operation: Press and hold the <R> button of the control handle or press and hold the <Reset> button on the controller, or press and hold the ▲ and ▼ buttons on the remote control at the same time, until all linear actuators are reset to the bottom, and the LED display on the control handle shows "00.1", then release the button.
When you have selected a controller with a manual switch function, you can also reset by connecting the <RST> and <COM> terminals on the controller.
Specific Operation: Connect two terminals <RST> and <COM>, until all linear actuators are reset to the bottom, and the LED display on the control handle shows "00.1", then disconnect two terminals <RST> and <COM>.

The control handle is equipped with an LED display. When an error occurs in the operation of the system, the error code will be shown on the display, the error code and its meaning are as follows.
E01: The linear actuators encounter resistance during movement and need to retract the linear actuators, then the error code is automatically eliminated.
E02: The linear actuators are not synchronized, and need to perform a reset operation.
E03: The input power supply voltage is too low, please check the power supply voltage or replace with a suitable power supply.
E04: The table is tilted, the linear actuators stop, and need to perform a reset operation.
E05: Linear actuator 1 overload, check if the load is too large.
E06: Linear actuator 2 overload, check if the load is too large.
E07: Linear actuator 3 overload, check if the load is too large.
E09: The total current of the power supply is overcurrent, check if the total load is overloaded.
E10: Hall signal of linear actuator 1 is abnormal, check whether the connection cable from linear actuator to controller is reliable, replace the linear actuator 1 and connection cable, and check whether the linear actuator is stuck, then reset the system.
E11: Hall signal of linear actuator 2 is abnormal, check whether the connection cable from linear actuator to controller is reliable, replace the linear actuator 2 and connection cable, and check whether the linear actuator is stuck, then reset the system.
E12: Hall signal of linear actuator 3 is abnormal, check whether the connection cable from linear actuator to controller is reliable, replace the linear actuator 3 and connection cable, and check whether the linear actuator is stuck, then reset the system.
E14: The linear actuators are overheated and need to rest for a period of time, then the error code is automatically eliminated.
E16: The linear actuators suddenly lose power during operation and need to perform a reset operation.

Notice: We have paired the remote control to the controller before leaving the factory. If you want to pair more remote controls, please follow the following steps.
1) Press and hold the pairing button on the controller for 8-9 seconds, until the green light flashes quickly, this indicates that the controller enters the learning status.
2) Press any one button on the remote control, this indicates that the pairing is successful.
3) The controller can learn several remote controls with different codes.

We have paired the remote control to the controller, if you don’t want the controller to work with the remote control, you can delete all remote controls codes stored in the controller.
Operation:
1) You need to open the controller case, then you can see a small RF receiver module and there is a small learning button on the module.
2) Quickly and continuously press the learning button on the receiver module 8 times, then release the learning button, the signal LED on the receiver module flashes 8 times and then goes off, this indicates that all stored codes have been deleted successfully.
